The backhoe, a staple of construction and earthmoving, isn't a monolithic machine. Its versatility is amplified by a range of configurations, each tailored to specific applications and operational environments. Understanding the nuances of these different types is crucial for selecting the right equipment for a given task. This article provides a comprehensive technical overview of various backhoe types, exploring their design, features, and applications.
Fundamental Backhoe Classifications:
Backhoes can be broadly categorized based on their mounting configuration, size, and specific design features. These classifications often overlap, resulting in hybrid machines tailored to niche applications.

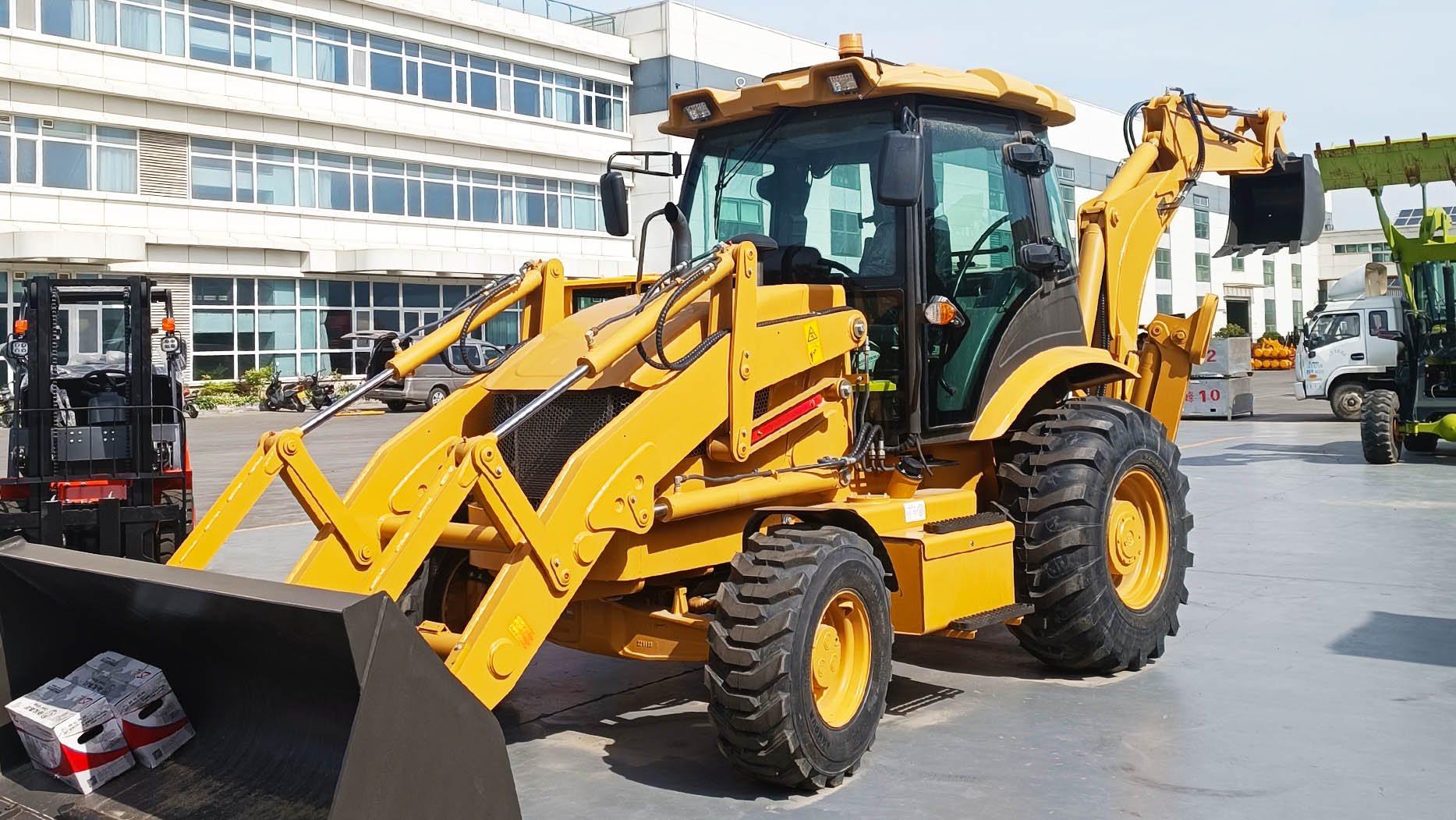

1. Tractor Loader Backhoes (TLBs):
Description: The most common type, TLBs combine a tractor unit, a front-end loader, and a rear-mounted backhoe. They are highly versatile, capable of digging, loading, and transporting materials.
Technical Features:
Typically wheeled, offering good mobility on paved surfaces.
Hydraulic systems power both the loader and backhoe attachments.
Often equipped with outriggers for stability during digging operations.
Engine power ranges widely, depending on size and intended use.
Transmissions can be manual, power shift, or hydrostatic.
Applications:
General construction, landscaping, utility work, and agricultural tasks.
Ideal for sites requiring a combination of digging and loading.
Popular for urban environments due to their maneuverability.
2. Mini Backhoes (Compact Backhoes):
Description: Smaller, more compact versions of TLBs, designed for confined spaces and lighter-duty tasks.
Technical Features:
Reduced size and weight, allowing access to tight areas.
Often mounted on skid steer loaders or compact tractors.
Hydraulic systems are scaled down, but still provide sufficient power for their intended applications.
Some models use tracks instead of wheels for improved traction.
Applications:
Residential construction, landscaping in small yards, and indoor demolition.
Utility work in narrow trenches or confined spaces.
Ideal for tasks requiring precision and maneuverability.
3. Skid Steer Backhoe Attachments:
Description: These are backhoe attachments designed to be mounted on skid steer loaders. They offer versatility by converting a skid steer into a digging machine.
Technical Features:
Powered by the skid steer's hydraulic system.
Quick-attach systems allow for easy installation and removal.
Compact design, suitable for tight spaces.
Digging depth and reach vary depending on the attachment and skid steer model.
Applications:
Landscaping, trenching, and light excavation work.
Ideal for contractors who already own a skid steer loader.
Offers flexibility and cost-effectiveness.
Description: Designed for agricultural applications, these backhoes are often mounted on farm tractors.
Technical Features:
Adapted to the tractor's hydraulic system and power take-off (PTO).
Often equipped with specialized buckets and attachments for agricultural tasks.
May include features like stabilizers and adjustable seats for operator comfort.
Applications:
Digging drainage ditches, irrigation channels, and post holes.
General farm maintenance and construction tasks.
Ideal for farmers who need a versatile digging machine.
5. Towable Backhoes:
Description: These are self-contained backhoe units that can be towed behind a vehicle.
Technical Features:
Independent engine and hydraulic system.
Wheeled design for easy towing.
Outriggers for stability during operation.
Typically smaller and lighter than TLBs.
Applications:
DIY projects, small construction jobs, and remote locations.
Ideal for homeowners and contractors who need a portable digging machine.
Can be used for rental businesses.
6. Industrial Backhoes:
Description: Heavy-duty backhoes designed for demanding industrial applications.
Technical Features:
Robust construction and high-capacity hydraulic systems.
Powerful engines and heavy-duty components.
Advanced control systems for precise operation.
Often Tracked instead of wheeled.
Applications:
Mining, quarrying, and large-scale construction projects.
Ideal for tasks requiring high digging force and material handling capacity.
7. Articulated Backhoes:
Description: Backhoes with an articulated frame, allowing for improved maneuverability and turning radius.
Technical Features:
Hinge joint in the center of the machine.
Hydraulic steering system for precise control.
Can navigate tight corners and confined spaces.
Can be wheeled or tracked.
Applications:
Urban construction, utility work in congested areas, and landscaping in tight spaces.
Ideal for sites requiring a high degree of maneuverability.
8. Side-Shift Backhoes:
Description: Backhoes with a boom that can slide laterally along the rear frame, allowing for digging close to walls or other obstructions.
Technical Features:
Hydraulic side-shift mechanism.
Allows for precise positioning of the backhoe bucket.
Useful for working in confined spaces.
Applications:
Utility work in narrow trenches, foundation work near existing structures, and landscaping along fences.
Technical Considerations for Selection:
When selecting a backhoe, several technical factors must be considered:
Digging Depth and Reach: Determine the required digging depth and reach for the intended applications.
Bucket Capacity: Choose a bucket size that matches the volume of material to be excavated.
Hydraulic System Capacity: Ensure the hydraulic system provides sufficient power for the required digging force and speed.
Engine Power: Select an engine with adequate horsepower for the intended tasks.
Mobility: Consider the terrain and surface conditions when choosing between wheeled and tracked models.
Stability: Ensure the backhoe has sufficient stability for safe operation.
Control Systems: Evaluate the control systems for precision and ease of use.
Maintenance Requirements: Consider the maintenance requirements and availability of parts and service.
Attachment Compatibility: Verify the compatibility of attachments for specialized tasks.
Conclusion:
The diverse range of backhoe types reflects the broad spectrum of applications they serve. From the versatile TLB to the compact mini backhoe, each configuration offers unique advantages. By understanding the technical features and applications of these different types, users can select the right equipment to maximize efficiency and productivity. The evolution of backhoe technology continues to produce increasingly specialized and efficient machines, further expanding their capabilities and applications.
