What Does a Backhoe Look Like?

The backhoe, a versatile piece of construction equipment, is easily recognizable by its distinctive silhouette.  This article provides a visual and descriptive guide to understanding the key components and features that define the appearance of a backhoe.

1.  The Chassis:

Foundation: The chassis forms the backbone of the backhoe, typically a sturdy, reinforced frame.

Wheels or Tracks: Depending on the model, backhoes can be equipped with either rubber tires or tracks.

Tires: Offer greater mobility on paved surfaces but may have limited traction on soft ground.

Tracks: Provide superior traction and stability on uneven or muddy terrain.

Engine: The engine, usually a powerful diesel engine, is typically located at the rear or midsection of the chassis.

2.  The Front Loader:

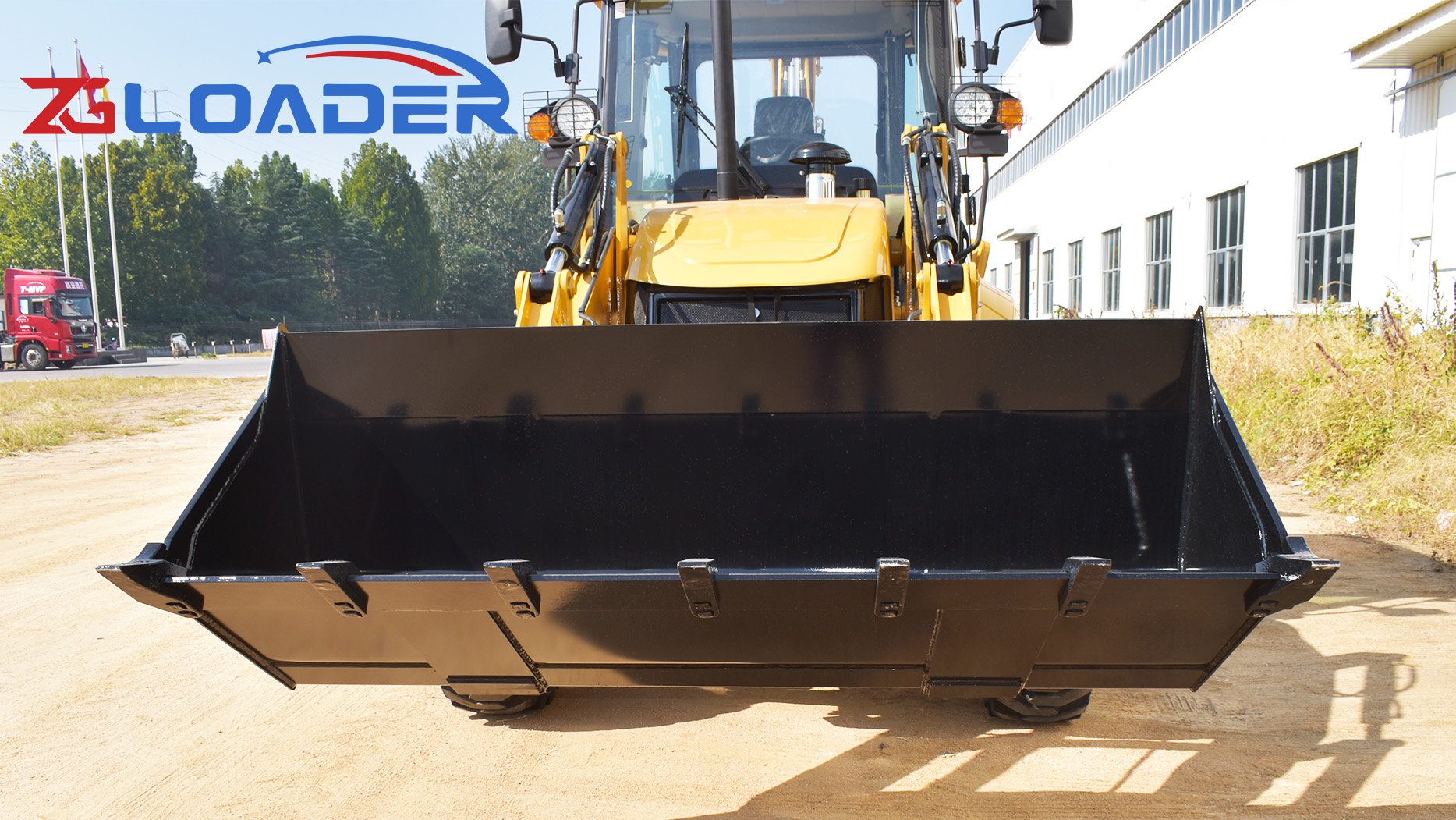

Bucket: A large, scoop-shaped bucket attached to the front of the chassis.

Arms: Two hydraulically-operated arms connect the bucket to the chassis, allowing for lifting, lowering, and tilting.

Articulation: Most backhoes have an articulated frame, allowing the front loader to pivot and maneuver independently of the rear.

3.  The Backhoe Arm:

Boom: The main arm extending from the rear of the chassis, typically a sturdy, reinforced structure.

Dipperstick: A shorter arm attached to the boom, holding the digging bucket.

Bucket: The digging implement, usually a wide, scoop-shaped bucket with teeth or edges for efficient excavation.

Swing Mechanism: The entire backhoe arm can swing horizontally, allowing the operator to dig in various directions.

4.  The Cab:

Operator's Enclosure: The cab is an enclosed compartment that houses the operator.

Controls: Inside the cab, you'll find a variety of levers, joysticks, and pedals that control the loader, backhoe arm, and vehicle movement.

Visibility: The cab is designed with large windows to provide the operator with excellent visibility of the work area.

5.  Other Key Features:

Hydraulic System: A network of hoses and cylinders that transmit hydraulic fluid to power the loader, backhoe arm, and other functions.

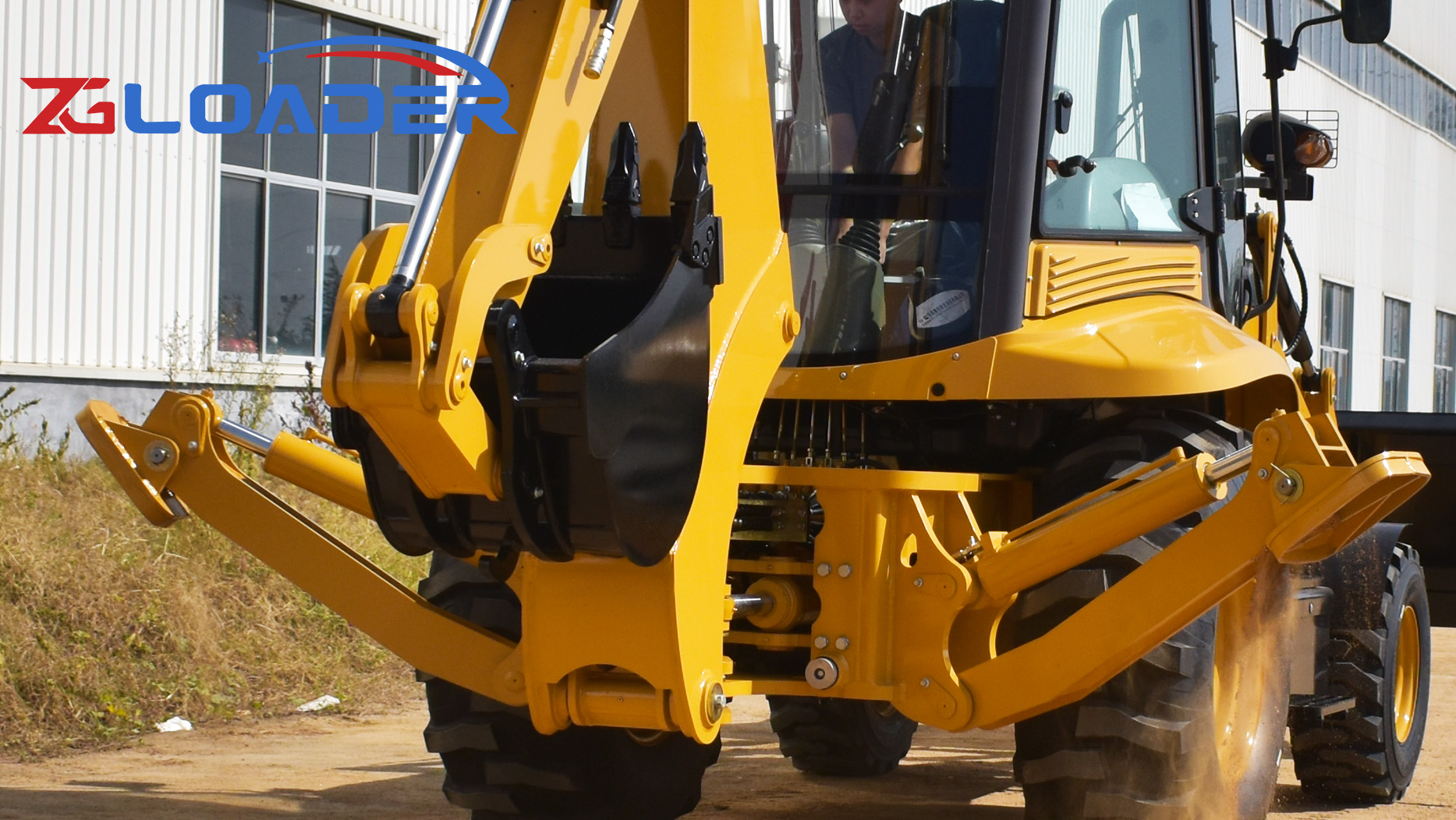

Stabilizers: Outriggers that extend from the sides of the machine to provide additional stability during digging operations.

Counterweights: Weights attached to the rear of the machine to counterbalance the weight of the loader and prevent tipping.

Visualizing the Backhoe:

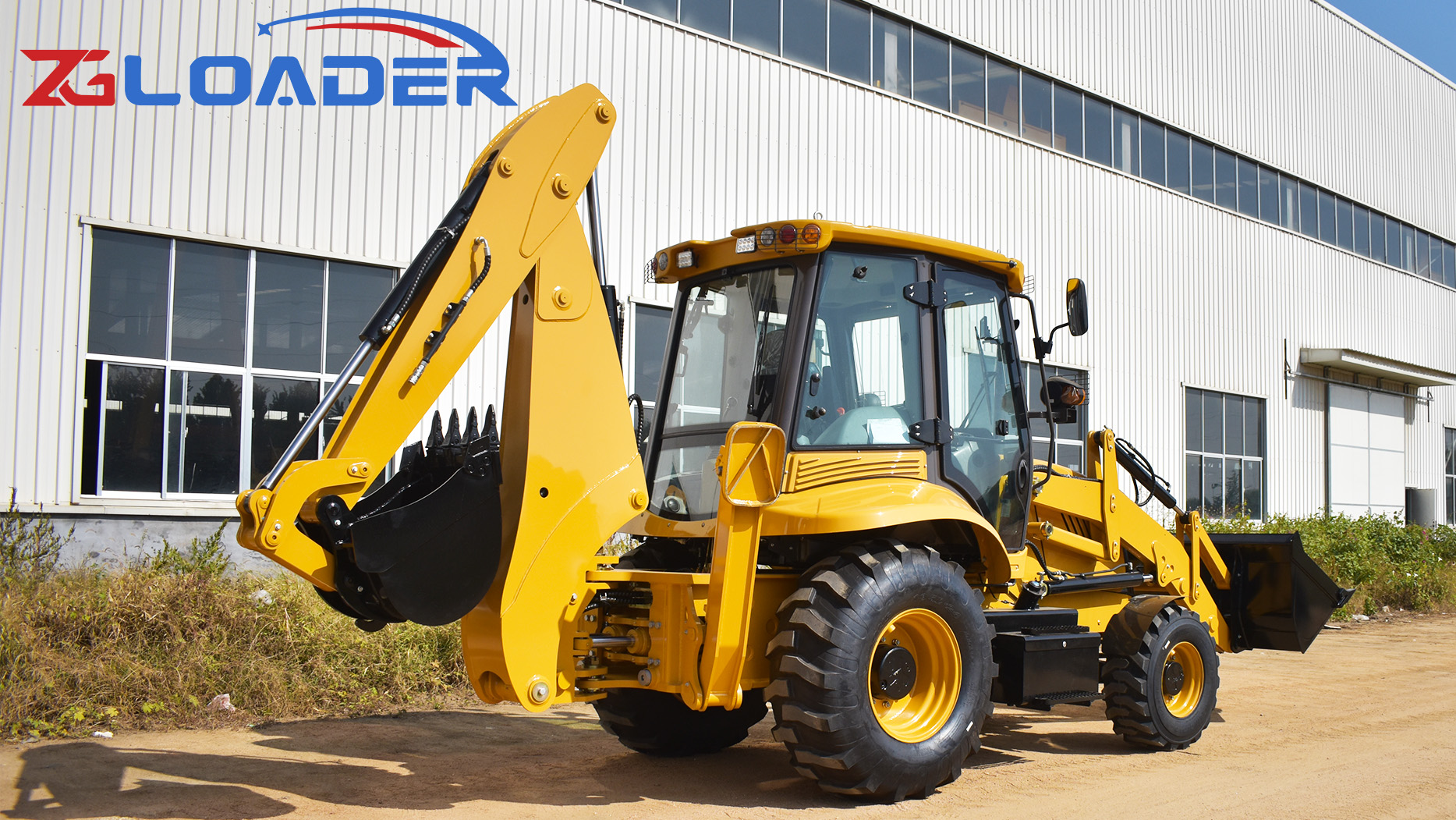

Imagine a powerful tractor with a large bucket attached to the front for scooping and moving material.  Now, picture a robust digging arm extending from the rear, equipped with a digging bucket.  This combination of front loader and rear-mounted digging arm is the essence of a backhoe.

Types of Backhoes:

Compact Backhoes: Smaller and more maneuverable, ideal for residential and smaller construction projects.  They typically have a more compact chassis and less powerful engines.

Mid-Size Backhoes: Offer a balance of size and power, suitable for a wide range of applications.

Large Backhoes: Powerful and heavy-duty machines, designed for large-scale construction and excavation projects.  They have larger engines, stronger frames, and greater digging depth and reach.

In Summary:

The backhoe is a visually distinctive machine characterized by its powerful build, front-mounted loader, and rear-mounted digging arm.  Its unique combination of features makes it an indispensable tool in various industries, from construction and landscaping to agriculture and utility work.

I hope this visual description helps you understand what a backhoe looks like!
