I. Introduction

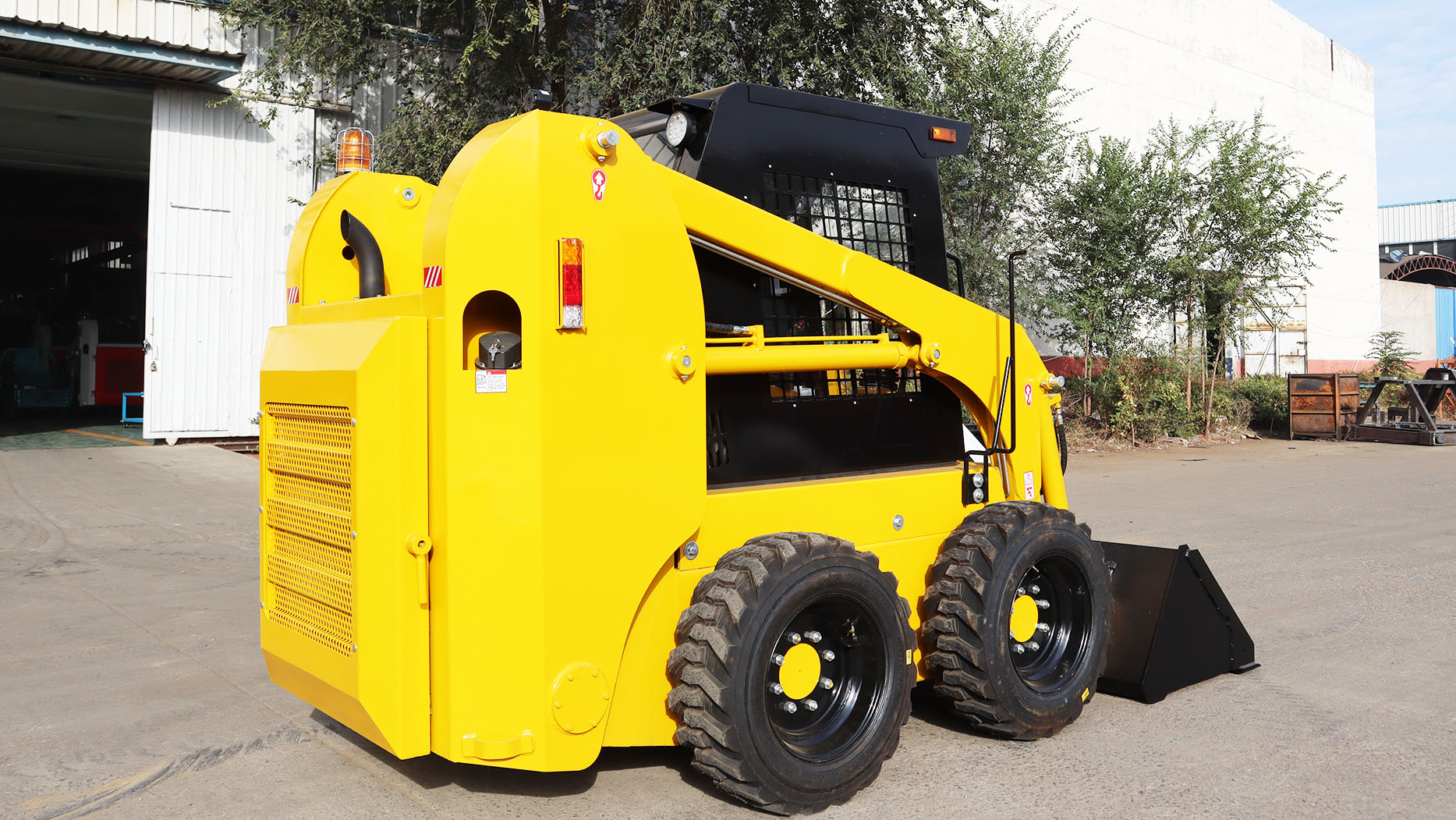

A skid steer loader is one of the most versatile and commonly used pieces of equipment in construction, landscaping, agriculture, and various other industries. Compact and highly maneuverable, these machines can handle a wide range of tasks, from digging and grading to lifting, hauling, and snow removal. What makes the skid steer loader stand out is not just its size and agility, but also its compatibility with a wide variety of attachments, enabling it to perform functions similar to larger, more specialized equipment.
As a skid steer owner or operator, understanding the main parts of the machine is critical. Not only does it help you operate it more effectively, but it also ensures proper maintenance and early detection of mechanical issues. This article will explore the key components of a skid steer loader, covering its structural, mechanical, hydraulic, and control systems, and how they all work together to deliver powerful performance in a compact package.
II. Overview of Skid Steer Loader Design
Skid steer loaders are defined by their compact, rigid-frame design and zero-radius turning capability, which makes them ideal for work in tight spaces. Unlike articulated loaders, skid steers steer by skidding—each set of wheels operates independently, allowing sharp turns and precise movement.
One of the defining features of skid steers is their ability to use a wide range of attachments. This versatility allows them to be used in many roles: as trenchers, augers, sweepers, snow blowers, and more. Their design focuses on maximizing power, agility, and operator efficiency within a small footprint.
III. Key Structural Components
Main Frame/Chassis
The chassis is the foundational structure of the skid steer loader. It supports the entire machine and serves as the mounting point for all other components, including the engine, cab, wheels, and lift arms. A strong, durable frame is essential for absorbing the forces involved in heavy-duty work.
Cab/Operator Station
The cab can be open or fully enclosed, depending on the model. It houses all operator controls, including joysticks, pedals, and display screens. Many modern cabs include climate control, ergonomic seating, and advanced monitoring systems for comfort and efficiency. Safety features such as seat belts and interlock systems are also integrated here.

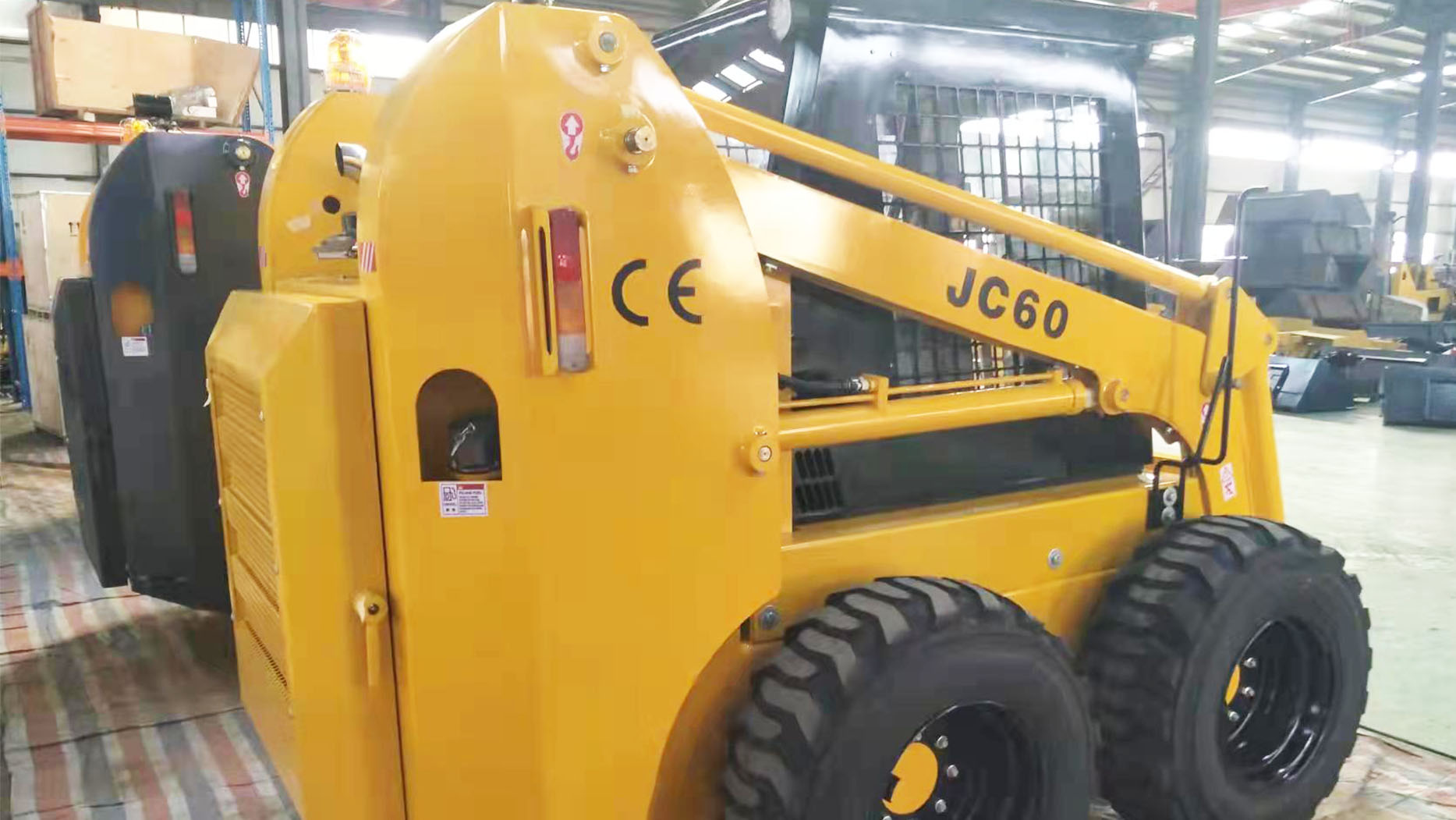

Lift Arms
Lift arms extend from the rear of the machine and connect to the attachment plate at the front. Controlled by the hydraulic system, they are responsible for lifting and lowering attachments. There are two main configurations:
Radial Lift: Provides better digging performance at lower heights.
Vertical Lift: Offers greater reach and height for loading tasks.
IV. Powertrain Components
Engine
Most skid steer loaders are powered by diesel engines, chosen for their torque and fuel efficiency. The engine is the heart of the machine, generating the power needed to drive the wheels, operate the hydraulics, and run auxiliary systems.
Transmission and Drivetrain
Skid steers use hydrostatic transmission systems. Instead of gears, these systems use hydraulic fluid to transfer power from the engine to the wheels. This setup provides smooth acceleration, precise control, and instant torque for demanding tasks.
Wheels or Tracks
While traditional skid steers have four wheels, many models now offer track systems for better performance on uneven or soft terrain. Tracks provide increased stability and flotation, making them ideal for muddy or snowy environments. Wheels, on the other hand, are easier to maintain and better for paved surfaces.
V. Hydraulic System
Hydraulic Pump and Lines
The hydraulic system powers the lift arms and attachments. At its core is the hydraulic pump, which pressurizes fluid and sends it through hoses and lines to cylinders and motors throughout the machine.
Control Valves
These valves regulate the direction and flow of hydraulic fluid to different parts of the loader. Operators control them via joysticks or switches in the cab, allowing precise movement of arms and attachments.
Auxiliary Hydraulics
Most skid steers are equipped with auxiliary hydraulic ports for powering attachments like augers, breakers, and brush cutters. Flow rates vary between machines and attachments, so it's important to ensure compatibility.
VI. Attachment Interface
Quick Attach System
Modern skid steers feature a quick attach system, often universal or ISO-compliant, allowing operators to switch attachments quickly without special tools. This boosts productivity and versatility.
Common Attachments

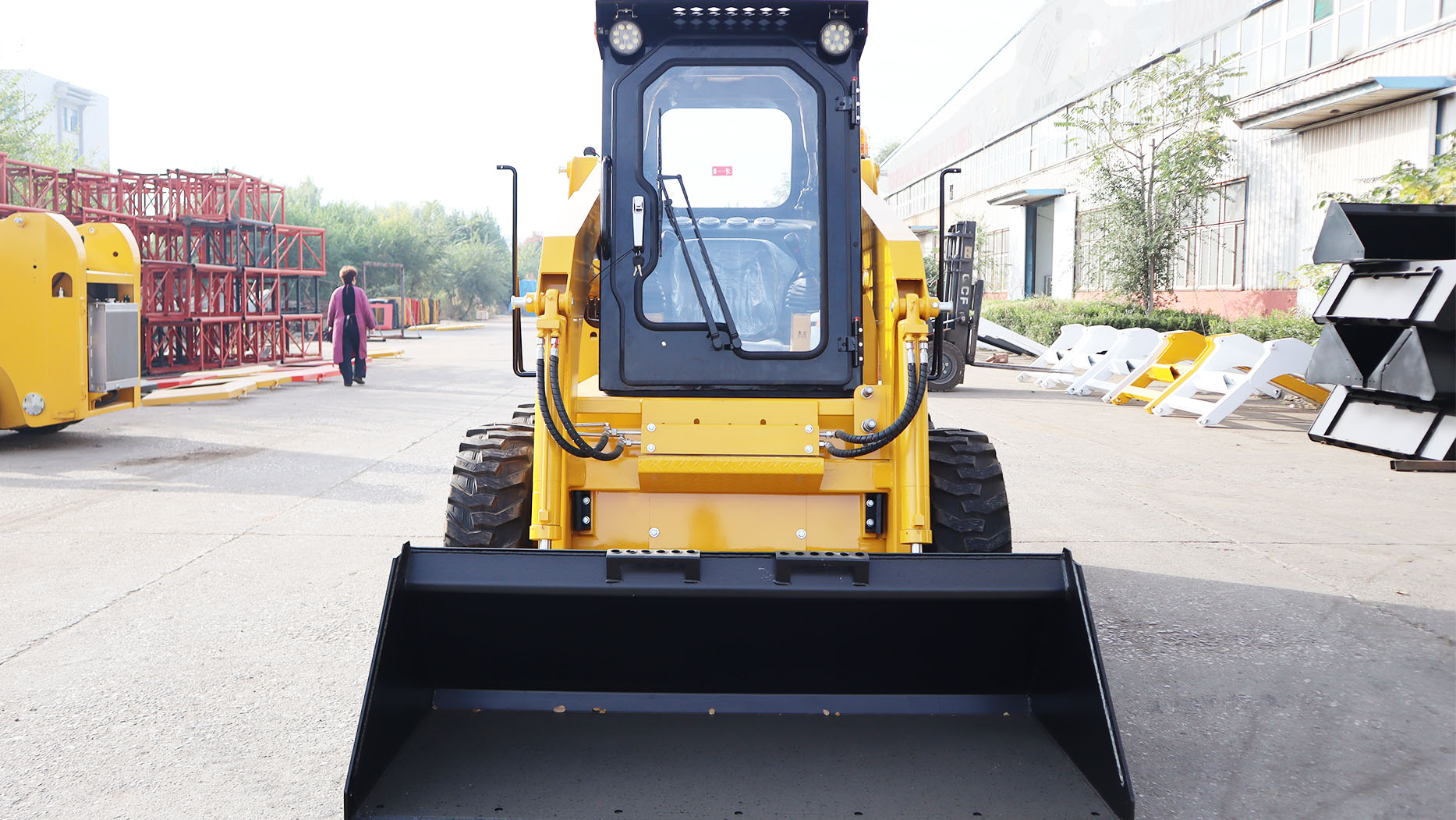

Bucket (standard): Used for digging and material handling
Pallet Forks: For lifting and transporting pallets
Augers: For drilling holes
Trenchers: For cutting narrow trenches
Snow Blowers: For clearing snow
Attachment Controls
Attachment operation is often integrated into the joystick or other cab controls. Some advanced systems even allow for programmable settings for different attachments.
VII. Electrical and Safety Systems
Electrical Components
Skid steers rely on a 12V or 24V electrical system powered by a battery. It supports lighting, instrumentation, engine starting, and optional features like cameras and alarms.
Safety Features
ROPS/FOPS: Roll-over and falling object protection systems safeguard the operator in case of accidents
Seat Belt and Restraint Bar: Ensure the operator remains secure in the cab
Backup Alarm and Lights: Improve safety when reversing or operating in low visibility
Interlock Control System: Prevents operation of hydraulics unless the operator is seated and the restraint is in place
VIII. Maintenance and Monitoring Features
Instrument Panel and Gauges
These provide real-time data on engine temperature, fuel levels, hydraulic pressure, and other vital stats. Alerts and warning lights inform operators of potential issues.
Service Points
Manufacturers design skid steers with accessible service points to simplify routine maintenance. This includes:
Grease fittings
Fluid reservoirs
Air filters
Engine oil and hydraulic filters
Common Maintenance Tasks
Checking and topping off fluids
Greasing pivot points
Cleaning or replacing air filters
Inspecting tires/tracks and hydraulic hoses
Monitoring wear on attachments and couplers
IX. Conclusion
A skid steer loader may be compact, but it packs a lot of complexity into its design. By understanding its key components—from the structural chassis and powertrain to the hydraulic systems and attachments—you can operate it more effectively, maintain it properly, and extend its working life. Whether you’re new to skid steers or looking to deepen your mechanical knowledge, mastering these parts will help ensure safer, more efficient use of one of the most versatile machines in your equipment lineup.
