The construction, landscaping, and agricultural industries rely heavily on versatile compact machines capable of tackling a wide range of tasks. Two prominent contenders in this arena are the skid steer loader (SSL) and the compact track loader (CTL). While both share a similar frame and attachment compatibility, their fundamental differences in undercarriage design significantly impact their performance and suitability for specific applications. Choosing between them requires a comprehensive understanding of their technical specifications, operational characteristics, and cost considerations.
Undercarriage Design: The Core Distinction
The most significant difference lies in the undercarriage.

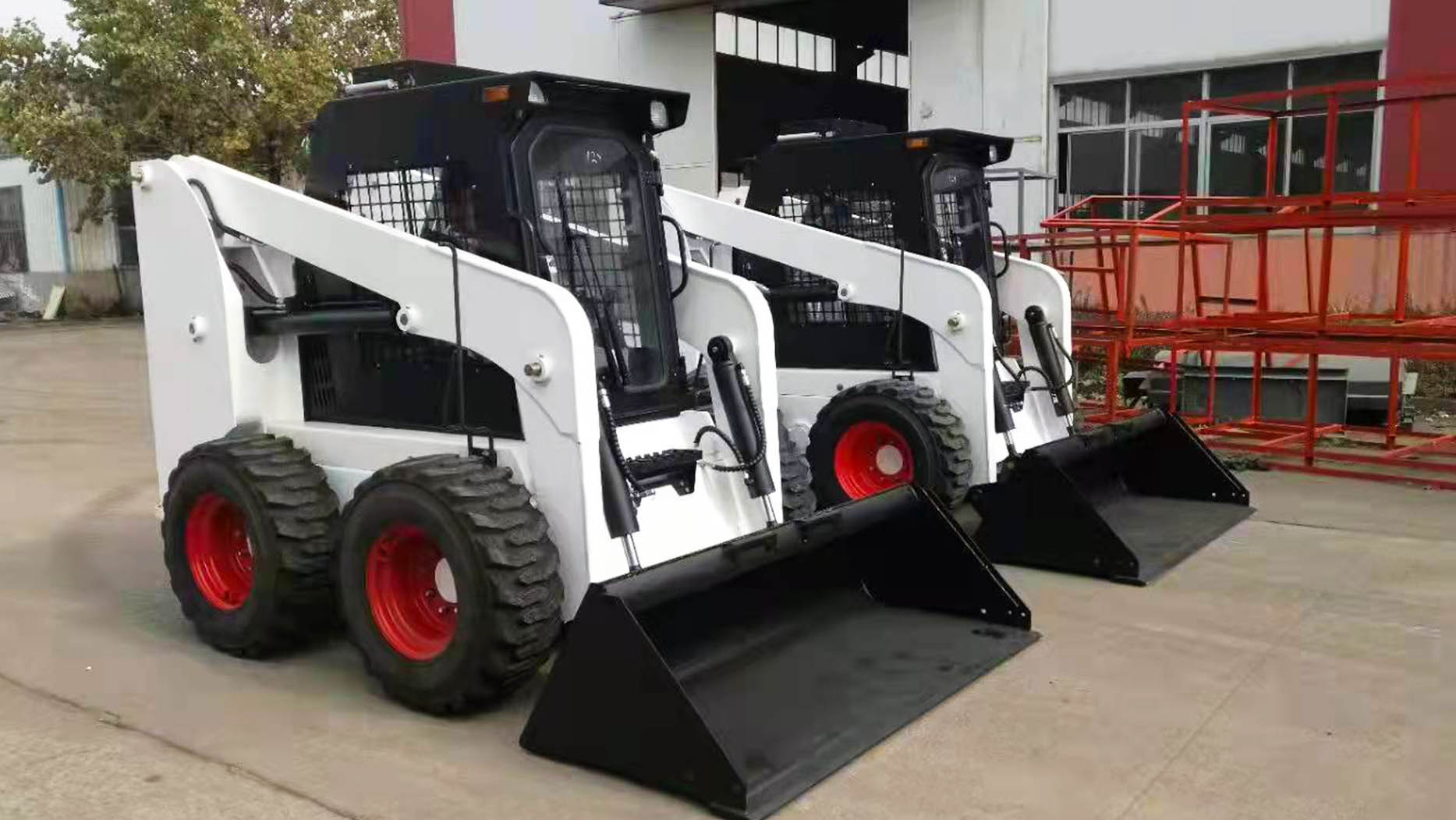

Skid Steer Loader (SSL): SSLs utilize wheels driven by independent hydraulic motors. This allows for a "skid steer" turning motion, where the wheels on one side rotate faster or in the opposite direction of the other, enabling tight turns.

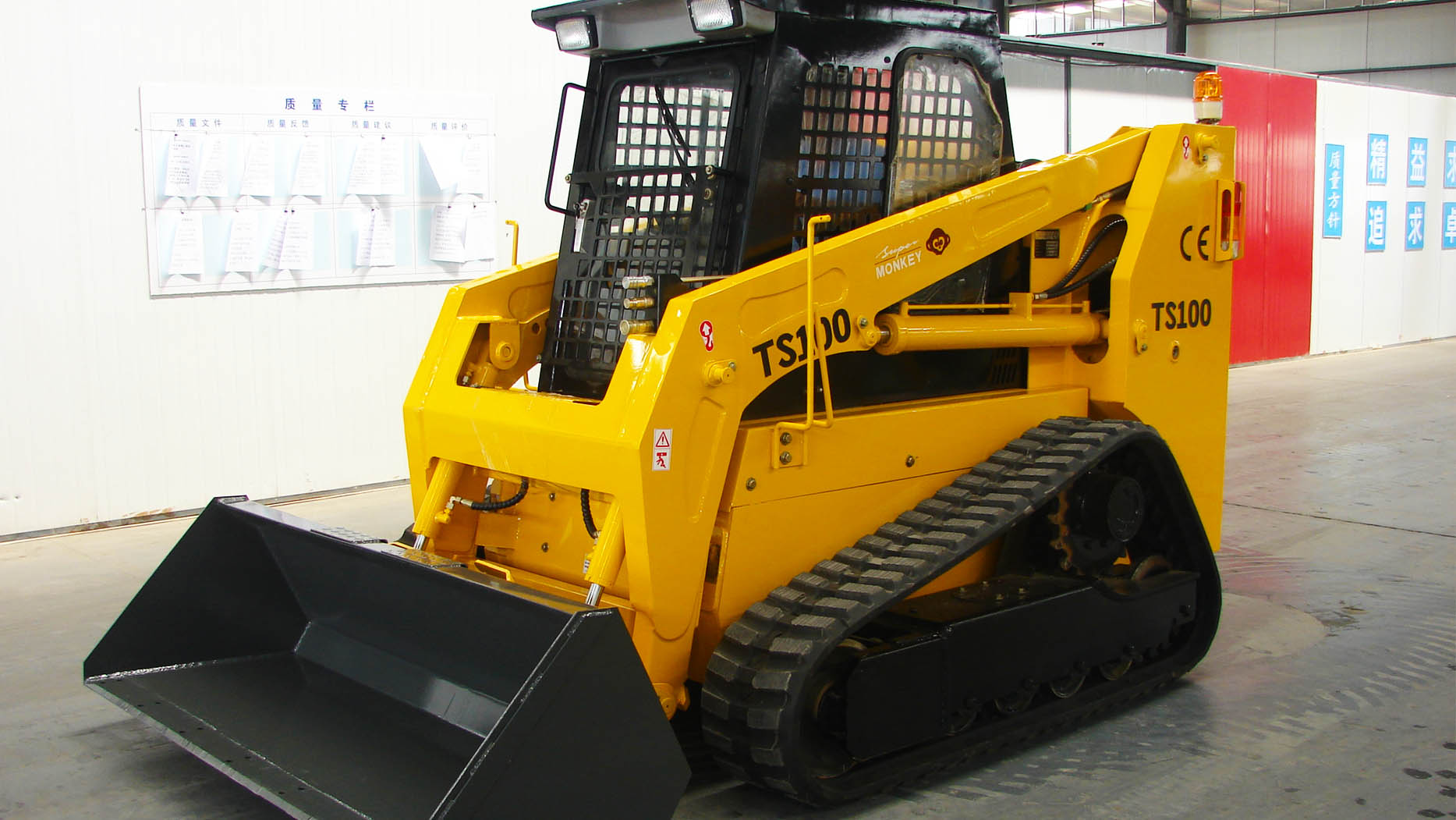

Compact Track Loader (CTL): CTLs employ a tracked undercarriage, consisting of rubber tracks driven by hydraulic motors. These tracks distribute the machine's weight over a larger surface area, resulting in lower ground pressure.
Ground Pressure and Traction:
SSL: Higher ground pressure due to the smaller contact area of wheels. This can lead to soil compaction, rutting, and reduced traction on soft or uneven terrain. Wheel slippage is common, especially in muddy or loose conditions.
CTL: Lower ground pressure, significantly reducing soil compaction and minimizing damage to sensitive surfaces like lawns or paved areas. The increased contact area provides superior traction in challenging conditions like mud, snow, sand, and slopes. This makes CTLs ideal for landscaping, site preparation, and working in adverse weather.
Stability and Operating Conditions:
SSL: Generally less stable on uneven terrain, particularly slopes. The rigid wheel suspension transfers bumps and vibrations directly to the operator. Wheel slippage can also lead to unpredictable movements. They excel on hard, flat surfaces where maneuverability and speed are prioritized.
CTL: Greater stability due to the tracked undercarriage's ability to conform to uneven surfaces. The tracks provide a smoother ride and reduce operator fatigue. They maintain stability on slopes and can operate effectively in challenging conditions where SSLs would struggle.
Speed and Maneuverability:
SSL: Typically faster on hard surfaces, with higher travel speeds than CTLs. The skid steer turning mechanism allows for exceptional maneuverability in confined spaces.
CTL: Slower travel speeds compared to SSLs. While still maneuverable, their turning radius is generally larger due to the tracked undercarriage. However, modern CTLs are improving in maneuverability.
Turning methods: The skid steer turns by skidding the wheels, while a compact track loader turns by differential track speed. This difference is important when considering sensitive surfaces.
Maintenance and Operating Costs:
SSL: Generally lower initial purchase price and maintenance costs. Tires are less expensive to replace than tracks, and the simpler undercarriage requires less maintenance.
CTL: Higher initial purchase price and maintenance costs. Tracks are more expensive to replace, and the more complex undercarriage requires regular maintenance, including track tension adjustments and undercarriage cleaning. Track wear is also accelerated by operating on abrasive surfaces like concrete or asphalt.
Fuel Consumption: CTLs often consume more fuel due to the increased rolling resistance of tracks.
Application-Specific Considerations:
Construction:
SSL: Ideal for tasks on paved surfaces, demolition, site cleanup, and material handling in confined spaces.
CTL: Preferred for site preparation, grading, excavation, and working on soft or uneven terrain.
Landscaping:
SSL: Suitable for light-duty tasks on established lawns, material transport on paved surfaces.
CTL: Essential for grading, soil preparation, tree removal, and working on sensitive or sloped terrain.
Agriculture:
SSL: Used for material handling in barns and feedlots, general farm maintenance on hard surfaces.
CTL: Ideal for field work, livestock operations on soft ground, and working in muddy or snowy conditions.
Snow Removal:
SSL: Effective on paved surfaces, but limited traction in deep snow.
CTL: Superior traction in deep snow, making them ideal for clearing large areas.
Technical Specifications and Considerations:
Operating Weight: CTLs generally have a higher operating weight than SSLs, contributing to their stability and lifting capacity.
Lifting Capacity: Both SSLs and CTLs offer a wide range of lifting capacities, depending on the model and configuration. However, CTLs often boast higher tipping loads due to their lower center of gravity and wider stance. It's important to understand the difference between the operating capacity and the tipping load. As displayed within search result data:
"Skid steer loaders are rated at 50 percent of tipping load, whereas compact track loaders are rated at 35 percent." This shows the stability rating difference.
Hydraulic Flow: Both types of loaders offer a variety of hydraulic flow options, allowing for compatibility with a wide range of attachments.
Attachment Compatibility: Both SSLs and CTLs utilize a universal quick-attach system, allowing for interchangeability of attachments. This includes buckets, grapples, augers, trenchers, and more.
Track Types: CTLs offer various track types, including standard rubber tracks, steel-embedded rubber tracks, and segmented steel tracks, each with its own advantages and disadvantages.
Suspension: Modern CTLs incorporate advanced suspension systems to improve ride quality and reduce operator fatigue.
Cost Analysis:
A thorough cost analysis should consider:
Initial purchase price: CTLs are generally more expensive than SSLs.
Maintenance costs: Tracks are more expensive to maintain and replace than tires.
Fuel consumption: CTLs typically consume more fuel.
Resale value: CTLs may hold their value better in certain markets.
Operating Efficiency: Consider time to completion of tasks. While an SSL may be faster in short transits, the CTL can preform many work tasks much faster, in adverse working conditions.
Conclusion:
The "better" machine depends entirely on the specific application and operating conditions.
Choose an SSL: For tasks primarily performed on hard surfaces, where speed, maneuverability, and lower initial costs are paramount.
Choose a CTL: For tasks that require superior traction, stability, and minimal ground disturbance, especially in challenging conditions like mud, snow, or uneven terrain.
By carefully evaluating your needs and considering the technical specifications, operational characteristics, and cost factors, you can make an informed decision and select the loader that best suits your requirements. It is also highly recommended to test drive each type of machine to get a personal feel of their operations.
