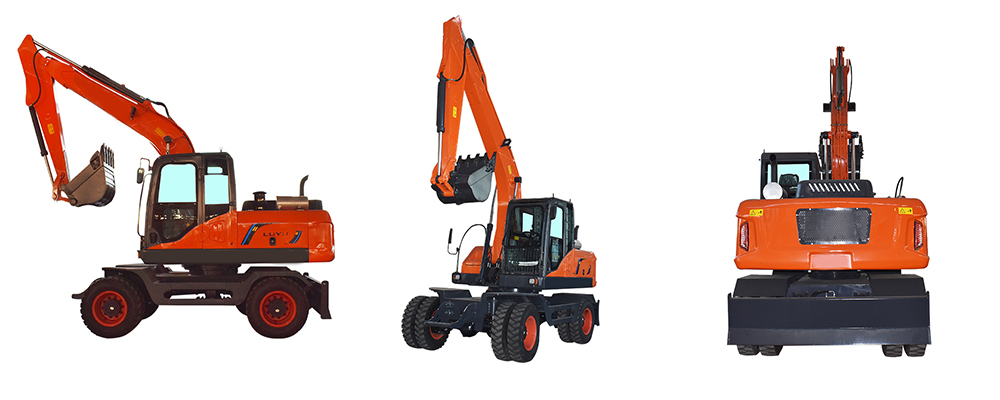

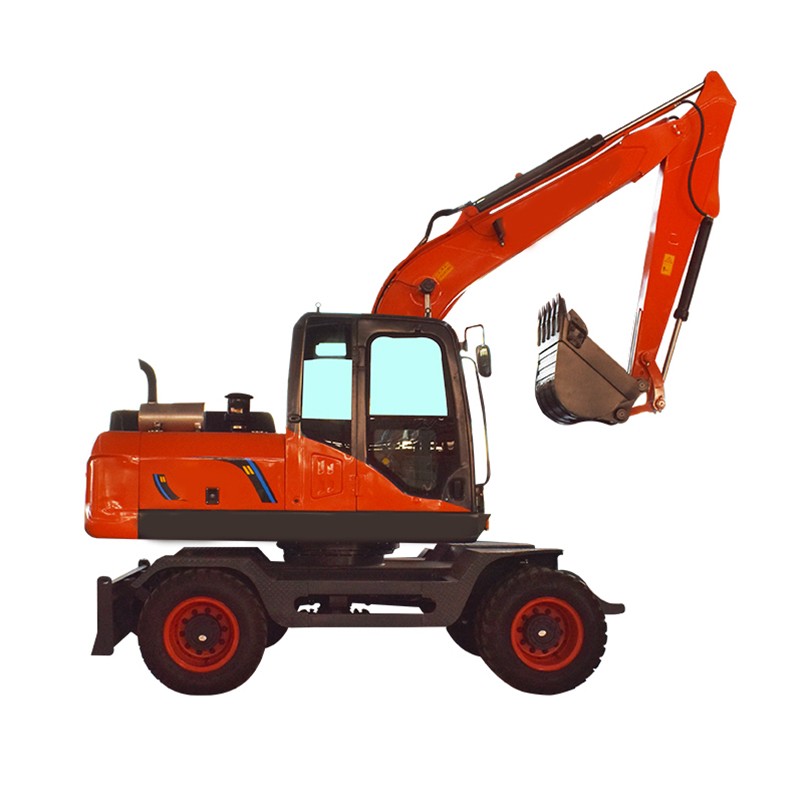

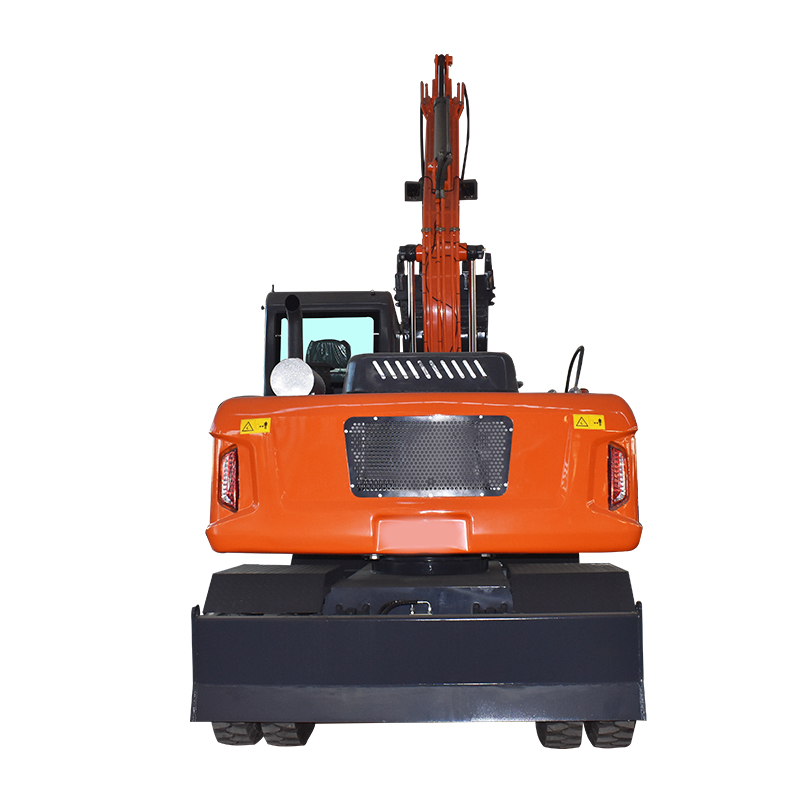

135-9 Wheel Excavator
Product Feature
135-9 is a small excavator suitable for multi workingcondition, which is the upgraded version of 135. Energysaving, reliable and comfortable, flexible operation and lownoise, widely used in construction sites, municipalconstruction, farmland transformation, landscapeengineering, pipeline laying and other working conditions
1. The whole machine has compact structure, flexible mobility, good adaptability to working conditions, fast action speed and high operation efficiency.
2. Original Japanese Yanmar engine ,yuchai engine : four-valve structurelarge air intake, automatic idle function with low energyconsumption.
3. Load sensing hydraulic system: the main control valvecan operate independently of the load, the actioncoordination is not affected by the load, and it is related tothe angle of the pilot handle. It can realize precision controlon different executive elements, with good controllabilityand high work efficiency.
4. Three stage filtration, two stage oil-water separator plusone stage fine filtration, high efficiency, good oil adaptabilityand more durable engine.
5. Upper frame: integral reinforced upper frame structure.compact structure, good rigidity, uniform load distribution. small deformation, high reliability.
6. Control system: eye-catching color monitor, monitor therunning state of the machine at any time, convenient pilothandle and control switch, easy to reach, easy to operate
Parameter
| MOVABLE ARM LENGTH | 4200MM |
| ARM LENGTH | 2400MM |
| MAXIMUM EXCAVATION DISTANCE | 8088MM |
| MAXIMUM EXCAVATION DEPTH | 4350MM |
| MAXIMUM EXCAVATION HEIGHT | 8230MM |
| MAXIMUM UNLOADING HEIGHT | 5990MM |
| MINIMUM RADIUS OF TURNING | 2790MM |
| AFT TURNING RADIUS | 2095MM |
| MAXIMUM GROUND EXCAVATION DISTANCE | 867MM |
| MAXIMUM VERTICAL EXCAVATION DEPTH | 4135MM |
| WEIGHT | 11200KG |
| ENGINE TYPE |
YC4A100-302 yanmar |
| ENGINE POWER | 73.5KW |
| WORKING PRESSURE OF HYDRAULIC SYSTEM | 28MPA |
| ROTARY SPEED | 11.5RPM |
| WALKING SPEED | 30KM |
| BUCKET DIGGING FORCE | 40KN |
| CLIMBING ABILITY | 38 |
Operator Friendly
Ergonomically designed controls, clear and informative displays, increased visibility, and exceptional comfort increases operator efficiency and safety. The 135-9 also includes seven percent larger glass surface area combined with a standard rear view camera which gives the operator a panoramic view.
Optimized Hydraulics
Where intelligence meets brute force, load-sensing hydraulics direct the engine's power to ensure hydraulic pump flow continually adjusts for smooth, quick and efficient operation.
Adjustable Seat And Joystick Control
The adjustable seat and joystick console move independently to accommodate the operator. Increased spacing between the armrest and nine different seat adjustments allow the operator more options to all foot and hand controls for maximum comfort.
