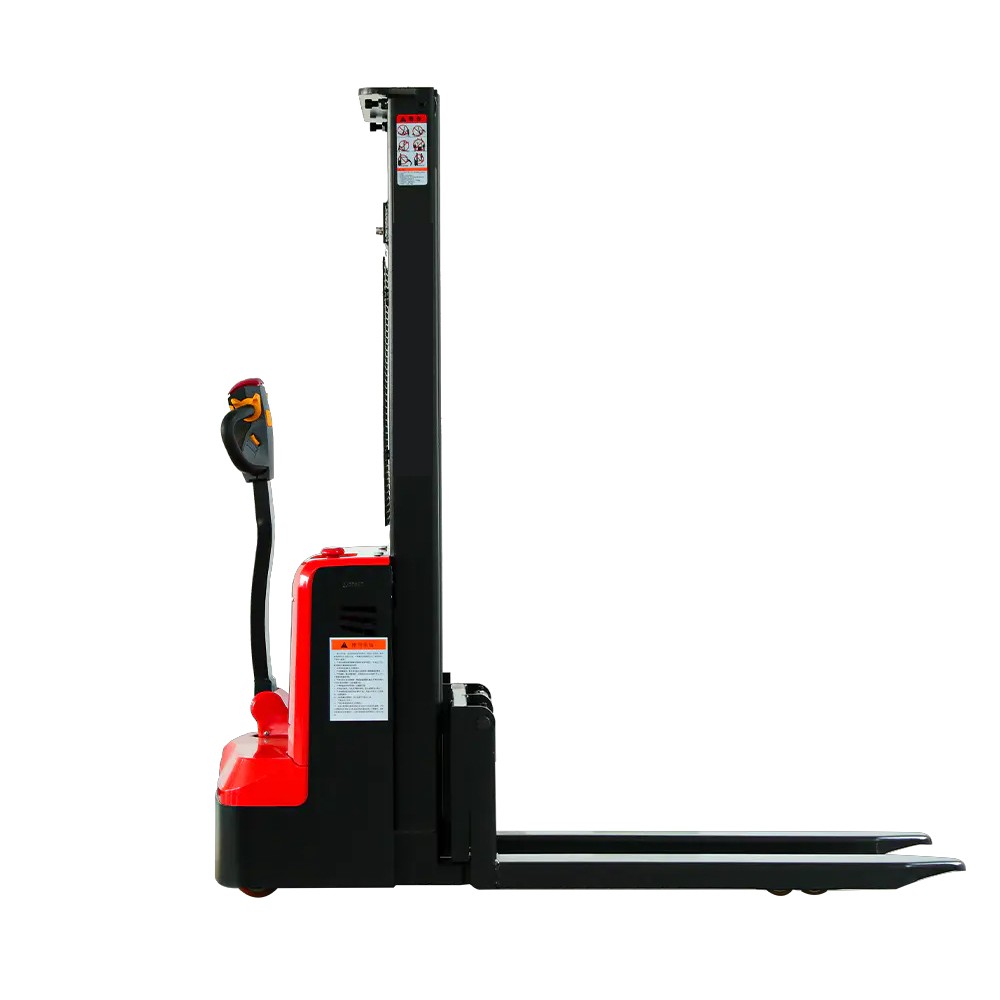

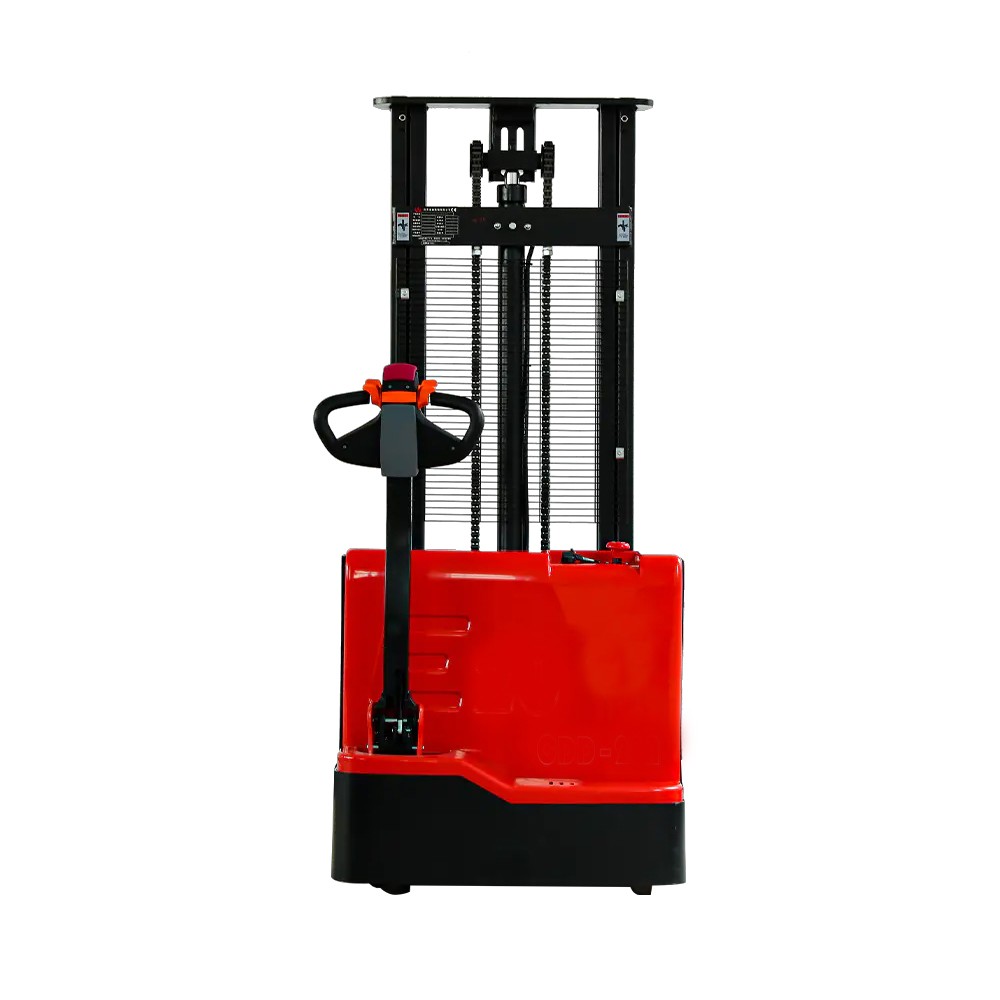

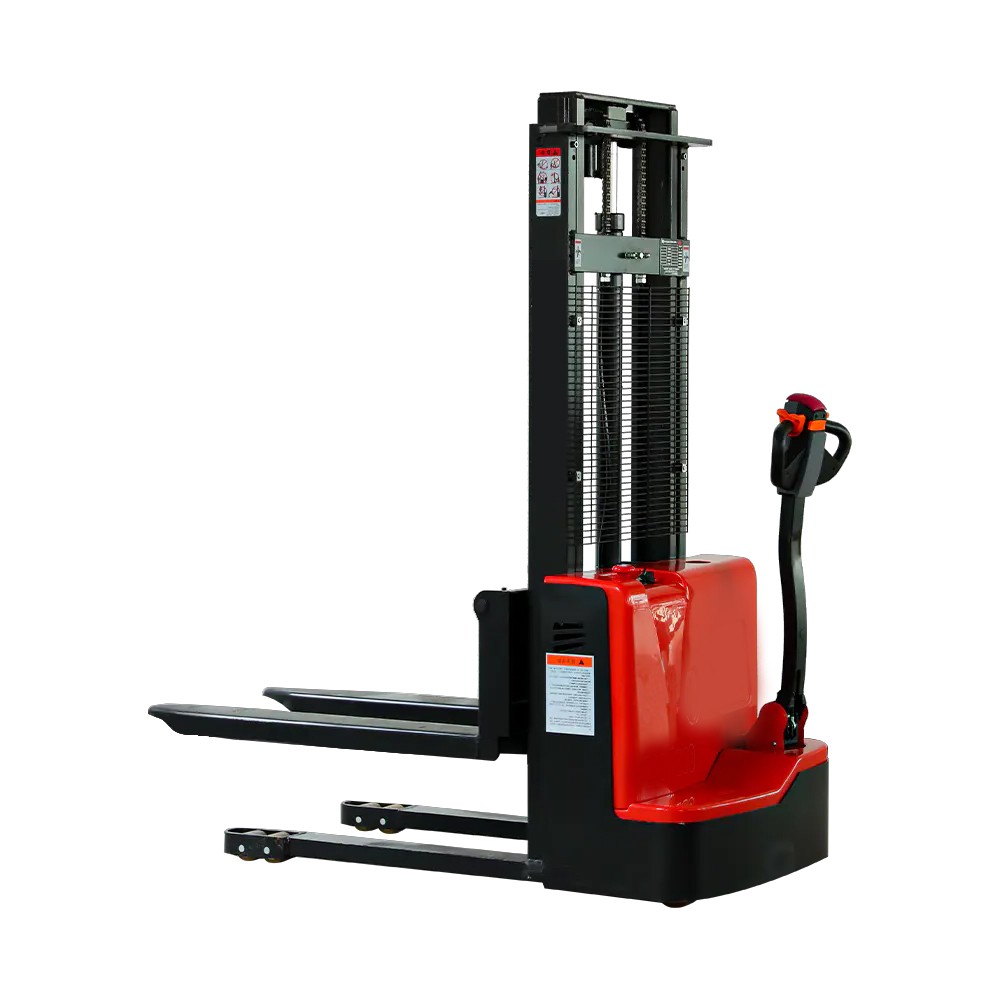

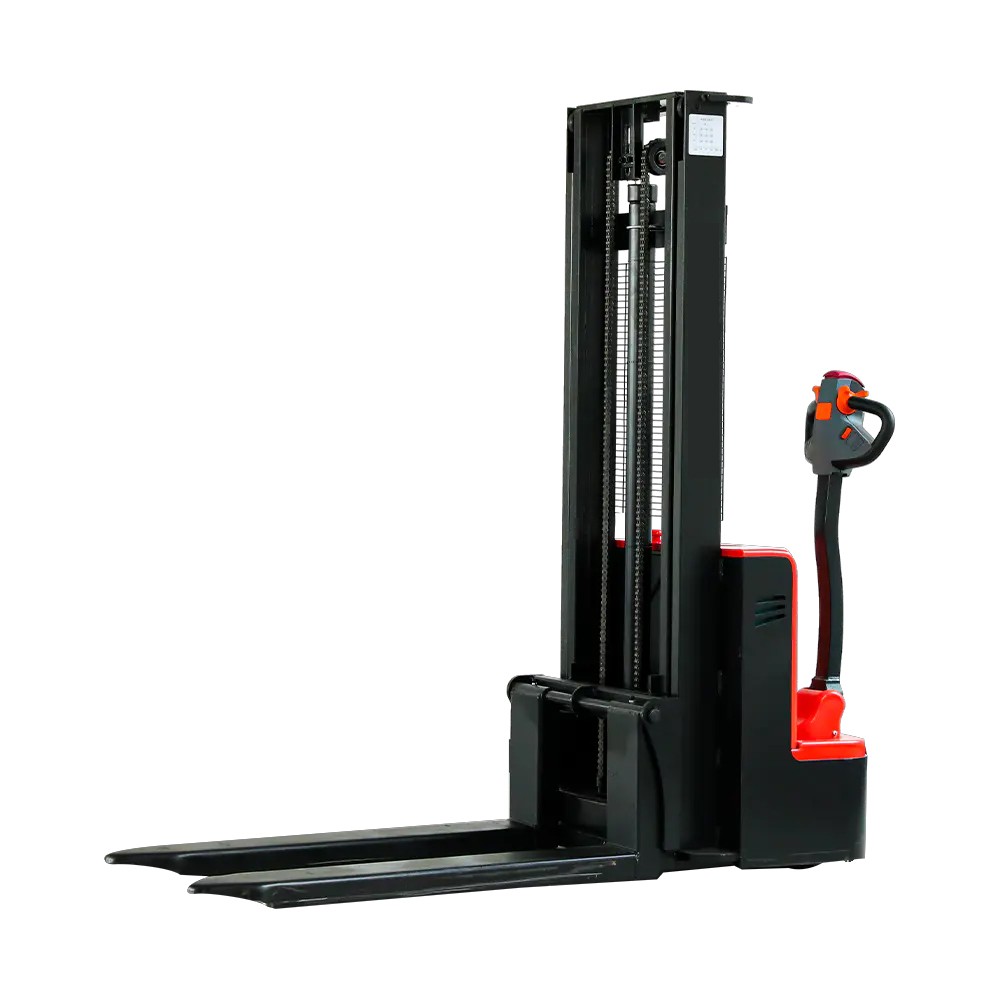

Mingyu CDD-A Walike electric stacker

Short Description:

Our all-electric pallet truck has an ultra-small turning radius, solving the problem of expensive narrow aisles that large forklifts are not allowed to pass through. They are mainly used in various factories, warehouses, logistics storage and loading, short-distance stacking, and handling....

Maximum load capacity: 1500/1600kg
Overall length/width of frame: 1860/850mm
Fork size（length *width*thickness): 1150*165*55mm
Fork lowered height: 90mm

Send email to us

Product Details

Product Tags

CDD-A WALKIE ELECTRIC STACKER

Product features :

Advantages:

Productivity

• Long tiller design for ergonomics and safety；

• Emergency reversing device in the handle provides higher safety for thewhole operation；

• Braking applied with handle upright and horizontal position, increasing the safety of the truck；

• Multi-function display with hour meter；

• Built-in pressure relief valve protects the trucks from overloads, and increases the reliability；

• Emergency power disconnect switch；

• Turtle-shaped low speed switch；

• Auto deceleration function makes operation more safely.

Optimum Structural Design

• Low center of gravity ensures the stable operation；

• Full free lifting, fit for working in low roof house；

• Adjustable balance wheel；

• Fixed forks/Adjustable forks are optional, suitable for more work scenarios.

Company Introduction

Model				CDD15/16
Maximum load capacity				1500/1600kg
load center				600mm
Travel speed without load/with load				4.5/3.5km/h
Lifting speed without load/with load				140/80mm/s
Lowered speed without load/with load				100/80mm/s
Ascend slope ability without load/with load				7/4%
Overall length/width of frame				1860/850
Wheelbase				1250mm
Fork size（length widththickness）				115016555mm
Fork outside width				550/685mm
Min frounf height				28mm
Fork lowered height				90mm
Minimum turning radius				1530mm
Minimum intersecting aisie				2400mm
Front wheel				80*70mm
Drive wheel				210*75mm
Caster wheel				115*55mm
Drive motor Rated output/DC motor				0.75kw
Hoist motor Rated output/DC motor				2.2kw
Battery Voltag/Capacity				24/85V/Ah
Battery Weight				26*2kg
Mast	Max.Lifting height	Mast overall height	Mast overall height	Service weight
Single mast	1600 mm	2080 mm	2080 mm	460 kg
2-stage mast	2000 mm	1580 mm	2550 mm	520 kg
	2500 mm	1830 mm	3050 mm	530 kg
	3000 mm	2080/1980 mm	3550/3450 mm	540 kg
	3500 mm	2330 mm	4050 mm	620 kg

Emergency reverse device;
The built-in unloading valve protects the stacker from overloading and improves the reliability of the stacker;
Emergency power off switch;
Turtle-shaped slow speed switch;
Infinitely variable speeds control;
Foldable, thickened pedals and guard bar,make operator more comfortable and safety;
The side cylinder ensures wide field of view operation and stability of the stacker;
The balance wheel of the spring adjustment structure is hard-wearing and has good stability.

About us

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.

MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get

MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.

Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
