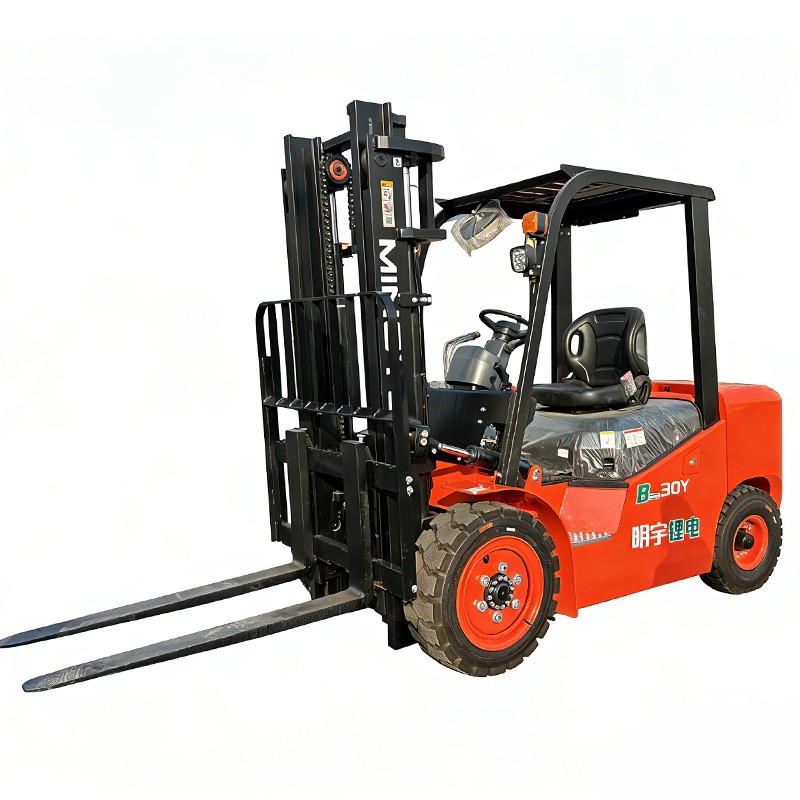

MYZG CPD30 / CPD35 Li-ion Electric Forklift
MYZG CPD30 / CPD35 Li-ion Electric Forklift: Heavy-Duty Power, Zero-Emission Future
The MYZG CPD series is the perfect blend of strength and sustainability. They are built with the durable, high-visibility chassis expected of a heavy-capacity forklift while incorporating a cutting-edge 80V/506AH Li-ion battery system. This strategic investment ensures your operations remain powerful, reliable, and compliant with the growing global demand for zero-emission equipment.
Unrivaled Performance: The Power of Lithium-ion
The core strength of the MYZG CPD30/35 lies in its advanced power source, delivering performance metrics that rival and often exceed their diesel counterparts.
High-Efficiency Electric Drive: Powered by a responsive 22.6 Kw oil pump motor and a powerful drive motor, the CPD series provides instant torque, fast acceleration (max operating speed of 15 km/h), and superior climbing ability (max gradability of 15%).
Rapid & Consistent Lifting: The forklifts feature a maximum lifting speed of 380 mm/s (without load), ensuring fast cycle times. The Li-ion power maintains consistent lift speeds throughout the battery's charge, unlike traditional lead-acid systems.
Low Maintenance, High Uptime: The electric motor system requires minimal routine maintenance compared to diesel engines, eliminating oil changes, spark plugs, and filters. This translates directly into reduced downtime and significantly lower long-term ownership costs.
Zero Emission & Quiet Operation: Ideal for indoor facilities and sensitive environments, the CPD30/35 produces zero emissions and operates with dramatically reduced noise, improving air quality and operator comfort.
THE MAIN PARAMETER
Model
B30Y/B35Y
Power Type
Li-ion
rated load lifting capacity
3000/3500kg
Load centre distance
500mm
driving style
Sit down
length
with fork
4040mm
without fork
2820mm
wideth
1225mm
height
Do not raise the mast height
2140mm
Overhead guard height
2110mm
Max height at working
4262mm
wheel base
1810mm
front overhang
441mm
rear overhang
650mm
front wheel track
1000mm
rear wheel track
980mm
minimum ground clearance
145mm
Standard lifting height
3000mm
free lifting height
65mm
minimum turning radius
2625mm
Minimum right-angle channel width(1100*1100 pallets)
4366mm
Gantry angle (front/rear)
6/12°
Maximum lifting speed without load
380mm/s
Maximum lifting speed with full load
300mm/s
Maximum operating speed without load
15Km/h
Maximum operating speed with full load
15Km/h
Max gradeability with full loading
15%
Weight unladen
4200/4400kg
Number of wheels = driving wheels/steering wheels
2/2
Tyre type (front/rear)
Pneumatic tyre/pneumatic tyre
tyre size(front)
28x9-15
tyre size(rear)
6.50-10
Brake/driving brake
Foot Brake
parking brake
Hand Brake
Battery voltage/capacity
80V/206AH
Charger
220V/35A
Drive motor power
16kw
Oil pump motor power
22.6KW
Precision Engineering for Maximum Agility and Stability
The MYZG CPD30/35 is designed with meticulous attention to detail, ensuring superior handling and operational safety, even when dealing with multi-ton loads.
Compact Design for Heavy Capacity: The forklifts maintain excellent agility with an overall width of 1225mm and a minimum turning radius of 2625mm. This allows the machine to operate efficiently in narrower aisles and confined spaces than many equivalent diesel models.
High-Capacity Battery System: The 80V/506AH Li-ion battery is integrated with a 35V/35A internal charger. The design provides a low center of gravity for maximum stability during high lifts.
Superior Mast Visibility: The mast is designed to provide excellent visibility, complemented by a full height of the overhead guard of 2110mm, ensuring a clear view of the load and surroundings for enhanced safety.
Durable Construction: Built with a sturdy 4262mm full length of the roof guard and heavy-duty chassis, the CPD30/35 is made for the long haul, with an overall weight of 4200kg/4400kg providing stability and robustness.
Operator Experience and Safety
The CPD30/35 is designed for the modern operator, offering comfort, control, and peace of mind.
Ergonomic Sit-Down Style: The sit-down driving style and spacious operator compartment reduce fatigue, enhancing focus and productivity during extended shifts.
Reliable Braking System: Equipped with responsive foot brake and hand brake systems, ensuring powerful and controlled stopping power in all operational conditions.
Pneumatic Tires: Features pneumatic tires for superior shock absorption and traction, making them equally effective on smooth warehouse floors and rough outdoor yards.
Why Choose the MYZG CPD30/35 for Your Heavy-Duty Fleet?
The decision to transition to electric material handling equipment is a commitment to efficiency, sustainability, and superior operational performance.
Diesel Power, Electric Benefits: Achieve the high capacity and ruggedness of a diesel forklift while enjoying the cost savings and clean operation of an electric forklift.
Li-ion Longevity: The long-life, maintenance-free Li-ion battery reduces replacement costs and ensures power consistency, unlike traditional batteries.
Safety and Compliance: Zero emissions allow seamless operation in sensitive indoor environments, ensuring compliance with increasingly strict global health and environmental regulations.
Exceptional ROI: Lower energy costs, minimal maintenance, and maximized uptime deliver a rapid and compelling return on investment compared to fossil fuel counterparts.
The MYZG CPD30/35 Li-ion Electric Forklift is the smart choice for businesses that are ready to embrace the future of heavy-duty material handling. Power your productivity the clean, efficient way.
