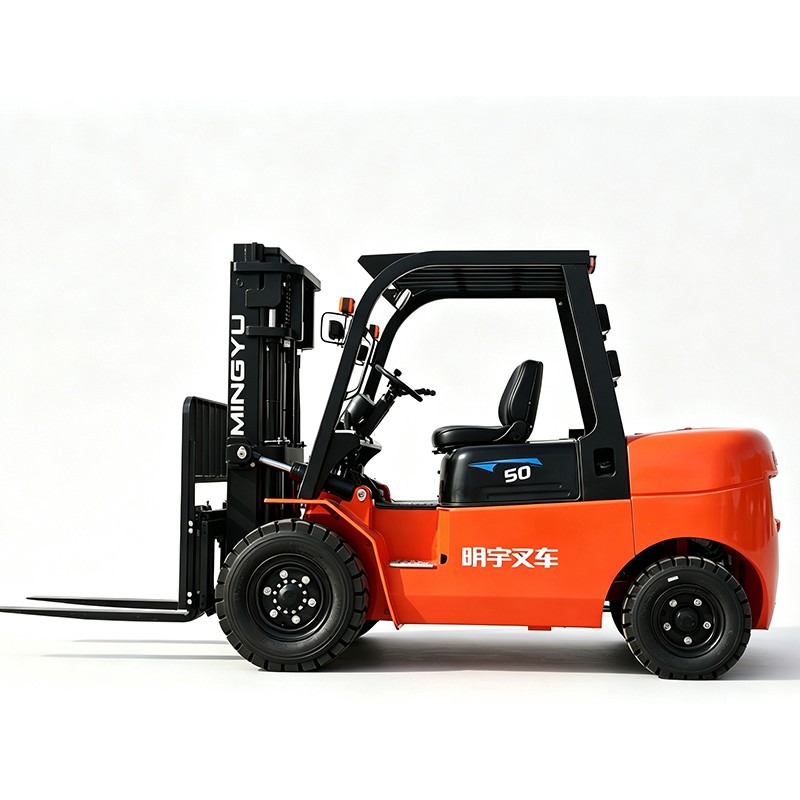

MYZG CPCD50 Diesel Forklift

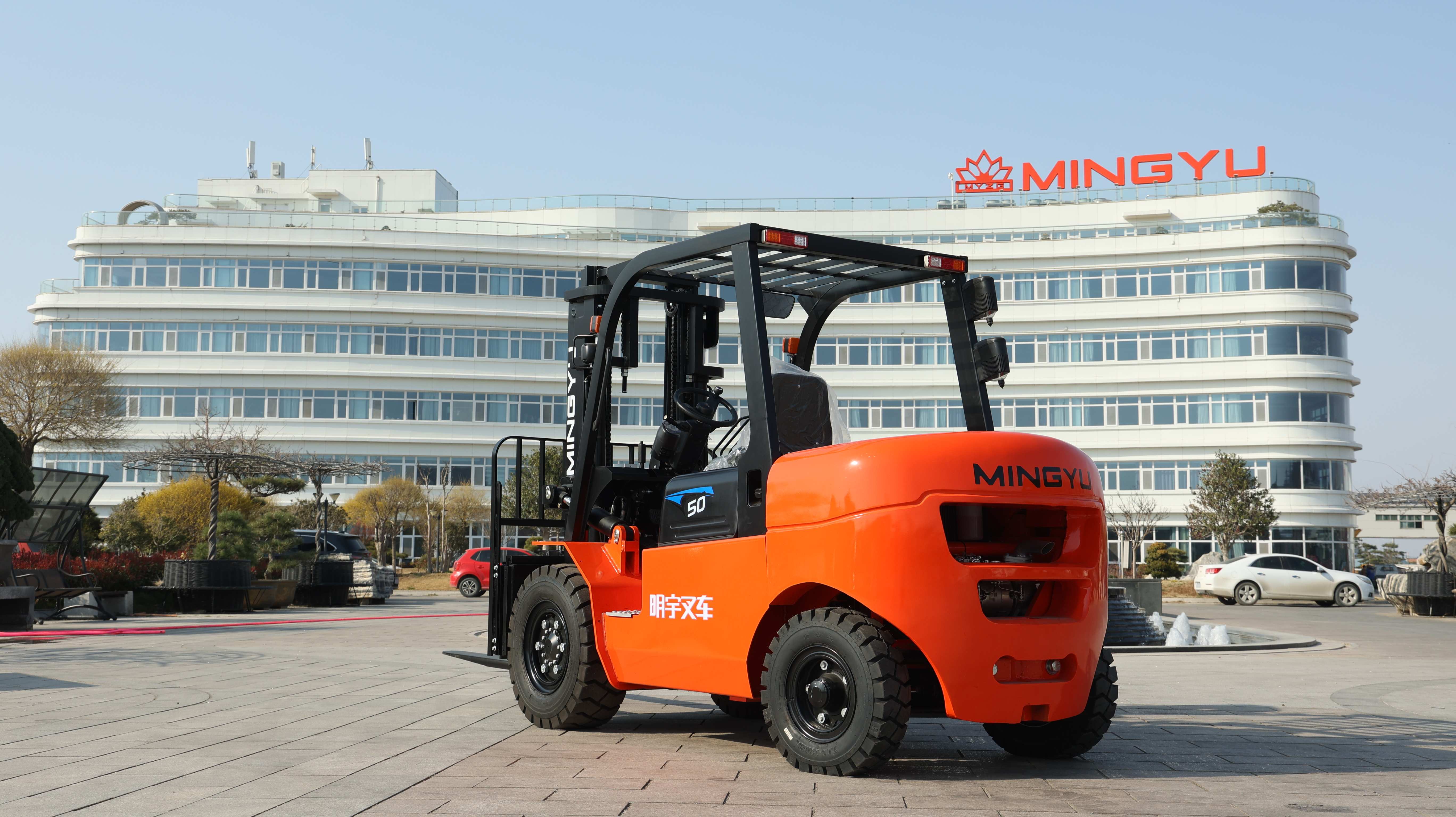

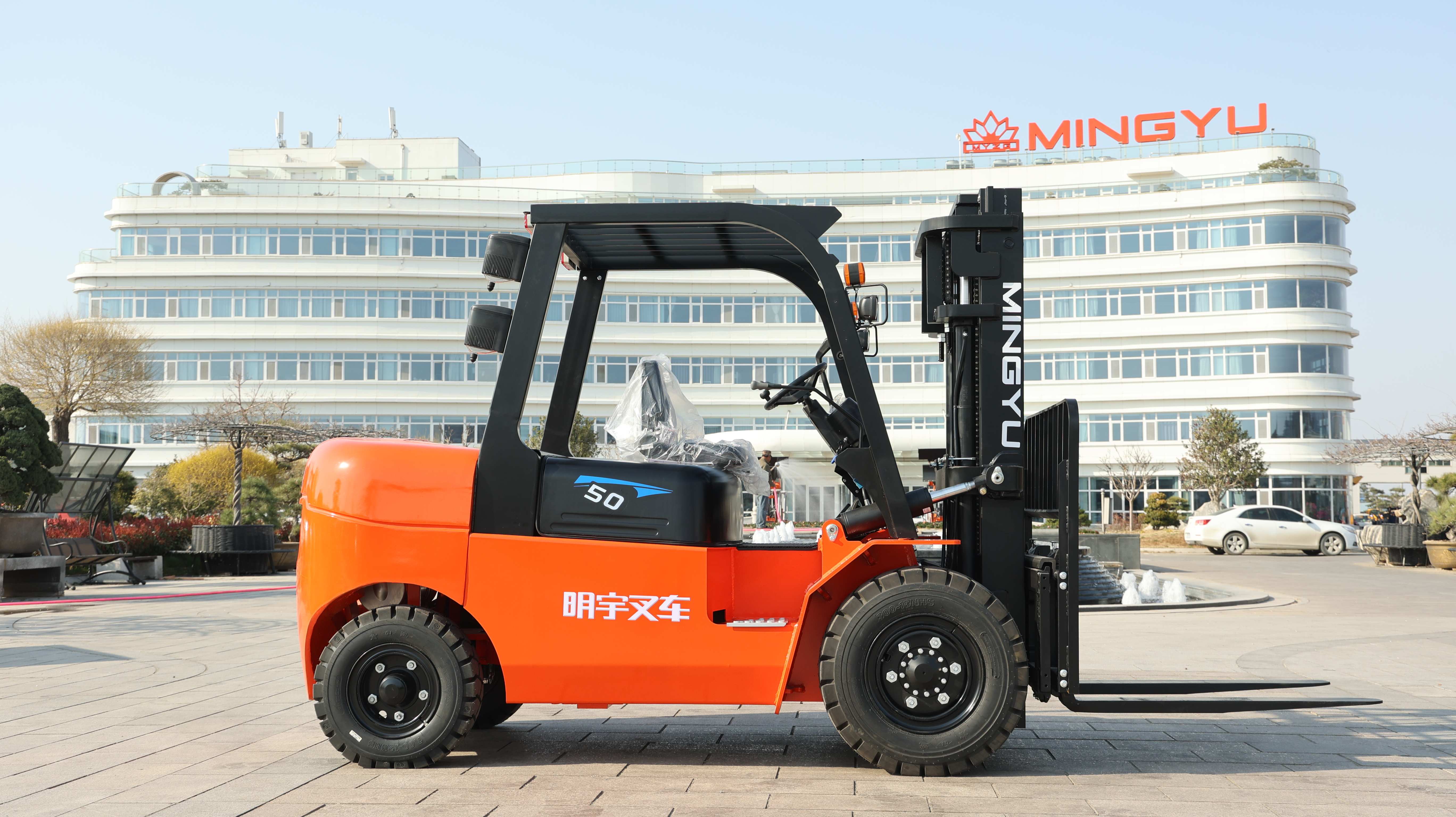

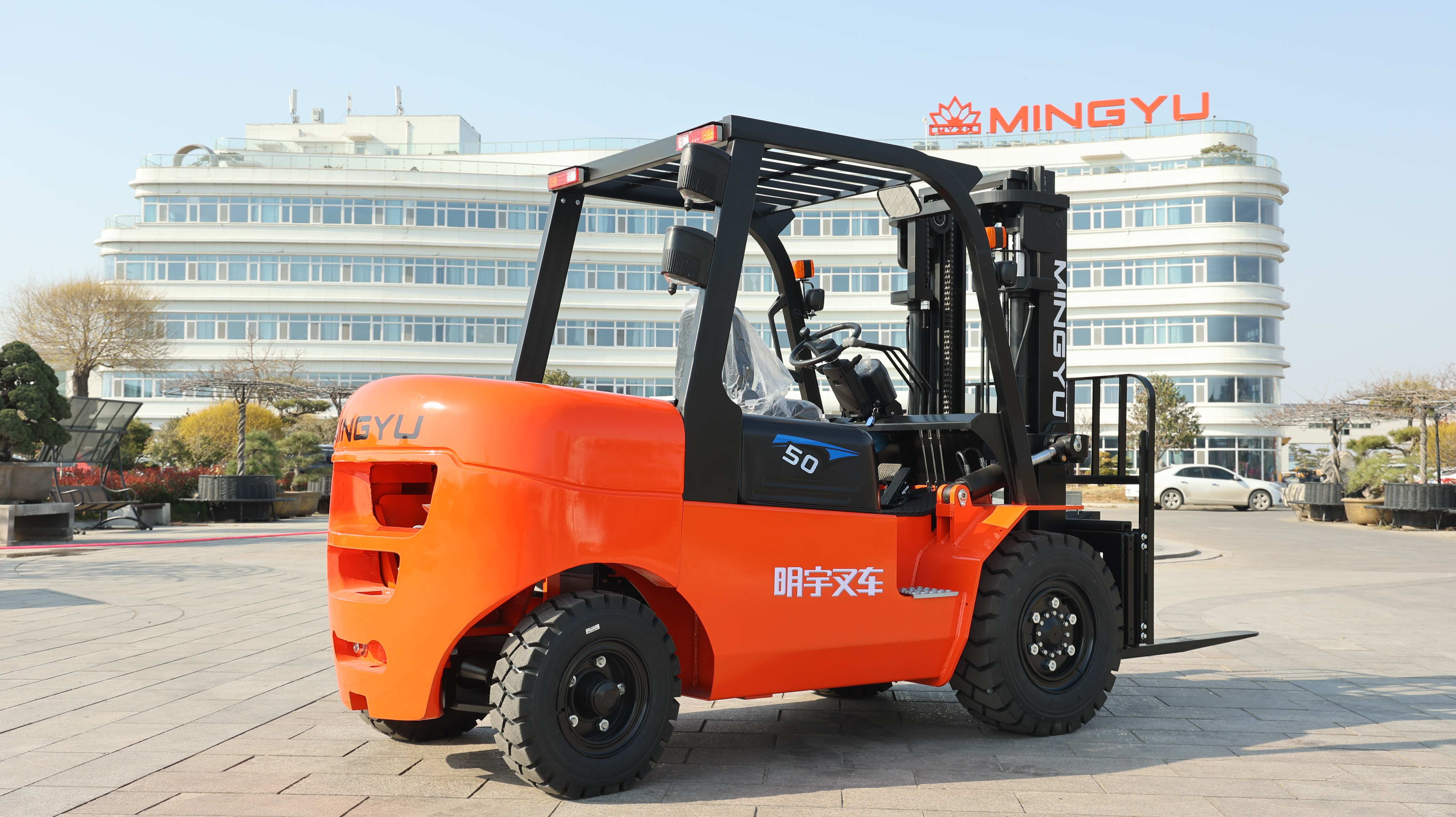

MYZG 5.0T-D Heavy-Duty Industrial Diesel Forklift (Model: 50)
Unstoppable Diesel Muscle: High-Torque Quanchai Engine, 25 Km/h Top Travel Speed, 20% Climbing Ability, and 6900 kg Ultra-Stable Heavy-Duty Frame.
Executive Overview: Massive Power & Raw Torque for Extreme Industrial Environments
The MYZG 5.0T-D (Model 50) 5-Ton Industrial Diesel Forklift is a heavy-capacity Internal Combustion (IC) counterbalanced truck built by Mingyu Heavy Industry (MYZG) to handle the world's most grueling material handling challenges. Purpose-engineered for nonstop continuous operations, this machine excels where high breakout force, rapid lifting speeds, and rugged all-weather outdoor durability are essential requirements.
Powered by a high-torque Quanchai diesel engine, the MYZG 5.0T-D boasts a rated lifting capacity of 5000 kg (11,000 lbs) at a 500 mm load center. Supported by an overall chassis weight of 6900 kg, heavy-duty pneumatic tires (300-15 front, 700-12 rear), a wide 2100 mm wheelbase, and a generous 150 mm ground clearance, this 5-ton diesel workhorse achieves a blazing top travel speed of 25 km/h, an industry-leading lifting speed of 490 mm/s, and a gradeability climbing angle of 20% under full load.
MYZG 5.0T-D Factory Technical Specifications
Review the comprehensive engineering and mechanical dataset for the MYZG 5.0T-D 5-Ton Heavy-Duty Diesel Forklift:
| Technical Specification Parameter | Factory Data Detail |
|---|---|
| Model Identification | 5.0T-D (Model 50) |
| Power Type | Diesel (IC Engine) |
| Engine Manufacturer / Brand | Quanchai Engine |
| Rated Load Lifting Capacity | 5000 kg |
| Load Centre Distance | 500 mm |
| Driving Style / Operator Position | Sit Down Style |
| Overall Length (With Fork / Without Fork) | 4305 mm / 3235 mm |
| Overall Chassis Width | 1480 mm |
| Mast Height (Lowered / Overhead Guard) | 2255 mm / 2290 mm |
| Max. Height at Working (Full Extension) | 4230 mm |
| Standard Lifting Height | 3000 mm |
| Minimum Turning Radius | 2970 mm |
| Gantry / Mast Tilt Angle (Front / Rear) | 6° / 12° |
| Max. Lifting Speed (Without Load / Full Load) | 490 mm/s / 430 mm/s |
| Max. Driving Speed (Without Load / Full Load) | 25 Km/h / 20 Km/h |
| Max. Climbing Angle / Gradeability | 20% |
| Overall Net Weight | 6900 kg |
| Wheel Layout (Driving Wheels / Steering Wheels) | 2 / 2 |
| Tyre Type (Front / Rear) | Pneumatic Tyre / Pneumatic Tyre |
| Tyre Size (Front / Rear) | 300-15 / 700-12 |
| Braking Systems (Driving Brake / Parking Brake) | Foot Brake / Hand Brake |
| Wheelbase / Minimum Ground Clearance | 2100 mm / 150 mm |
| Front Overhang / Rear Overhang | 555 mm / 582 mm |
| Front Wheel Track / Rear Wheel Track | 1180 mm / 1190 mm |
Engineering Breakdown & Key Product Advantages
1. Industrial Quanchai Diesel Engine & High-Speed Performance
Equipped with a proven, heavy-duty Quanchai diesel engine, the MYZG 5.0T-D delivers extreme torque at low RPMs, allowing rapid handling of massive 5000kg loads. The robust powertrain achieves impressive travel speeds of 25 km/h unladen and 20 km/h under full load. Furthermore, its hydraulic pump system delivers exceptional vertical lifting speeds of 490 mm/s (without load) and 430 mm/s (full load), significantly shortening work cycles in high-volume yards.
2. 6900kg Ultra-Heavy Machine Weight & 20% Climbing Ability
Stability is paramount when handling 5-ton loads at elevated heights. The MYZG 5.0T-D features a massive net weight of 6900 kg, providing a low, rigid center of gravity. Combined with a wide track width (1180 mm front / 1190 mm rear) and a 2100 mm wheelbase, this forklift safely negotiates steep 20% climbing angles under full loading—making it ideal for steep outdoor loading ramps and elevated port facilities.
3. Heavy Pneumatic Tires & 150mm Ground Clearance
Designed for demanding all-weather outdoor logistics, the 5.0T-D comes fitted with oversized deep-tread pneumatic tires (300-15 front driving wheels, 700-12 rear steering wheels). Together with a 150 mm minimum ground clearance, the forklift easily cruises across unpaved stone yards, mud, gravel roads, and rough construction terrain without losing traction or damaging undercarriage hydraulics.
4. Heavy-Duty Wide-View Mast (6°/12° Tilt) & Driver Ergonomics
The high-strength steel gantry structure supports mast tilt angles of 6° forward and 12° backward, allowing operators to cradle heavy, bulky loads securely during high-speed transport. The roomy operator platform features an ergonomic sit-down seat layout beneath a 2290 mm high overhead guard frame, providing superior visibility and operator protection throughout long working shifts.
Heavy Industrial Application Scenarios
The raw torque, 20% gradeability, and 6900 kg solid mass make the MYZG 5.0T-D diesel forklift the preferred choice for heavy-duty outdoor industries:
Lumber Yards & Timber Processing
Moving heavy logs, large timber packs, and plywood stacks across unpaved, uneven outdoor timber yards.
Stone Quarries & Concrete Plants
Lifting heavy granite slabs, precast concrete structures, and brick pallets in high-dust outdoor sites.
Steel Mills & Sea Ports
Loading flatbed trailers, moving steel coils, and handling heavy sea containers continuously across continuous 24/7 operations.
Frequently Asked Questions (FAQ)
Q: What engine powers the MYZG 5.0T-D diesel forklift?
A: The 5.0T-D is equipped with a high-performance industrial Quanchai diesel engine, famous for its high torque output, thermal efficiency, and easy global spare parts availability.
Q: What is the minimum turning radius for this 5-ton diesel forklift?
A: The minimum turning radius for the MYZG 5.0T-D is 2970 mm, allowing it to maneuver efficiently within outdoor storage bays and shipping yards.
Q: Can custom hydraulic attachments be fitted on this 5-ton forklift?

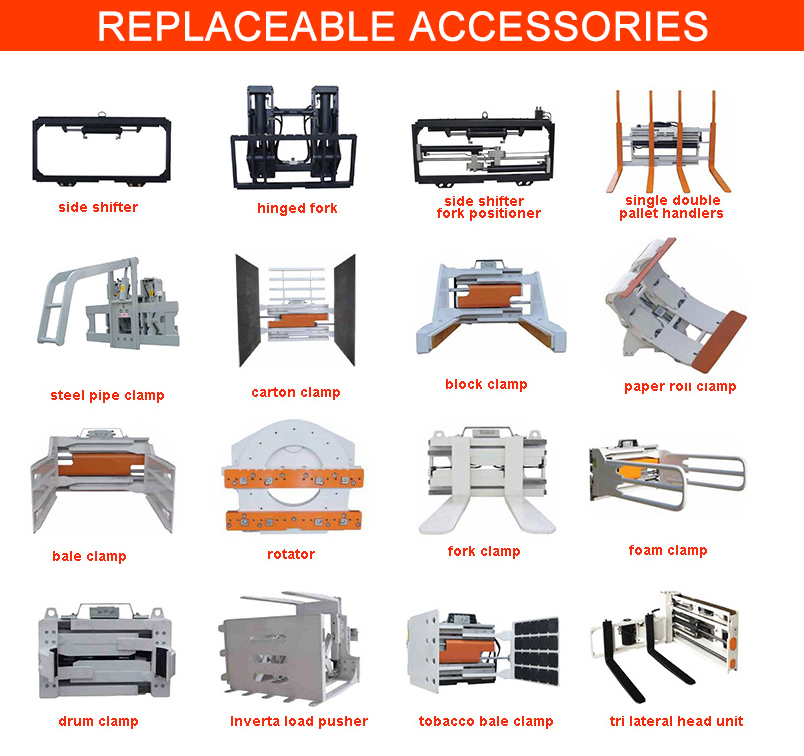

A: Yes, MYZG offers factory installation of third and fourth hydraulic valves to support side shifters, fork positioners, paper roll clamps, hinged forks, and block clamps.
Get a Direct Factory Wholesale Quote on the MYZG 5.0T-D Diesel Forklift!
Contact MYZG export sales team today for direct factory pricing, custom options (cabins, heaters, triplex full free lift masts), and international container shipping schedules.
