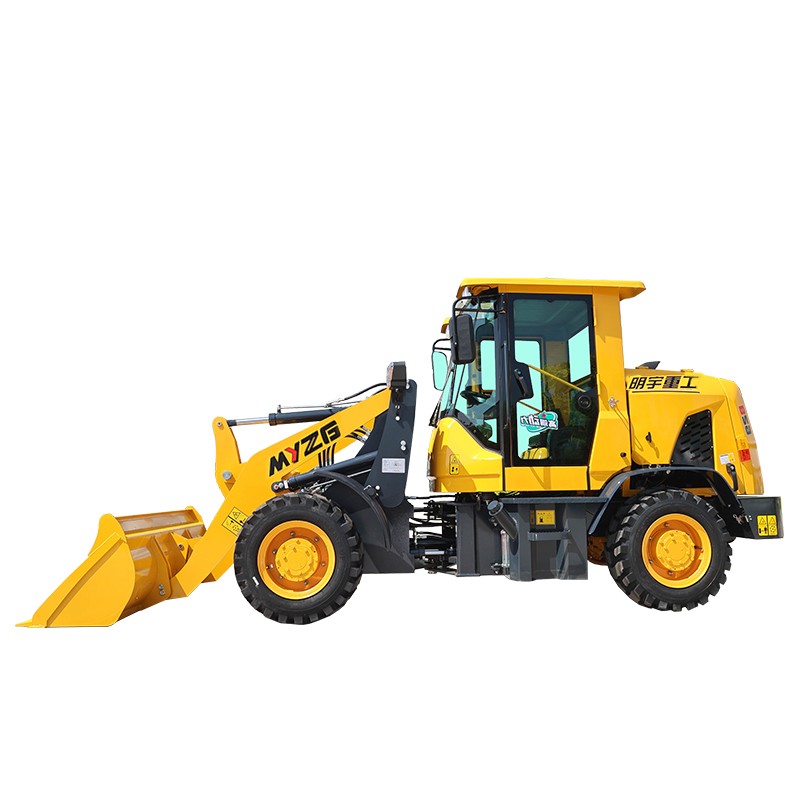

B29 wheel loader
Product Feature
Mingyu b29 is very compact and light, small turning radius, flexible control, wide
use of the environment, a multi-purpose machine save time and labor.
• Quanchai engine of Weichai Huafeng has the characteristics of low noise, low fuel consumption, reliable operation and long service life.
• The adoption of single-stage single-phase three-element hydraulic torque converter equipped with axis-fixed gearbox makes full use of engine power and increases the torque, ensuring the greater traction of complete vehicle.
• The single-plate rear frame and four-plate front frame adopt joint bearings, ensuring flexible operation and small turning radius.
• The optimized working device provides the huge breakout force of boom, the great full coefficient of bucket and high productivity.
• Load sensing hydraulic steering system is adopted. On the condition that the steering system is preferentially satisfied, the work device hydraulic system sharing one pump with the steering hydraulic system is supplied to reduce power consumption of hydraulic system and system power loss, and improve working efficiency.
• Service brake control adopts the double-booster pump air over caliper disc brake, which has the characteristics of great brake power, convenient dismantling, safety and reliability.
• With the adoption of domestic brand for key electric elements, electric system has been upgraded and improved its reliability and stability.
• The spacious and bright fully-closed cab provides broad vision and comfortable operation environment. The reliable overall structure layout and smooth streamline offers distinctive marks and elegant appearance.
Parameter
| Rated load capacity | 900kg |
| Rated bucket capacity | 0.5m3 |
| Operating weight | 2450kg |
| Engine model |
QUANCHAI 4B2-52M22 (EURO III / EURO V) |
| Rated power | 38kw |
| Rated speed | 2400 r/min |
| Dimensions | 4600*1600*2100mm |
| Dump height | 2700mm |
| Dump distance | 350mm |
| Min.turning radius | 3000mm |
| Wheel base | 2280mm |
| Wheeltrack | 1170mm |
| Tyre size | 10.5-16 |
The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
309° panoramic visibility gives the operator a very comfortable work environment in the cab.
Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
Single layer radiator and big range fin spacing for high efficiency and easy maintenance.

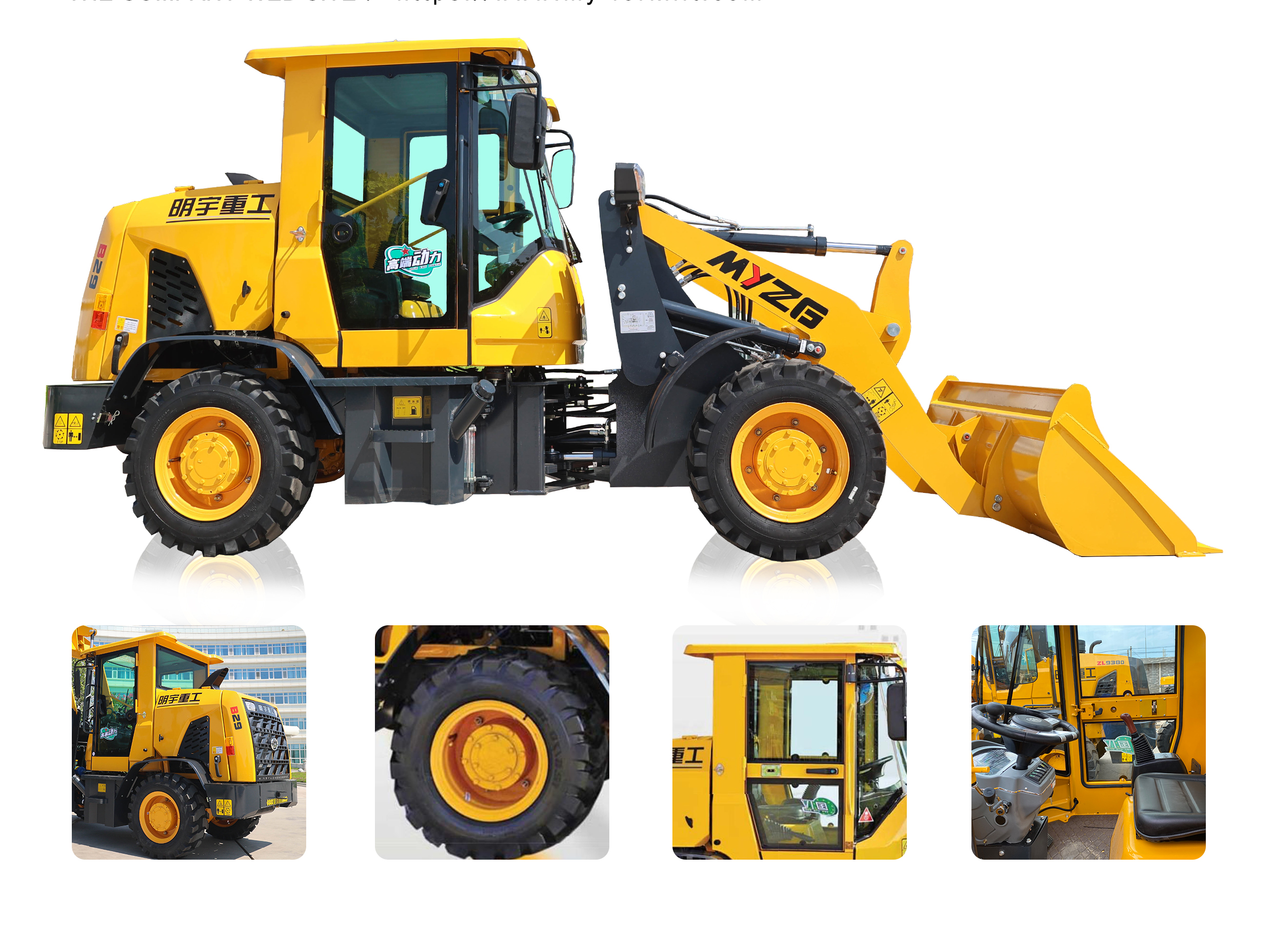

Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
