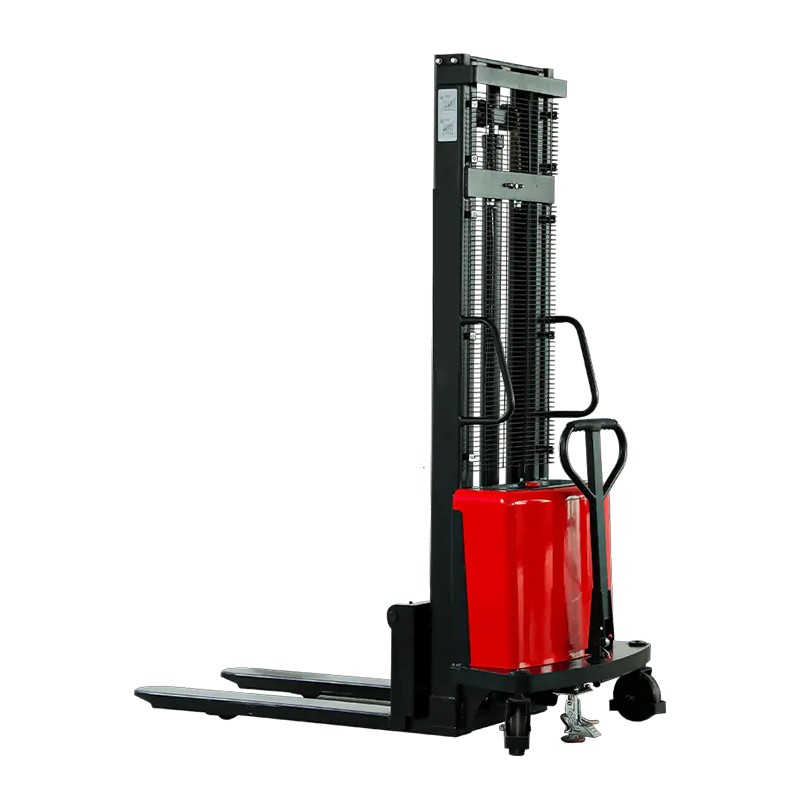

MYSBD Semi-electric stacker cross-leg
MYSBD SEMI-ELECTRIC STACKER CROSS-LEG
system. It provides smooth operation and an excellent driving experience, and is highly efficient.
Product features :
24V/210Ah Lead Acid Battery
AC 1.5KW Vertical Drive Motor
Optional: Controller Brand CURTIS
Fork Length/Width Customized
Fork Length/Width Customized

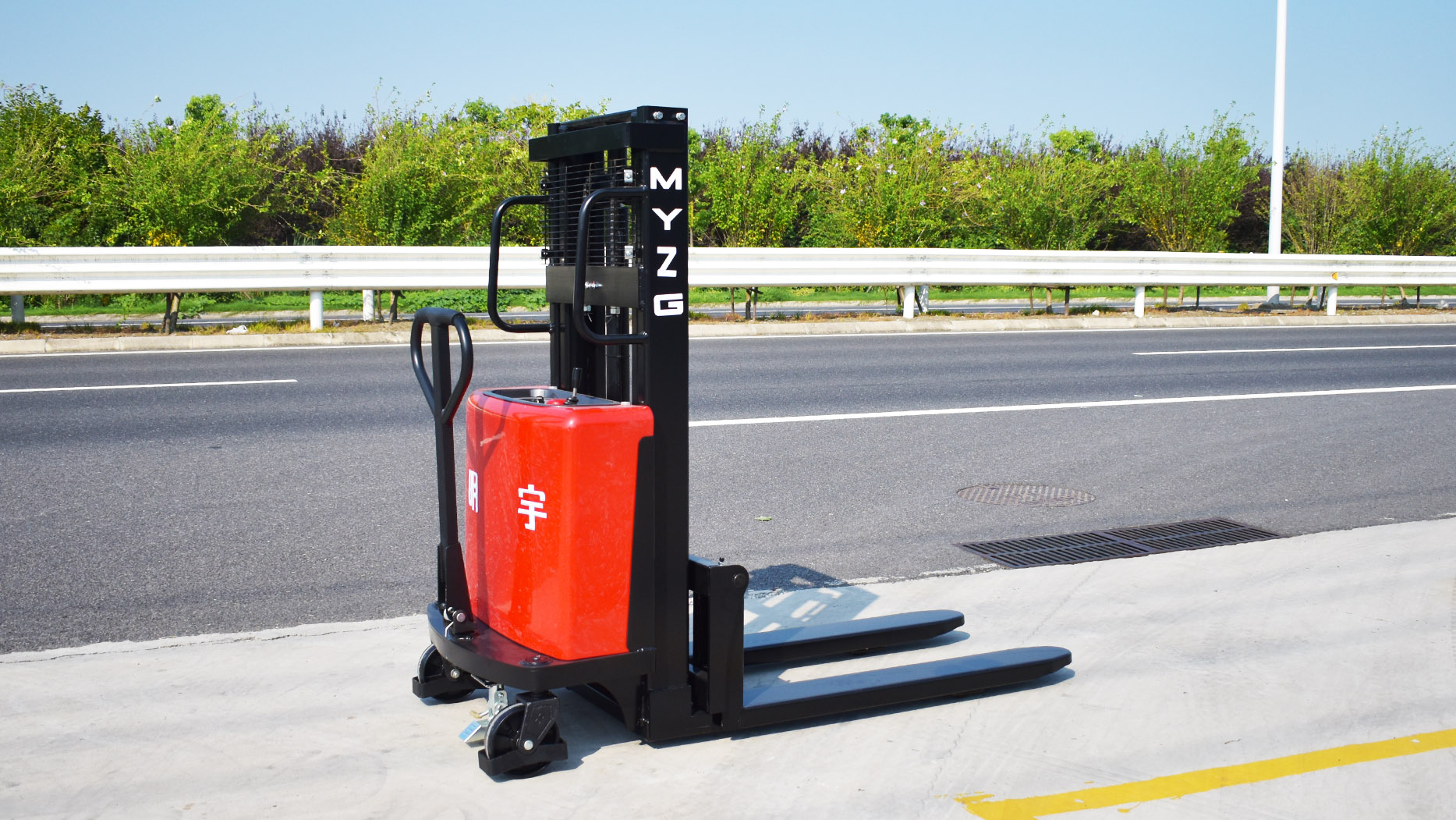

The MYZG SBD Semi-electric stacker cross-leg is a versatile and efficient material handling solution designed to enhance warehouse productivity and safety. This stacker combines the maneuverability of a manual stacker with the lifting power of an electric motor, offering a cost-effective and ergonomic alternative to fully electric models.
Key Features:
Semi-electric operation: Effortless lifting and lowering with the assistance of an electric motor, reducing operator fatigue.
Cross-leg design: Provides excellent stability and maneuverability in tight spaces.
Ergonomic design: Comfortable and easy to operate with intuitive controls and adjustable handles.
Reliable hydraulic system: Ensures smooth and efficient lifting and lowering operations.
Compact and maneuverable: Easy to navigate through narrow aisles and congested areas.
Durable construction: Built with high-quality components for long-term durability and reliability.
Optional features: Available with a range of optional features to suit specific needs, such as load wheels, forks, and mast heights.
| Model | SBD10/15/20 | |||
| Maximum load capacity | 1000/1500/2000kg | |||
| load center | 500mm | |||
| Overall length of frame | 1877mm | |||
| Overall width of frame | 770mm | |||
| Wheelbase | 1300mm | |||
| Fork size（length *width*thickness） | 1150*160*55mm | |||
| Fork outside width | 670mm | |||
| Fork lowered height | 85mm | |||
| Min frounf height | 28mm | |||
| Minimum turning radius | 1625mm | |||
| Front wheel | 80*70mm | |||
| Caster wheel | 180*50mm | |||
| Rated output（DC series motor） | 1.6kw | |||
| Battery Voltag | 12V | |||
| Battery Capacity | 120Ah | |||
| Mast | Max.Lifting height | Mast overall height | Mast overall height | Service weight |
| Single mast | 1600 mm | 2080 mm | 2080 mm | 350 kg |
| 2-stage mast | 2000 mm | 1580 mm | 2550 mm | 415kg |
| 2500 mm | 1830 mm | 3050 mm | 435 kg | |
| 3000 mm | 2080/1980 mm | 3550/3450 mm | 450 kg | |
| 3500 mm | 2330 mm | 4050 mm | 490 kg | |
Benefits:
Increased productivity: Reduces operator fatigue and improves lifting efficiency compared to manual stackers.
Enhanced safety: Reduces the risk of injuries associated with manual lifting.
Improved ergonomics: Provides a more comfortable and ergonomic working environment for operators.
Cost-effective: Offers a more affordable alternative to fully electric stackers.
Versatility: Suitable for a wide range of applications, including warehousing, logistics, and manufacturing.
Space-saving: Compact design allows for efficient use of warehouse space.
Applications:
Warehousing and distribution centers
Manufacturing plants
Retail stores
Logistics and transportation
Any application requiring efficient and safe material handling
Optional Features:
Load wheels
Different fork sizes
Adjustable mast heights
Safety features (e.g., emergency stop button)
Safety Instructions:
Always refer to the operator's manual for safe operation and maintenance procedures.
Inspect the stacker before each use for any signs of damage or wear and tear.
Operate the stacker on a stable and level surface.
Avoid overloading the stacker.
Use appropriate personal protective equipment (PPE).
