MYCPDB Standard counterbalance Electric Stacker

Short Description:

Widely used in factories, enterprises, logistics and warehouses and other work scenarios. ...

Maximum load capacity: 1500/2000kg
Overall length/width of frame: 1730/1570mm
Fork size（length *width*thickness）: 1070*100*35mm
Fork lowered height: 90mm

Send email to us

Product Details

Product Tags

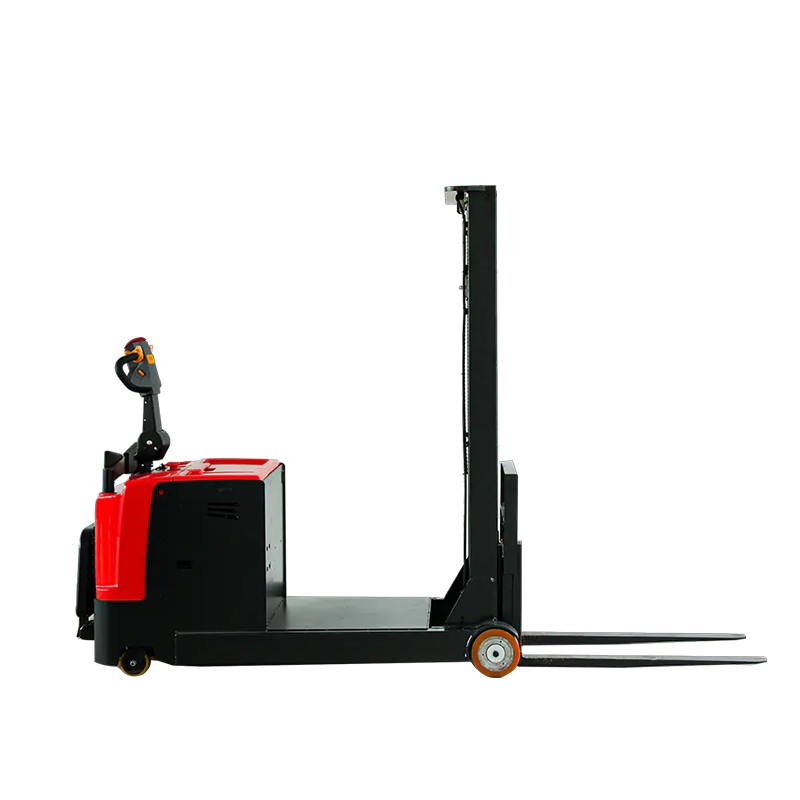

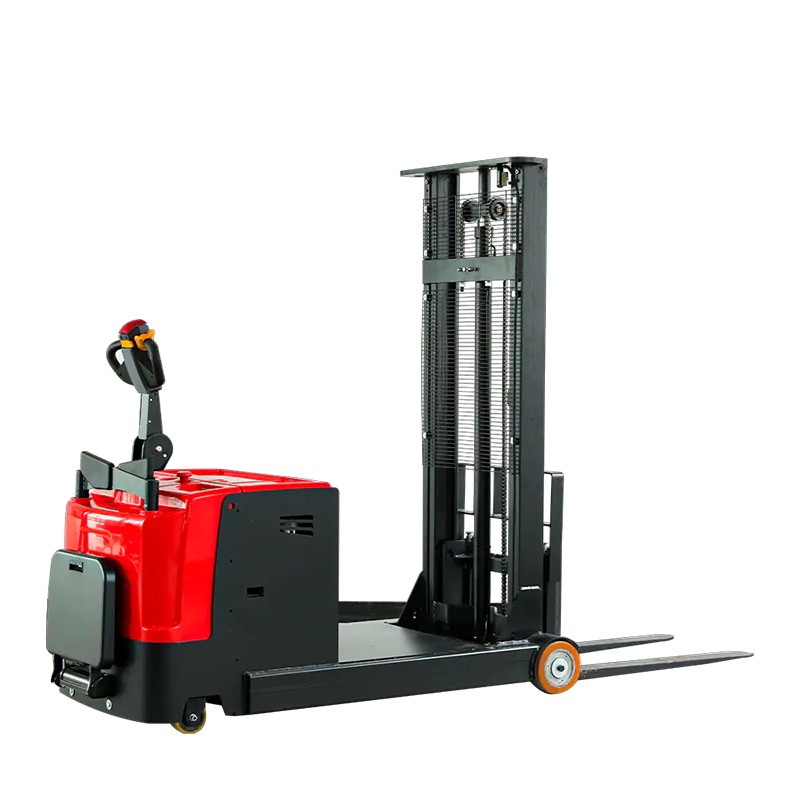

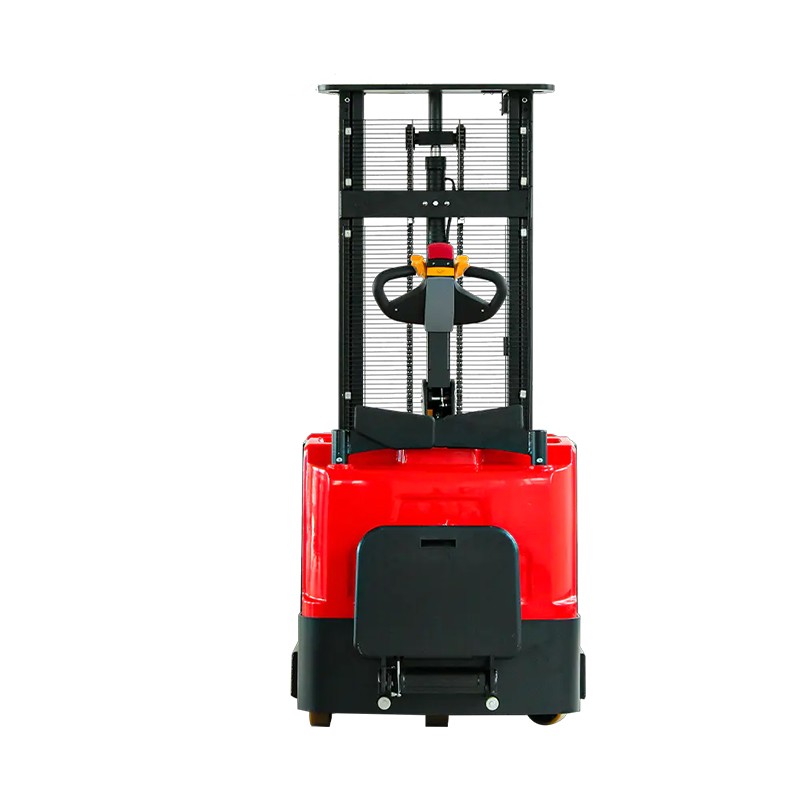

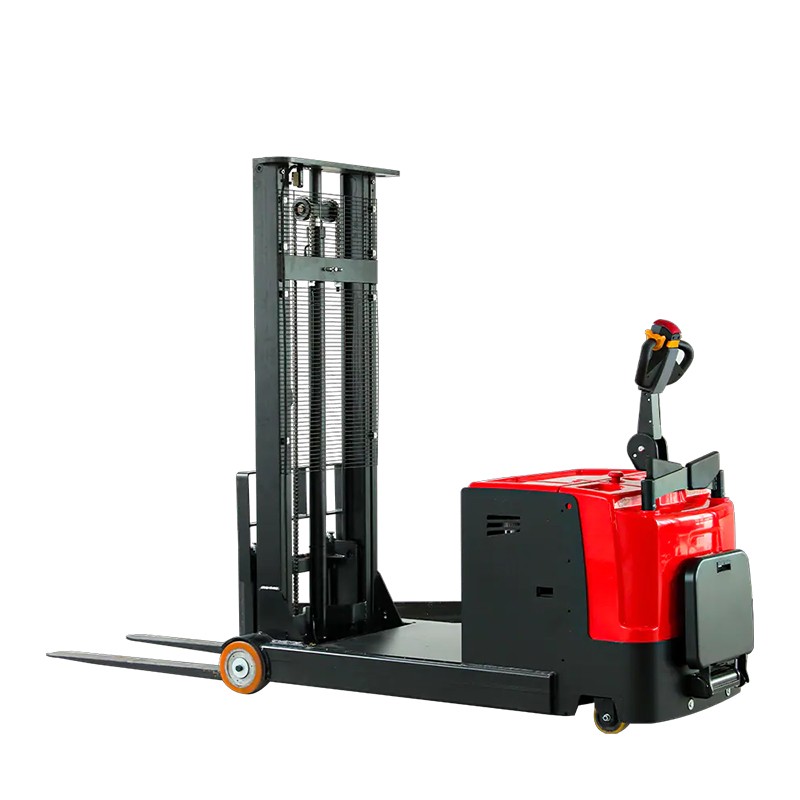

MYCPDB STANDARD COUNTERBALANCE ELECTRIC STACKER

Widely used in factories, enterprises, logistics and warehouses and other work scenarios.

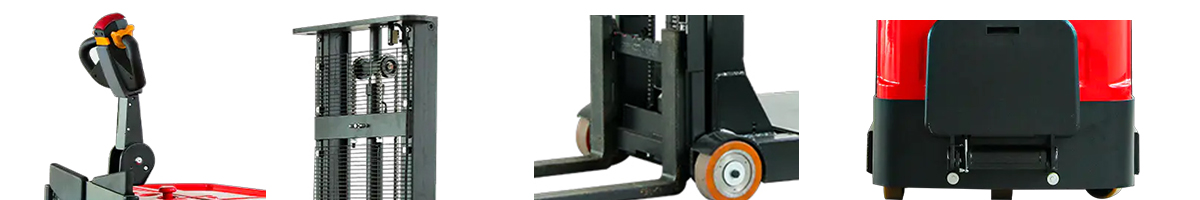

Product features :

Advantages:

• Using 12#C+J special steel mast,the structure is more stable;

• Configure EPS electronic power steering system；

• BUCHER high-performance pump station, more stable lifting;

• CURTIS controller, excellent performance;

• 24V/210Ah large-capacity power battery,guaranteed strong and durable power;

• 1.5Kw vertical driving wheel with anti-vibration device and small turing radius;

• Tilting system forks easy for loading and stacking；

• With emergency stop switch and electricity lock button, and multi-valve controlling levers；

• AC traction motor without brush with regenerative braking.

The product electric stacker has passed the CE certification and is mainly applied in petroleum, chemical engineering, pharmacy, light textile, military engineering, painting, coal, port, railroad, warehouse, bridge back, etc. For load and unload, pile and move.

Model				CPDB15/20
Maximum load capacity				1500/2000kg
load center				500mm
Travel speed without load/with load				4.5/3.5km/h
Lifting speed without load/with load				80/50mm/s
Lowered speed without load/with load				130/140mm/s
Ascend slope ability without load/with load				8/5%
Overall length/width of frame				3150/1040
Wheelbase				1555mm
Fork size（length widththickness）				117010035/40mm
Fork outside width				220-680mm
Min frounf height				35/40mm
Fork lowered height				60mm
Minimum turning radius				2245mm
Minimum intersecting aisie				3860mm
Front wheel				210*85mm
Drive wheel				230*75mm
Caster wheel				124*60mm
Drive motor Rated output/DC motor				1.5kw
Hoist motor Rated output/DC motor				2.2kw
Battery Voltag/Capacity				210V/Ah
Battery Weight				195kg
Mast	Max.Lifting height	Mast overall height	Mast overall height	Service weight
Single mast	1600 mm	2130 mm	2130 mm	1500 kg
2-stage mast	2000 mm	1630 mm	2600 mm	1530kg
	2500 mm	1880 mm	3100 mm	1680 kg
	3000 mm	2130mm	3600 mm	1735 kg
	3500 mm	2380 mm	4100 mm	1930 kg

1)It adopts three mast and chain driving technology.
2)The controlling system is programmable based on the imported advanced foreign technology.
3)Moving type: Electric driving and climbing to a certain gradient.
4)The rising height and load can be changed as required by the customers.
5)There are complete safety equipments and their technical performance has reached the advanced level as the international product.
