MYCDD-E High configuration Standing Electric Stacker

Short Description:

Manufactured to sturdy, accurate and robust standards. This series of stacker is powerful, easy to use and excellent in control....

Maximum load capacity: 1500/2000kg
Overall length/width of frame: 2130/850mm
Fork size（length *width*thickness）: 1150*165*55mm
Fork lowered height: 90mm

Send email to us

Product Details

Product Tags

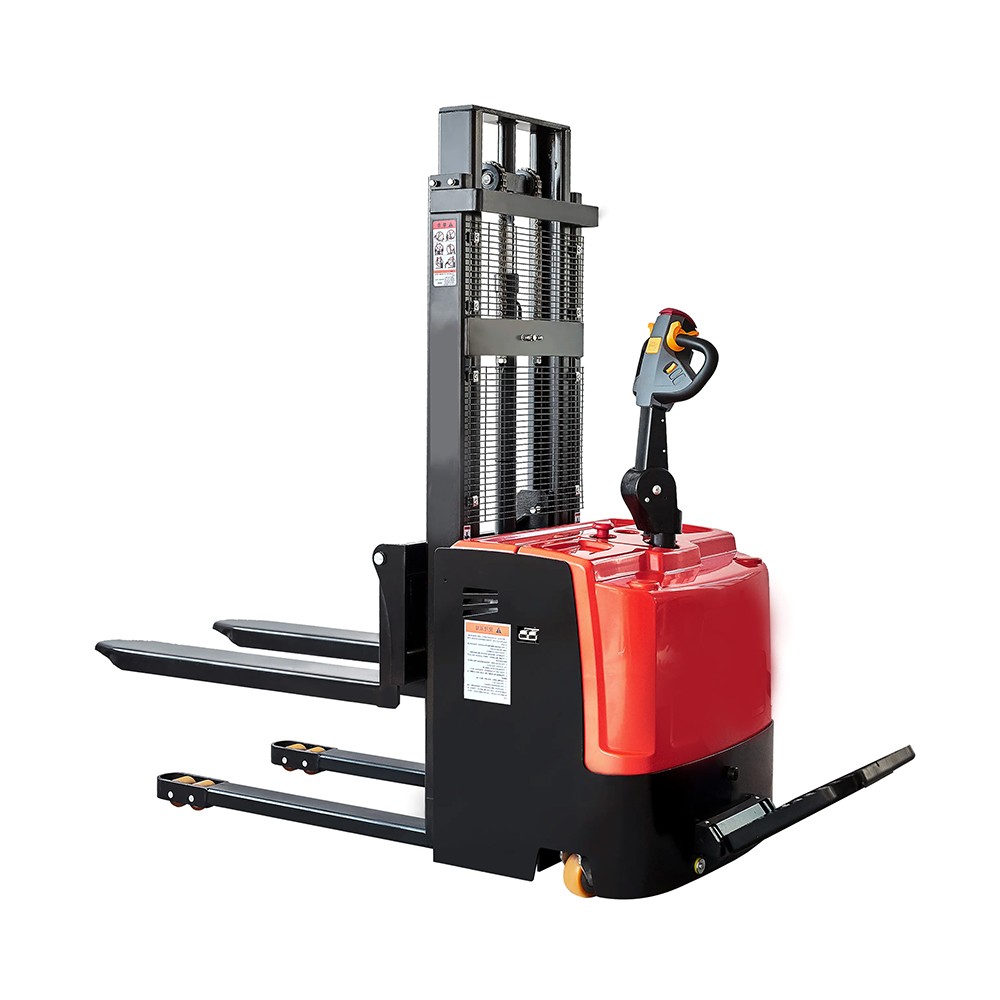

CDD-E HIGH CONFIGURATION STANDING ELECTRIC STACKER

Manufactured to sturdy, accurate and robust standards. This series of stacker is powerful, easy to use and excellent in control.

The load can reach 2T, and the lifting height is from 1.6M to 5M. It is widely used for high-level shelf stacking in large warehouses.

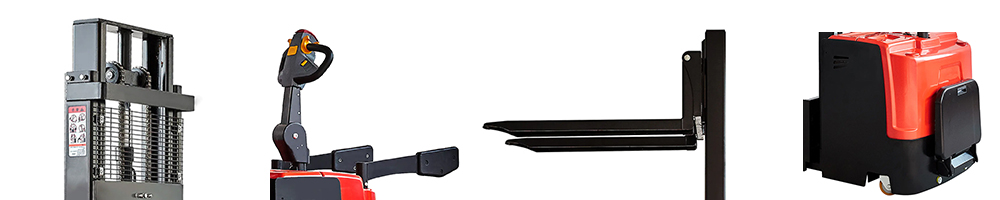

Product features :

Advantages:

• Configure EPS electronic power steering system；

• BUCHER high-performance pump station, more stable lifting;

• CURTIS controller, excellent performance;

• 24V/210Ah large-capacity power battery provides longer working time;

• 1.5Kw vertical driving wheel with anti-vibration device;

• The multi-function display instrument shows the electric quantity, malfunction, and accumulative working hours.

• Emergency reversing device in the handle provides higher safety for the whole operation.

• Built-in pressure relief valve protects the trucks from overloads,increases the reliability；

• Supporting legs in both sides for triplex mast.

• Fixed forks/Adjustable forks are optional, suitable for more work scenarios.

Company Introduction

Model				CDD15/20E
Maximum load capacity				1500/2000kg
load center				600mm
Travel speed without load/with load				5/4.5km/h
Lifting speed without load/with load				110/80mm/s
Lowered speed without load/with load				100/110mm/s
Ascend slope ability without load/with load				8/5%
Overall length/width of frame				2130/850
Wheelbase				1370mm
Fork size（length widththickness）				115016555mm
Fork outside width				550/685mm
Min frounf height				30mm
Fork lowered height				90mm
Minimum turning radius				2070mm
Minimum intersecting aisie				2985mm
Front wheel				80*70mm
Drive wheel				230*80mm
Caster wheel				115*55mm
Drive motor Rated output/DC motor				1.5kw
Hoist motor Rated output/DC motor				2.2kw
Battery Voltag/Capacity				24/210V/Ah
Battery Weight				195kg
Mast	Max.Lifting height	Mast overall height	Mast overall height	Service weight
Single mast	1600 mm	2080 mm	2080 mm	835 kg
2-stage mast	2000 mm	1580 mm	2550 mm	925kg
	2500 mm	1830 mm	3050 mm	940 kg
	3000 mm	2080/1980 mm	3550/3450 mm	975 kg
	3500 mm	2330 mm	4050 mm	990 kg

1).AC motor drive with high efficiency,no need to replace carbon brush,very good ramp starting performance.

2).Two model function can control the speed of lift and lowering.

3).Low center of gravity,excellent stability for operation.

4).Small turning radius,good turning performance.

5).With advanced variable frequency AC motor free maintenance and excellent performance.

6).Can control the speed of driving and lifting in the same time.

7).Shock absorber system support good noise reduction.

8).Wide view mast and clear visibility.

9).With full free lifting,can work in the limited roof environment.

10). Import proportional hydraulic valve,adjustable speed for lifting/lowering.

11). Multi-function display:battery status,hour meter,fault code,slow running state,etc.

12). Big power controller(350A)with big power electric motor(10KW),support excellent reliability

13). Double scissors reach fork let the reach distance up to 1000mm.

14). The mast fixed with the frame,when fork move forward,the mast can become the balance weight,reduce the total service weight.

15). With advanced 36V electric control system,smaller electric current,ensure the reliability of the battery system.

16). High speed of lifting and lowering,300% faster than normal type truck.
