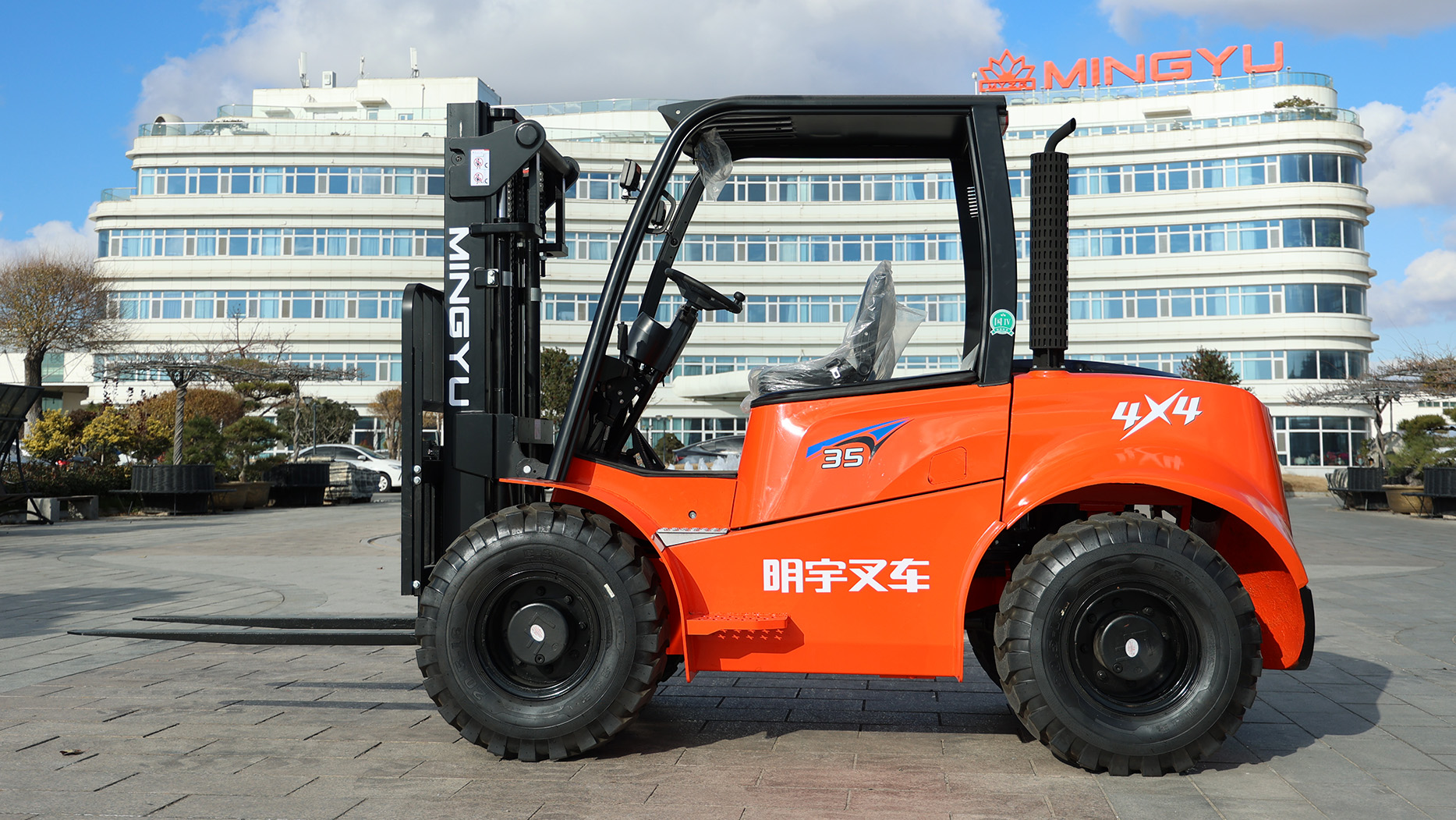

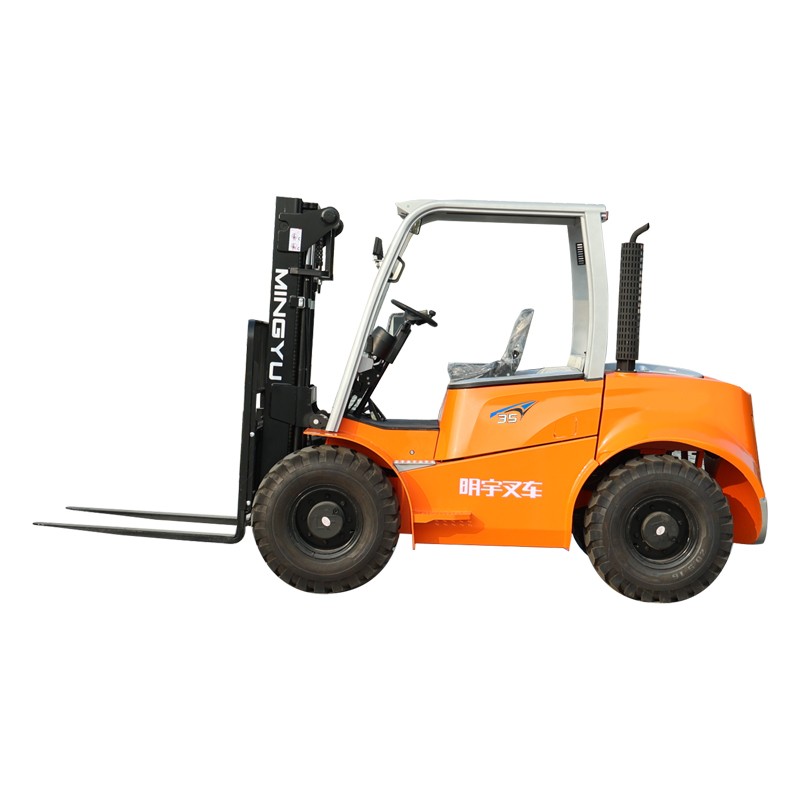

MY-CPCY35S off-road forklift
Product Feature
The MYZG(ZGFORKLIFT) Rough Terrain forklift comes available in 2WD and 4WD, with high clearance and wide cross-country tires. Perfect for soft or uneven yards and winter usage.
Higher ground clearance, the angle of the mast is up to 10°（F）/12（R）,guarantee to pass well;
Strong power, large climbing slope, high speed, with domestic and foreign well-known brands of engine;
Equipped with super wide cross country tires, off-road performance is good;
High exhaust is standard configuration, ensure the working environment is good.
Parameter
| Model | CPC35 | |
| Power type | diesel | |
| load capacity | 3500kg | |
| Load centre distance | 600mm | |
| opration mode | Driving style | |
| length with fork | 4535mm | |
| length without fork | 3315mm | |
| width | 1590mm | |
| high of no-lifting | 2350mm | |
| hight of roof gard | 2425mm | |
| Max height during operation | 4370mm | |
| wheel base | 2030mm | |
| front overhang | 565mm | |
| rear overhang | 720mm | |
| front track width | 1260mm | |
| rear track width | 1260mm | |
| ground clearance | 290mm | |
| lifting height | 3500mm | |
| Max turning radius | 3835mm | |
| Max right angle channel width | 5820mm | |
| gantry inclination angle | 10/12° | |
| Max lifting speed without load | 450mm/s | |
| Max lifting speed with full load | 400mm/s | |
| Max operating speed without load | 30Km/h | |
| Max operating speed with full load | 28Km/h | |
| Max climbing angel without full load | 30% | |
| weight unladen | 5430Kg | |
| number of wheels | 2/2 | |
| tyre | pneumatic tyre | |
| front tyre size | 20.5 | |
| rear tyre size | 20.5 | |
| Engine model |
Xichai/ Quanchai/Cummins/Mitsubishi
|
|
ELEVATE PRODUCTIVITY
Operator Presence System (OPS)
Audible and visual alarms
LED working, turn and tail lights
Low mounted LED strobe light
Optional weighing system; to improve operational efficiency
Optional cab and screen configurations
Simple and clear dash; keeping the operator informed
Optional rear grab handle with horn button, mirror and front and rear cameras to assist operators in specific applications
Secure overhead guard
ENHANCED DRIVER COMFORT
Driver fatigue minimised by full suspension seat
Adjustable steering column and seat to suit all operators
Low entrance step, large uncluttered floor space and ergonomically positioned pedals
Optional air conditioning and heater
SIMPLE SERVICEABILITY AND LOW COST OF OWNERSHIP
High quality and robust components, with efficient filtration and effective cooling to significantly reduce wear and tear
All serviceable parts are easy to access; allowing for fast and straightforward maintenance
Computer based diagnostics are not required
Special rough terrain factory forks required*
Maintenance costs and requirements are reduced by simple, readily available, genuine and cost effective replacement parts
LOW COST OF OWNERSHIP
The use of high quality and robust components within the UX range deliver a reliable operation with limited wear and tear. This is especially true for the rough terrain series, where the trucks can withstand challenging applications and terrains. Maintenance costs and requirements are further reduced by simple, readily available, genuine and cost effective replacement parts.
HYDRAULICS
High quality cylinders with hard chrome rods reduce seal wear for long life. A full-flow, low pressure filter on the return line keeps the hydraulic oil clean, which helps to minimise seal and pump wear. In addition, this keeps the control valve in good condition, leading to low service costs.

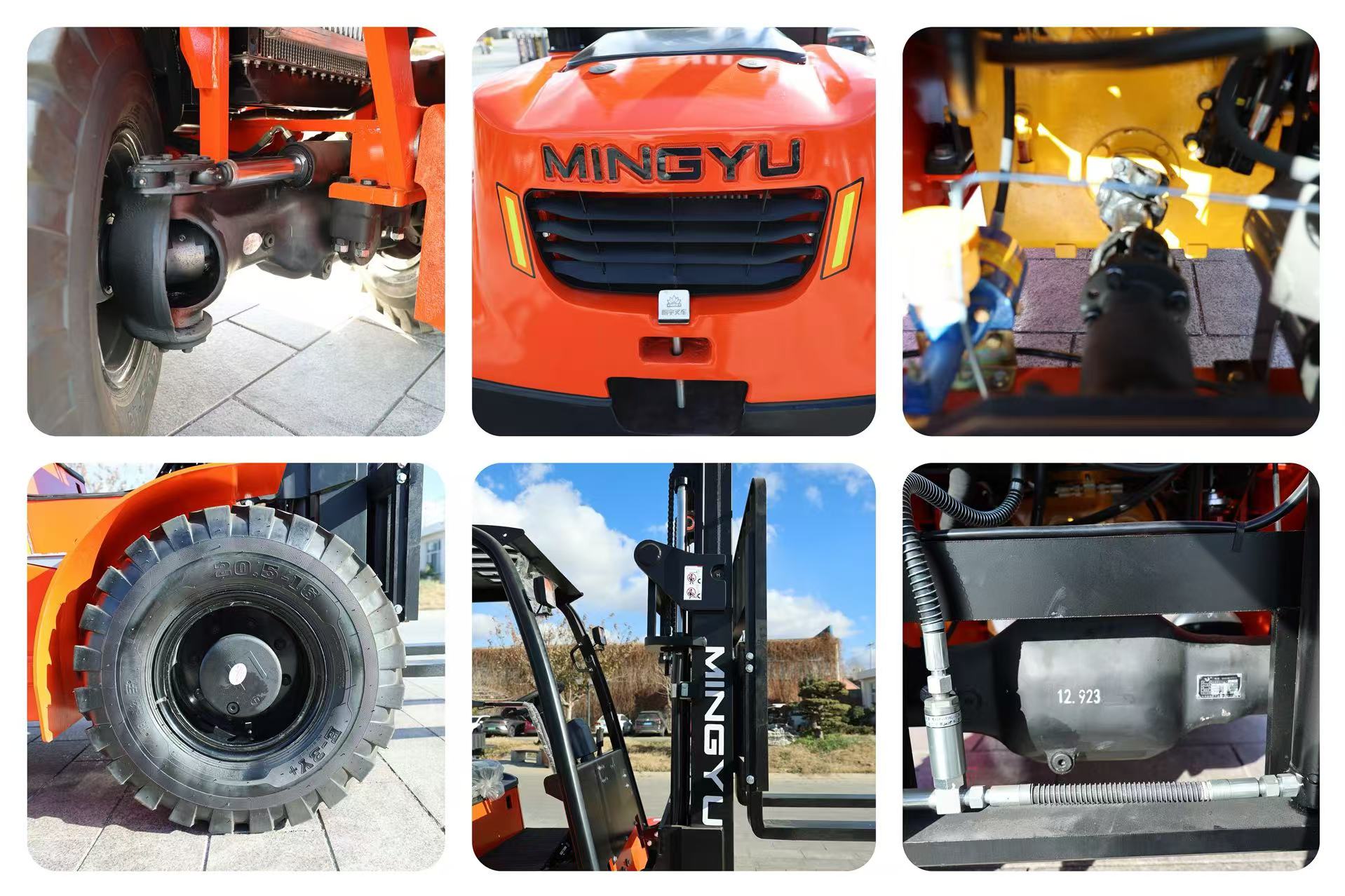

Detail
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG(zgforklift) has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
