Introduction

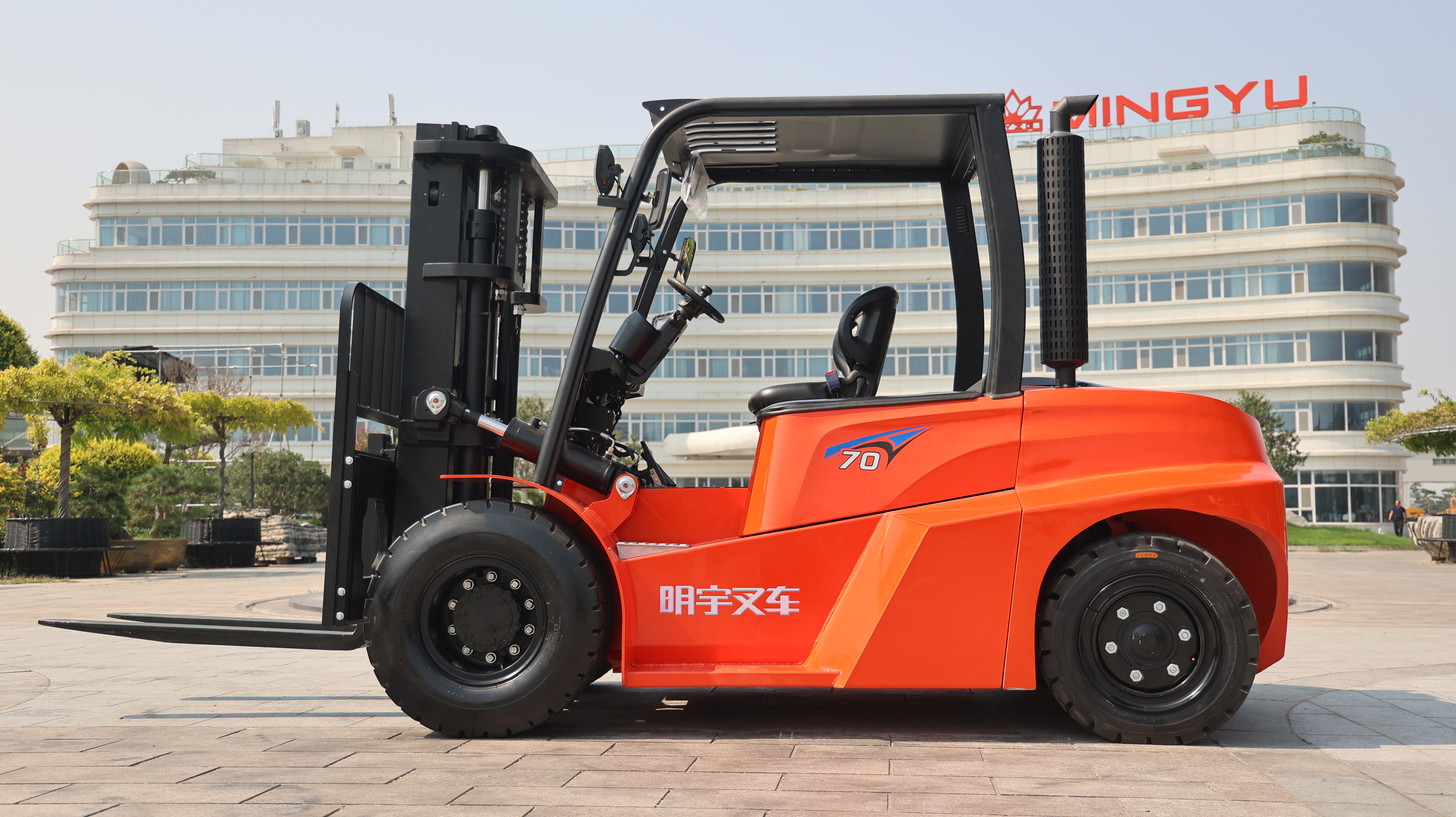

Regular maintenance of your diesel forklift is crucial to ensure its optimal performance and longevity. One essential maintenance task is replacing the fuel filter. The fuel filter removes contaminants from the fuel, preventing them from entering the engine and causing damage. This article will guide you through the steps involved in changing a fuel filter on a diesel forklift.

Identifying the Fuel Filter

The location of the fuel filter can vary depending on the specific forklift model. However, it is typically found in a readily accessible location, such as:

• Engine compartment: This is the most common location.
• Frame-mounted: The filter may be mounted on the frame of the forklift.
• Fuel tank: In some cases, the filter may be located inside the fuel tank.

To identify the fuel filter, look for a cylindrical component with fuel lines connected to it. It often has a transparent bowl or a pressure relief valve on top.

Preparing for the Filter Change

Safety First:

• Wear protective gear: Always wear safety glasses, gloves, and appropriate clothing to protect yourself from fuel spills and potential injuries.
• Fire extinguisher: Keep a fire extinguisher nearby as a precaution.
• Park the forklift: Park the forklift on a level surface and engage the parking brake.

Draining the Fuel System:

• Locate the drain plug: This is usually located at the bottom of the fuel filter housing.
• Place a drain pan: Position a drain pan beneath the drain plug to collect the fuel.
• Open the drain plug: Carefully open the drain plug to allow the fuel to drain into the pan.

Disconnecting the Fuel Lines:

• Use a wrench: Use a wrench to loosen the clamps securing the fuel lines to the filter.
• Disconnect the lines: Carefully disconnect the fuel lines from the filter, taking care not to damage the fittings.
• Place rags or absorbent materials: Use rags or absorbent materials to soak up any fuel spills.

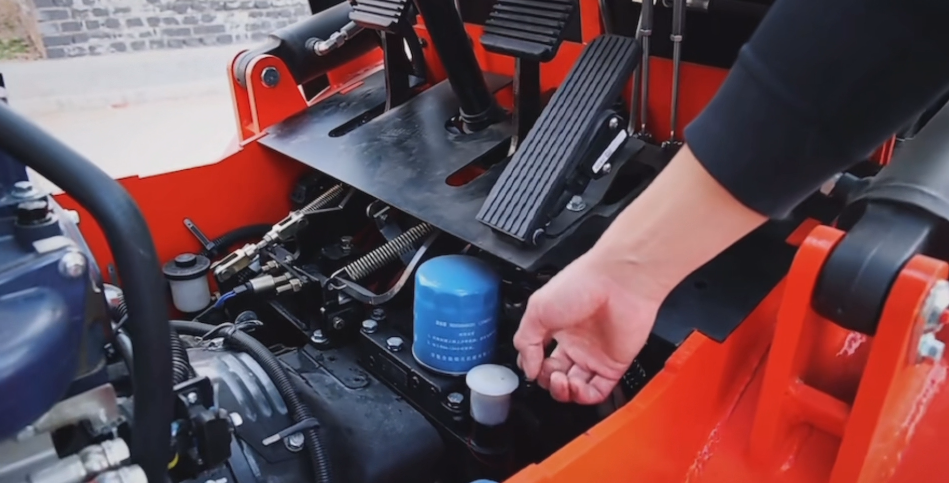

Removing the Old Filter

1. Loosen the filter housing: Use a wrench to loosen the bolts securing the filter housing.
2. Remove the filter: Once the bolts are loose, carefully remove the old filter from the housing.
3. Inspect the old filter: Inspect the old filter for any signs of debris, water, or other contaminants. This can help identify potential issues with the fuel system.

Installing the New Filter

1. Prepare the new filter: Ensure the new filter is compatible with your forklift model.
2. Apply a light coat of fuel: Apply a light coat of clean diesel fuel to the O-ring on the new filter.
3. Insert the new filter: Carefully insert the new filter into the housing, aligning the O-ring with the sealing surface.
4. Tighten the filter housing: Tighten the filter housing bolts to the specified torque.

Reassembling the Fuel System

1. Reconnect the fuel lines: Connect the fuel lines to the new filter, ensuring a tight and secure fit.
2. Tighten the clamps: Tighten the clamps on the fuel lines to prevent leaks.

Priming the Fuel System

1. Turn the ignition key: Turn the ignition key to the "On" position but do not start the engine.
2. Cycle the ignition: Turn the ignition key on and off several times to prime the fuel pump and fill the fuel system.
3. Check for leaks: Inspect the fuel lines and filter housing for any signs of leaks.

Starting the Forklift

Once the fuel system is primed, you can start the forklift. If the engine does not start immediately, repeat the priming process.

Additional Tips and Troubleshooting

• Use high-quality fuel filters: Using a high-quality fuel filter can help to protect your engine and improve fuel efficiency.
• Regular maintenance: Replace the fuel filter according to the manufacturer's recommended schedule.
• Fuel quality: Use clean, high-quality diesel fuel to minimize the risk of engine problems.
• Common problems: If the forklift is difficult to start or experiences poor performance after a fuel filter change, check for air leaks in the fuel lines or a faulty fuel pump.

By following these steps and taking necessary precautions, you can successfully change a fuel filter on your diesel forklift and ensure its continued performance.
