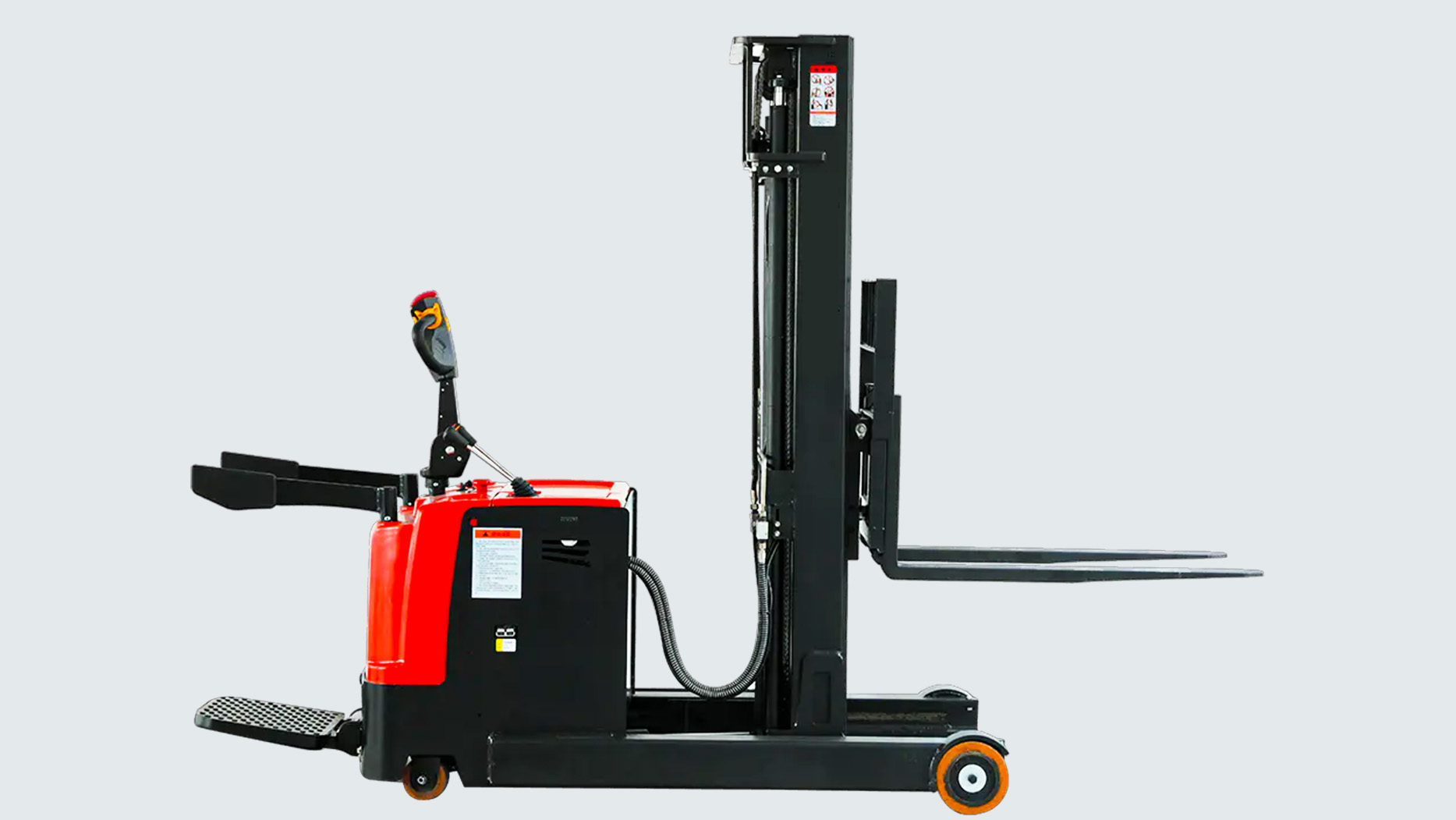

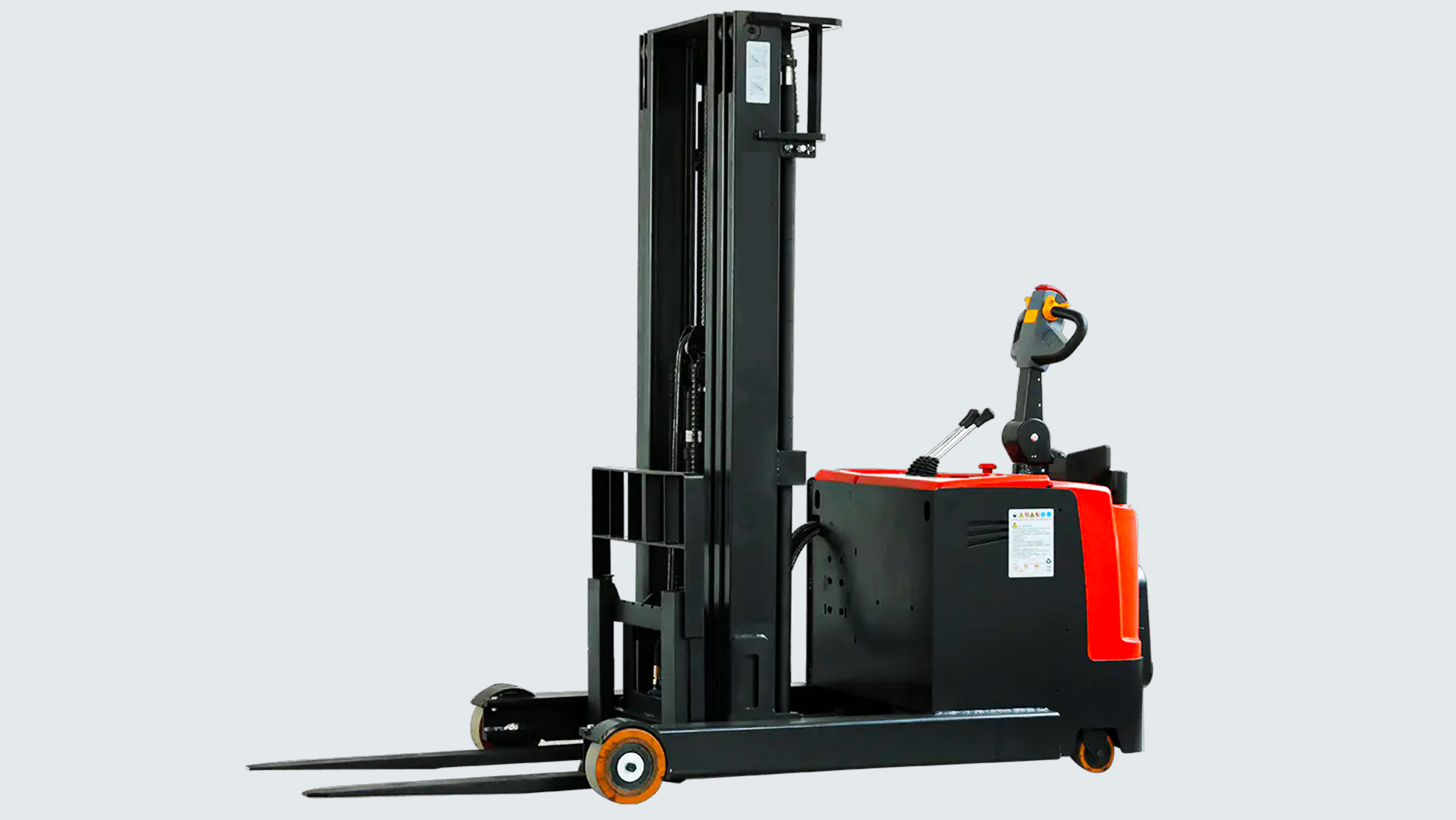

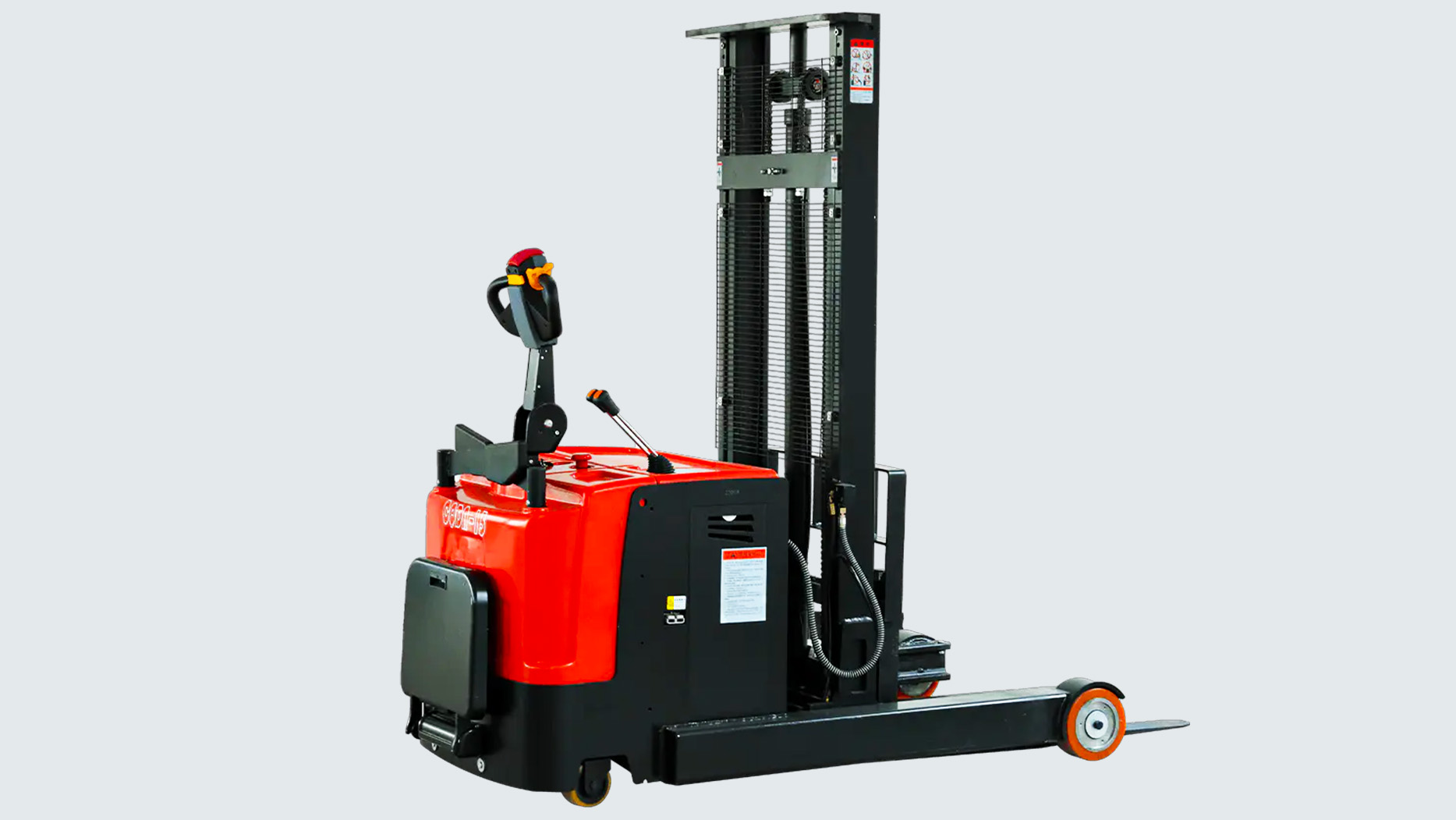

Electric stackers are indispensable material handling equipment, particularly in warehouses and distribution centers, where space optimization and efficient vertical movement are paramount. These machines offer a versatile and environmentally friendly alternative to traditional forklifts for specific applications. This article provides a technical breakdown of how electric stackers operate, exploring their key components, functionalities, and operational principles.
Core Components and Their Functions
Electric stackers are comprised of several key components that work in tandem to facilitate lifting, transporting, and stacking materials.
Chassis and Mast:
Chassis: The chassis forms the structural foundation of the stacker, housing the battery, drive motor, control systems, and operator platform (for ride-on models). It's designed for stability and maneuverability in confined spaces.
Mast: The mast is a vertical structure that supports the forks or platform. It's typically constructed from high-strength steel and designed to withstand the stresses of lifting heavy loads. The mast can be single, duplex (two-stage), or triplex (three-stage), depending on the required lifting height.
Drive System:
Drive Motor: An electric motor powers the drive wheels, providing the stacker's forward and reverse motion. The motor's power output determines the stacker's travel speed and load-carrying capacity.
Drive Wheels: The drive wheels are typically made of polyurethane or rubber, providing traction and smooth movement on various floor surfaces.
Steering System: The steering system allows the operator to control the stacker's direction. Electric stackers typically employ electric power steering for precise and effortless maneuvering.
Lifting System:
Lift Motor: A separate electric motor powers the hydraulic pump, which generates the hydraulic pressure required to lift the forks or platform.
Hydraulic Pump: The hydraulic pump pressurizes hydraulic fluid, which is then directed to the lift cylinder.
Lift Cylinder: The lift cylinder is a hydraulic actuator that extends to raise the mast and forks or platform.
Forks or Platform: The forks or platform are the load-carrying attachments. Forks are used for handling palletized loads, while platforms are used for handling non-palletized or irregularly shaped items.
Battery and Electrical System:
Battery: The battery provides the electrical power for the drive and lift motors. Electric stackers typically use lead-acid or lithium-ion batteries. The battery's capacity determines the stacker's operating time between charges.
Controller: The controller is the electronic brain of the stacker, managing the power flow to the motors and controlling the stacker's various functions.
Wiring and Connectors: The wiring and connectors transmit electrical power and signals throughout the stacker.
Control System:
Operator Controls: The operator controls include a throttle, steering controls, lift/lower levers, and other function-specific controls.
Sensors: Sensors provide feedback to the controller, monitoring the stacker's performance and ensuring safe operation. Examples include lift height sensors, tilt sensors, and overload sensors.
Display and Diagnostics: Some electric stackers are equipped with a display that provides information on battery charge, operating status, and diagnostics.
Operational Principles
The operation of an electric stacker involves a series of coordinated actions involving the drive, lift, and control systems.
Drive System Operation:
When the operator actuates the throttle, the controller signals the drive motor to rotate.
The drive motor's rotation is transmitted to the drive wheels, propelling the stacker forward or backward.
The steering system allows the operator to change the direction of the drive wheels, enabling precise maneuvering.
Lift System Operation:
When the operator actuates the lift lever, the controller signals the lift motor to activate the hydraulic pump.
The hydraulic pump pressurizes hydraulic fluid, which is directed to the lift cylinder.
The lift cylinder extends, raising the mast and forks or platform.
Lift height sensors provide feedback to the controller, allowing for precise positioning of the forks or platform.
To lower the load, the operator actuates the lowering lever, which releases hydraulic fluid from the lift cylinder, allowing the mast and forks or platform to descend.
Control System Functionality:
The controller monitors the stacker's performance and ensures safe operation.
Overload sensors prevent the stacker from lifting loads that exceed its rated capacity.
Tilt sensors maintain the stability of the load.
The controller also manages the battery's charge and protects against overcharging and deep discharge.
Regenerative braking. When the stacker decelerates or the direction of travel changes, the drive motor acts as a generator, converting kinetic energy back into electrical energy, which is fed back into the battery. This system increases the stacker's energy efficiency.
Variations and Specializations
Electric stackers come in various configurations to suit different applications:
Walkie Stackers: These are pedestrian-operated stackers, ideal for use in tight spaces.
Ride-On Stackers: These stackers have an operator platform, allowing for faster travel over longer distances.
Reach Stackers: These stackers have a telescoping mast, allowing for extended reach and stacking in deep racks.
Straddle Stackers: These stackers have straddle legs that support the load, providing increased stability.
Advantages of Electric Stackers
Electric stackers offer several advantages over internal combustion engine forklifts:
Zero Emissions: Electric stackers produce no exhaust emissions, making them ideal for indoor use.
Quiet Operation: Electric motors operate quietly, reducing noise pollution.
Low Maintenance: Electric stackers have fewer moving parts than internal combustion engine forklifts, resulting in lower maintenance costs.
Energy Efficiency: Electric stackers are more energy-efficient than internal combustion engine forklifts.
Maneuverability: Electric stackers are typically more compact and maneuverable than internal combustion engine forklifts.
Technological Advancements
Advancements in battery technology, motor control systems, and sensors are continually improving the performance and efficiency of electric stackers. Lithium-ion batteries offer faster charging times, longer operating times, and a longer service life compared to traditional lead-acid batteries. Advanced motor control systems improve energy efficiency and precision. Sensor technology enhances safety and enables automated functions.
Conclusion
Electric stackers provide a reliable and efficient solution for vertical material handling applications. Understanding their operational principles and core components is crucial for safe and productive operation. By embracing technological advancements and adhering to proper maintenance procedures, users can maximize the benefits of these versatile machines.
