How a Backhoe Works

A backhoe, a versatile piece of construction equipment, is a powerful tool that can perform a wide range of tasks. By understanding its basic components and how they work together, operators can maximize its efficiency and safety.

The Hydraulic System: The Powerhouse

At the heart of a backhoe lies its hydraulic system. This system uses pressurized fluid to generate force and motion. A hydraulic pump draws fluid from a reservoir and pressurizes it. This pressurized fluid is then directed to hydraulic cylinders, which convert fluid pressure into mechanical force. Control valves regulate the flow of fluid to different cylinders, allowing for precise control of the machine's movements.

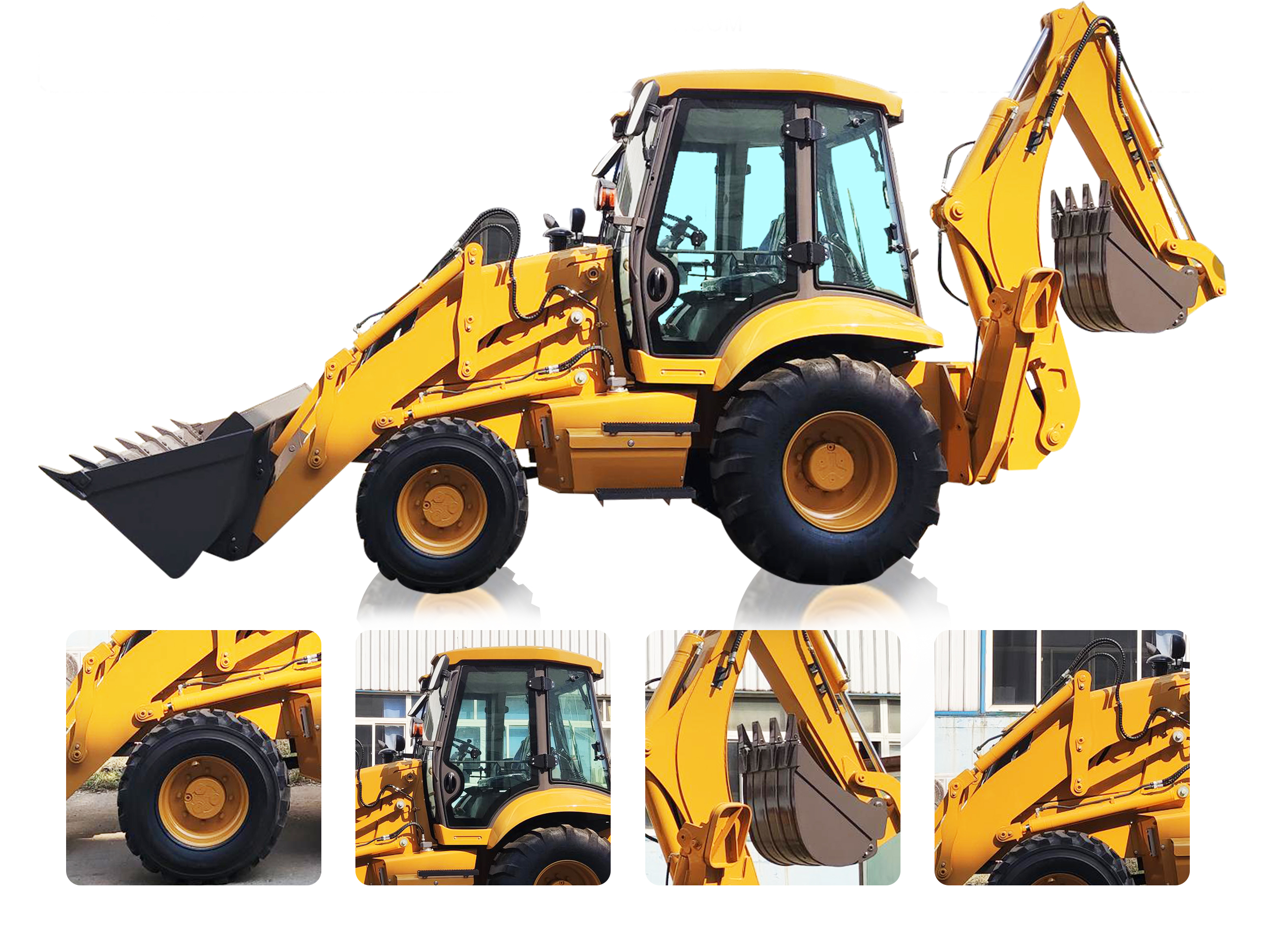

The Main Components of a Backhoe

1. Boom: The main arm that supports the dipper stick and bucket. It can be raised, lowered, and extended to reach different areas.
2. Dipper Stick: Attached to the boom, it holds the bucket and can be raised, lowered, and swung.
3. Bucket: The primary tool for digging, loading, and grading. It can be equipped with different types of teeth for various materials.
4. Swing Mechanism: Allows the entire upper structure to rotate, enabling the machine to work in a full 360-degree circle.
5. Undercarriage: The tracks or wheels that support the machine and provide mobility.

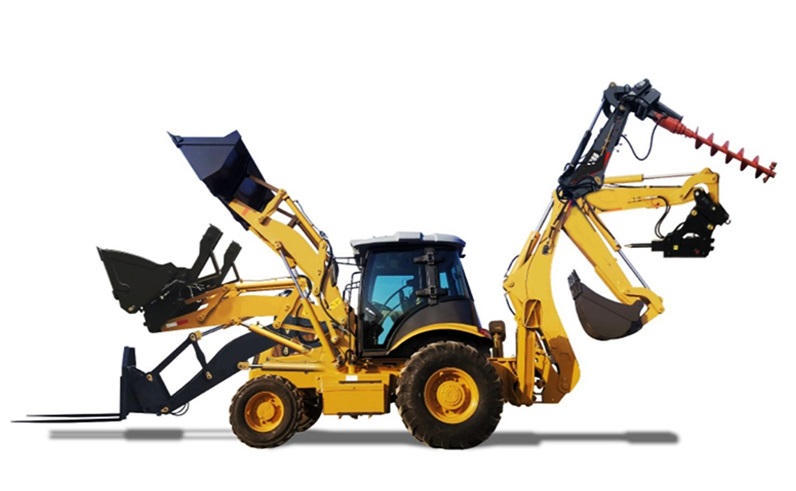

A backhoe's capabilities can be significantly expanded by attaching different tools to it. These attachments allow the machine to perform a wide range of tasks, from digging trenches to breaking concrete.

Front-End Attachments: Expanding the Capabilities

• Bucket: The standard attachment, used for digging trenches, loading materials, and grading surfaces.
• Ripper: A heavy-duty tooth attached to the bucket, designed to break up hard, compacted soil or asphalt.
• Auger: A screw-like attachment for drilling holes in the ground. It's commonly used for planting trees, installing fence posts, and drilling water wells.
• Hydraulic Hammer: A powerful tool for breaking concrete, rock, and other hard materials. It's often used in demolition and road construction.
• Thumb: A mechanical device attached to the bucket to help grip and lift materials, particularly those that are irregularly shaped or difficult to handle.

Back-End Attachments: Additional Functionality

• Backhoe: The primary attachment on the rear of the machine, used for digging trenches, excavating foundations, and other tasks.
• Forklift: For lifting and transporting pallets and other materials.
• Crane Boom: A long, articulated arm for lifting heavy loads, such as large equipment or structural components.
• Hydraulic Breaker: Similar to the front-end hydraulic hammer, it's used for demolition and breaking up concrete.
• Hydraulic Clamp: Used to grip and lift large objects, such as steel beams or concrete slabs.

A backhoe is a powerful and versatile machine that can handle a wide range of tasks. With its strong arm, digging bucket, and various attachments, it's a workhorse on construction sites. From digging trenches to demolishing buildings, a backhoe can do it all.
