A Deep Dive into Capacity and Factors
Forklifts are indispensable in modern material handling, but understanding their true lifting capabilities goes beyond a simple weight figure. This article delves into the complexities of forklift capacity, exploring key factors that influence how much a forklift can safely and effectively lift.
1. Rated Capacity: The Foundation
Definition: The rated capacity of a forklift is the maximum weight it can lift at a specific load center.
Load Center: This crucial parameter represents the horizontal distance from the vertical face of the forks to the center of gravity of the load.
A shorter load center generally allows for a higher lifting capacity.
Data Plate: The rated capacity and load center are clearly marked on the forklift's data plate, a mandatory requirement for all forklifts.
2. Factors Influencing Rated Capacity
Forklift Class: Different forklift classes have varying lifting capacities:

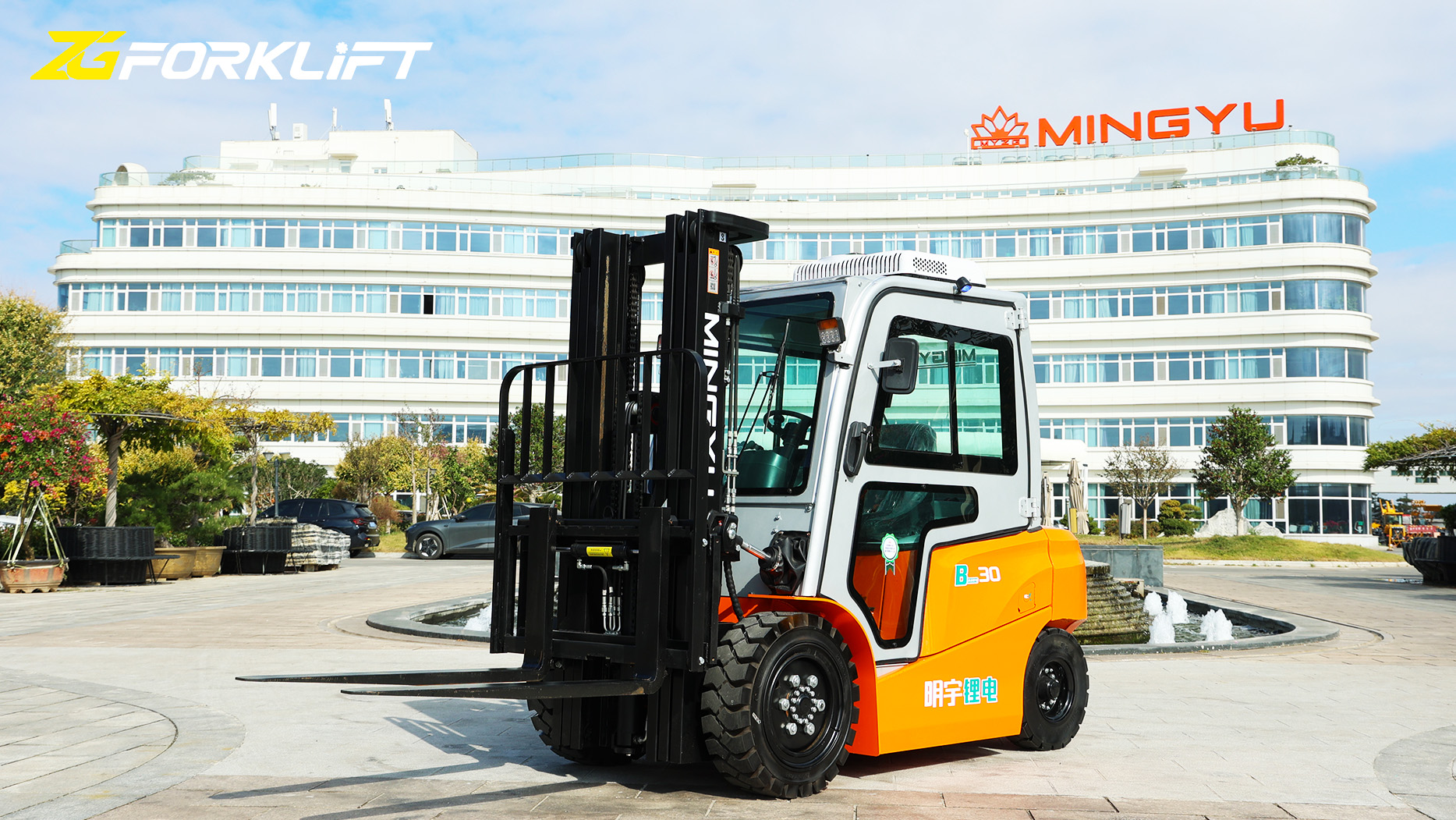

Class I: Electric Motor Trucks (Rider and Stand-Up)
Class II: Electric forklift Trucks
Class III: Electric Motor Trucks (Walkie and Pallet Trucks)
Class IV: Internal Combustion Engine Counterbalanced Trucks (Cushion Tires)
Class V: LPG Forklift trucks

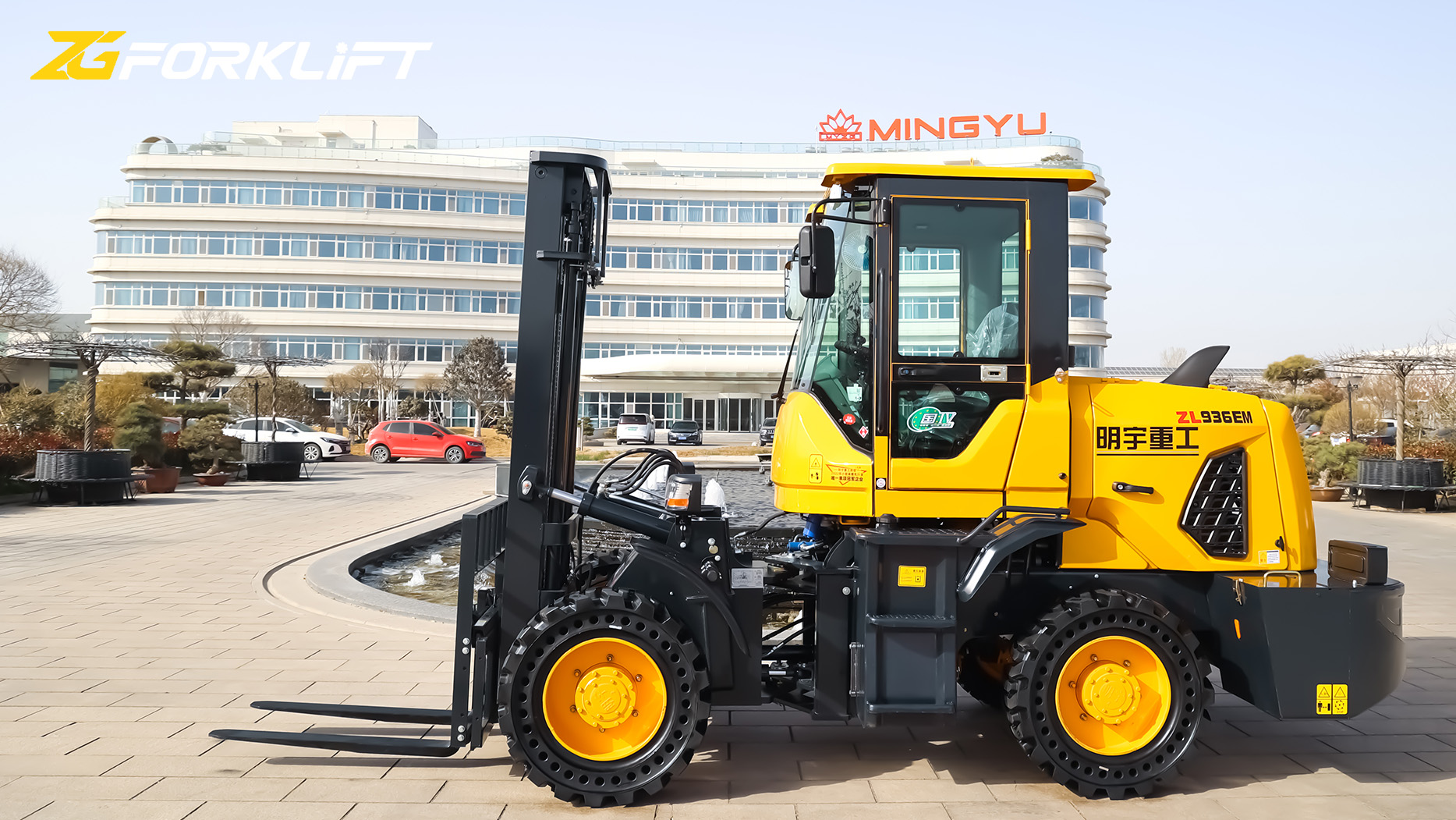

Class VI: Rough Terrain Forklifts
Class VII: Tow Tractors
Mast Type:
Simplex: Simplest mast design, typically found on smaller forklifts.
Duplex: Offers greater lift height than simplex.
Triplex: Provides the highest lift heights.
Quadruplex: Specialized for very high lift requirements.
Mast height directly impacts lifting capacity. Higher lifts generally result in lower capacities.
Forklift Configuration:

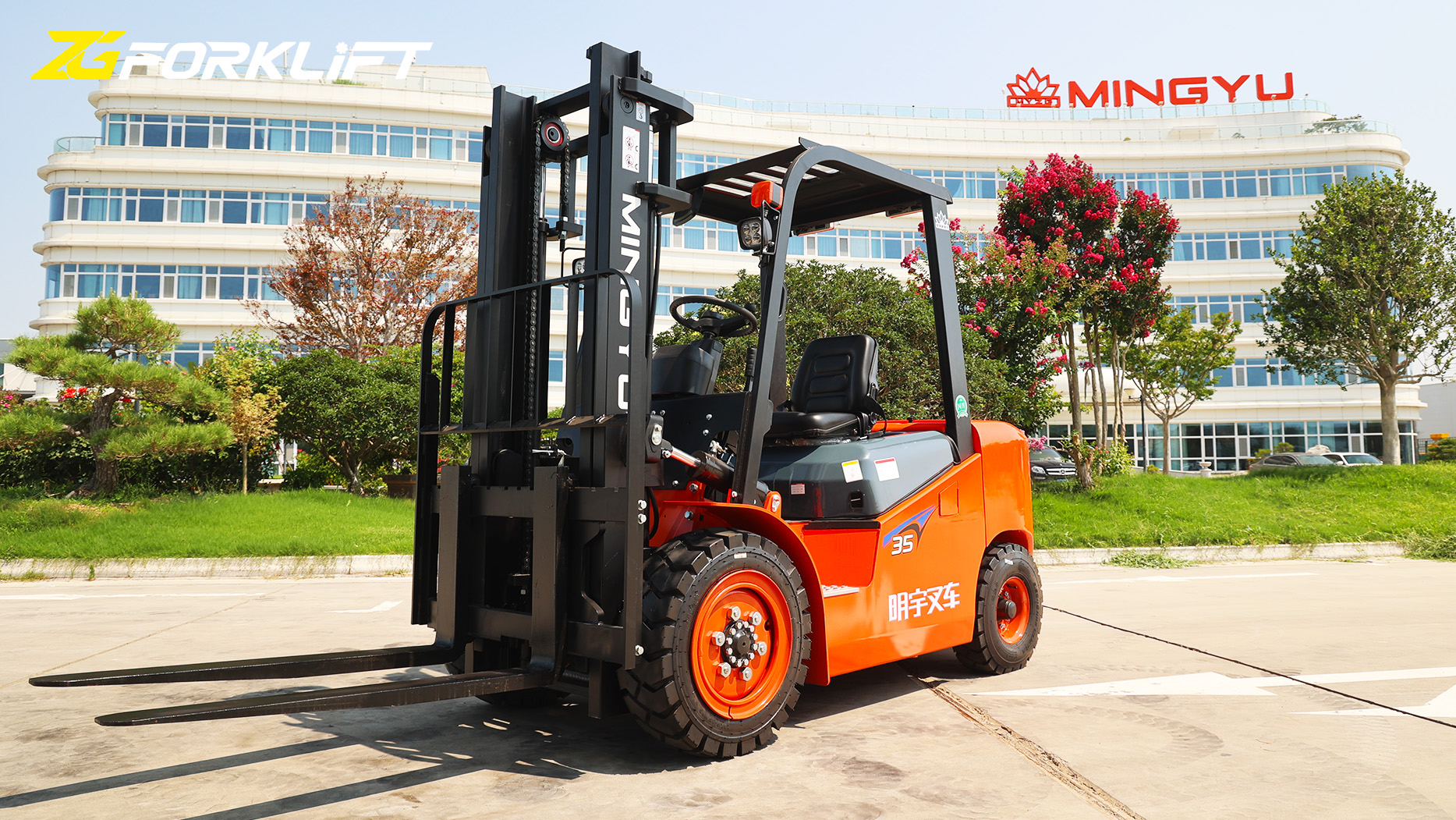

Counterbalance: The most common type, relying on counterweights for stability.
Reach Trucks: Specialized for narrow aisles, with extended reach capabilities.
Order Pickers: Designed for high-level order picking in warehouses.
Each configuration has specific design limitations that affect lifting capacity.
3. Load Center: A Critical Consideration
Center of Gravity: The point where the weight of the load is evenly distributed.
Load Distribution: Unevenly distributed loads shift the center of gravity, significantly impacting lifting capacity.
Load Length: Longer loads increase the load center, reducing the allowable weight.
Load Shape: Irregularly shaped loads can make determining the center of gravity challenging.
4. Beyond Rated Capacity:
De-rating: Forklift capacity decreases as the load is lifted higher. This is known as de-rating.
Tilt: Tilting the mast forward or backward also affects capacity.
Tire Condition: Poor tire condition can reduce stability and lifting capacity.
Ground Conditions: Uneven or soft ground can compromise stability.
Operator Skill: Proper operator training is crucial for safe and efficient operation, including understanding load limits.
5. Calculating Safe Load Limits
Load Capacity Charts: Most forklifts come with load capacity charts that provide guidance on safe lifting limits for different load centers and lift heights.
Load Moment Indicator (LMI): Advanced LMIs continuously monitor load weight, center of gravity, and other factors to provide real-time feedback to the operator, preventing overloading.
6. Importance of Safe Load Practices
Preventing Accidents: Overloading forklifts can lead to:
Tip-overs: The most serious risk, potentially causing severe injuries or fatalities.
Structural Damage: To the forklift itself, leading to costly repairs or even equipment failure.
Load Damage: Dropped or damaged goods can result in significant financial losses.
Ensuring Operational Efficiency: Proper load management optimizes forklift performance and minimizes downtime.
Meeting Regulatory Requirements: OSHA and other regulatory bodies have strict guidelines regarding forklift operation and load capacity.
7. Choosing the Right Forklift
Thorough Needs Assessment:
Analyze the specific material handling requirements of the application.
Consider load weights, dimensions, and lift heights.
Assess the operating environment (indoor/outdoor, aisle widths, ground conditions).
Consult with Experts: Seek advice from forklift dealers and manufacturers to select the most suitable model for your needs.
8. Ongoing Maintenance and Inspections
Regular Maintenance:
Preventative maintenance programs are essential to ensure forklift safety and reliability.
This includes regular inspections of key components, such as tires, brakes, and hydraulic systems.
