ZGFORKLIFT / MYZG CPD40 4 Ton Lithium Electric Forklift

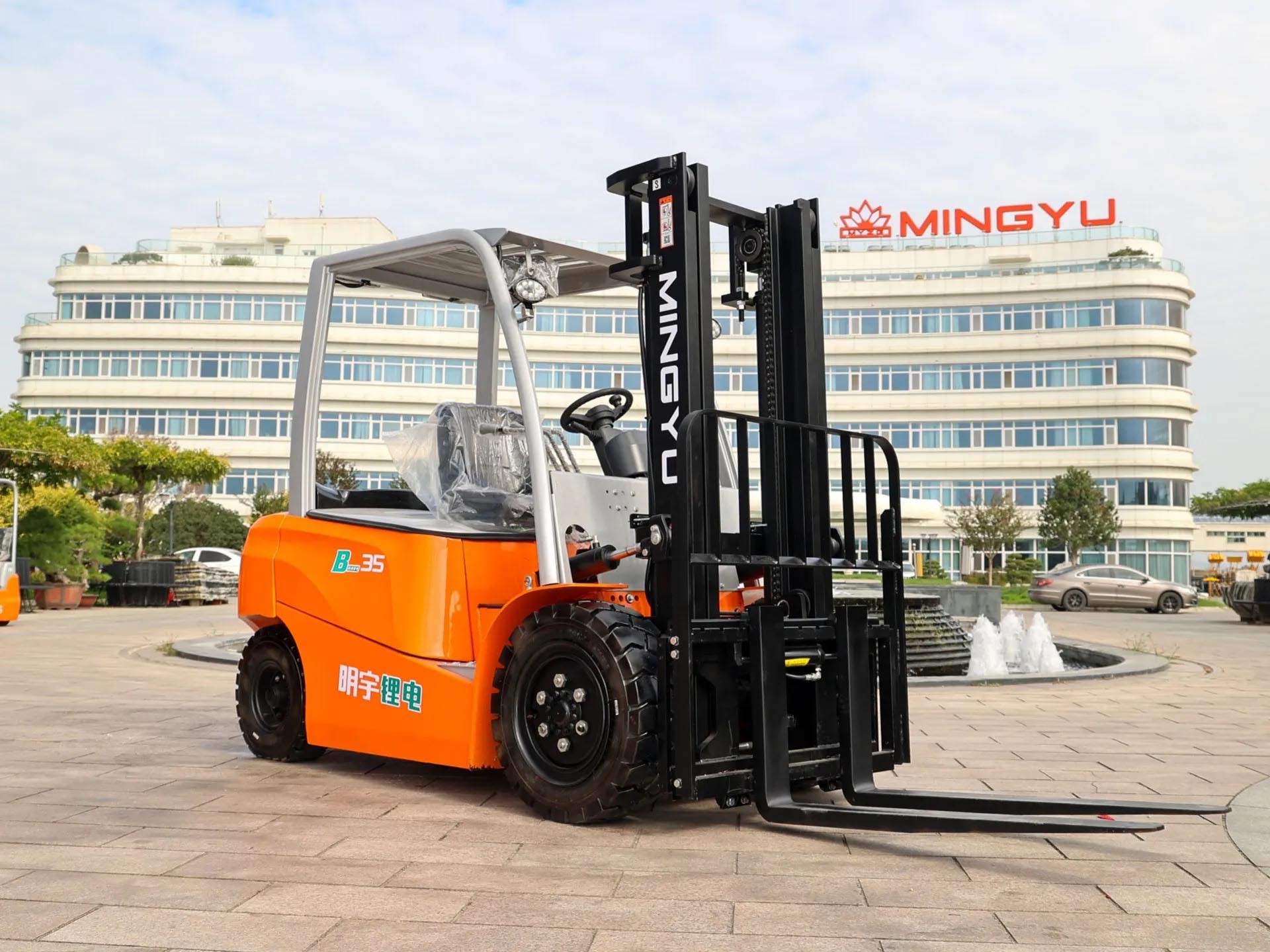

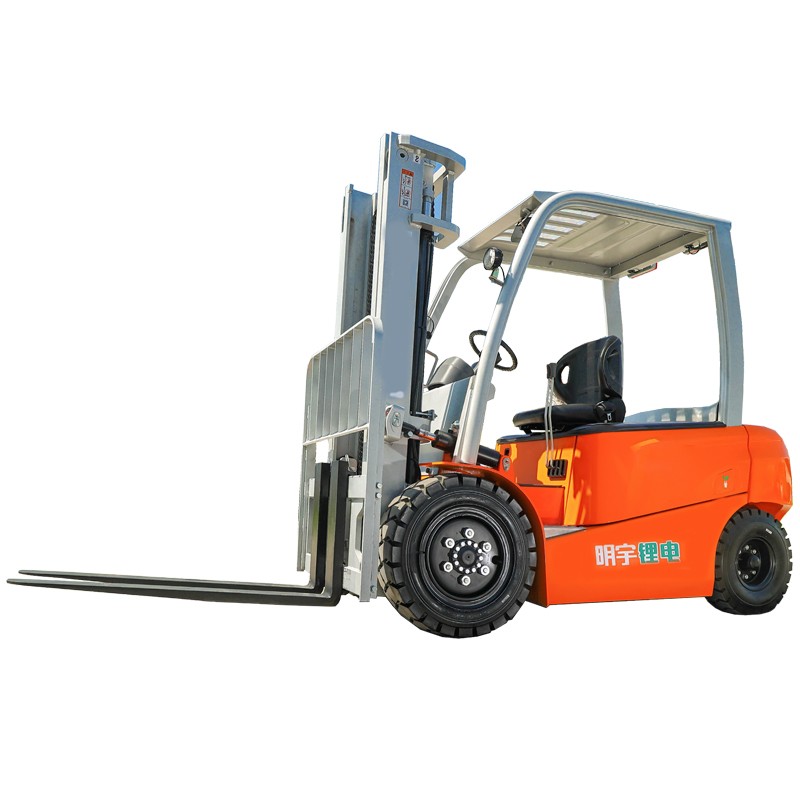

CPD40 4 Ton Lithium Electric Forklift

ZGFORKLIFT / MYZG — ZGFORKLIFT / MYZG CPD40 4000 kg lithium electric forklift from Shandong Zhuogong Machinery equipment Co.,Ltd, engineered for warehouses, factories, logistics centers and heavy material handling.

The ZGFORKLIFT / MYZG CPD40 is a 4 ton lithium electric counterbalance forklift for pallet transport, stacking, truck loading and production supply. Its 4000 kg rated capacity and 500 mm load center suit warehouses, factories, distribution centers, ports and controlled outdoor yards when the truck is operated within the approved load chart.

4000 kg lifting capacity

Want to maintain an all-electric fleet, but need a rugged, outdoor workhorse? Look no further than ZGFORKLIFT / MYZG’s 150V Electric Pneumatic Forklift. These electric powerhouses combine the power, durability, and reliability of internal combustion trucks with the ergonomics and speed of electric forklifts. With a capacity ranging 4000 kg. , these machines are ready to tackle any challenge, whether you’re operating indoors or outdoors.

Product Feature

Powerful, Productive, & Environmentally Friendly

At ZGFORKLIFT / MYZG, we understand that you need a forklift that delivers the power and durability to get the job done. Our 150V Electric Pneumatic Forklift is a beast and is designed to tackle all of your material handling needs. Rugged enough to perform similar to its internal combustion counterparts while running off a battery, ZGFORKLIFT / MYZG’s 80V Electric Pneumatic Forklift maintains clean air and low maintenance but supports traditional IC applications.

This versatile lift delivers top travel speeds with a powerfully efficient AC Drive Motor, which provides longer run times aided by regenerative braking, giving you the power to get more done quickly. When you need raw power to tackle outdoor challenges and efficient, environmentally friendly operation, look no further than ZGFORKLIFT / MYZG’s 150V Electric Pneumatic Forklift.

Advanced Technology at Your Fingertips
Knowledge and information power your productivity.

ZGFORKLIFT / MYZG’s 150V Electric Pneumatic Forklifts come equipped with a multifunction display that provides key information such as an operating time and battery capacity warning. Standard speed control and performance modes allow selection of power consumption, acceleration, and regenerative braking that allow you to maximize truck performance to your operation while balancing performance and operating time, leading to improved efficiency. Built-in diagnostics with error code displays allow troubleshooting through the display to quickly diagnose any issues and increase uptime.

Model		B40
Power Type		accumulator
rated load lifting capacity		4000kg
Load centre distance		500mm
driving style		Sit down
length	with fork	3957mm
	without fork	2882mm
wideth		1232mm
height	Do not raise the mast height	2062mm
	Overhead guard height	2165mm
	Max height at working	4183mm
Distance from seat surface to top guard frame		980mm
wheel base		1980mm
front overhang		455mm
rear overhang		464mm
front wheel track		1000.5mm
rear wheel track		988mm
minimum ground clearance		160mm
Standard lifting height		3000mm
free lifting height		45mm
Fork adjustment range		260-1100mm
minimum turning radius		2650mm
Minimum right-angle channel width(1100*1100 pallets)		4405mm
Gantry angle (front/rear)		6/12°
Maximum lifting speed without load		380mm/s
Maximum lifting speed with full load		300mm/s
Maximum operating speed without load		13Km/h
Maximum operating speed with full load		12Km/h
Max gradeability with full loading		15%
Weight unladen		4820kg
Number of wheels = driving wheels/steering wheels		2/2
Tyre type (front/rear)		Pneumatic tyre/pneumatic tyre
tyre size(front)		28x9-15
tyre size(rear)		6.50-10
Brake/driving brake		Foot Brake
parking brake		Hand Brake
Battery voltage/capacity		154V/150AH
drive motor power		13.1KW
Oil pump motor power		16.5KW

Tight turning radius suitable for narrow aisle applications.	Dual Front AC Driving Motors，ZGFORKLIFT / MYZG seat	Panoramic Rearview Mirror

STANDARD FEATURES

Designed for the Operator

Designed with the operator in mind, the operator compartment of the 150V Electric Pneumatic comes equipped with features to help them do their job quickly and efficiently. Overall noise and vibration levels are also much lower, resulting in stress and fatigue reduction. The full floating cabin and full-suspension seat significantly reduces shock and vibration for productive and comfortable operation.*

Electric Pneumatic Ergonomics

ZGFORKLIFT / MYZG’s 150V Electric Pneumatic Forklift comes with several features to assist operators in their working environment. The mini-lever controls and armrest provide a more ergonomic operation to lessen fatigue and increase productivity. The cockpit-style operator’s compartment features a low-height dashboard, tilt, and telescoping steering column with electric power steering for excellent visibility, legroom, and comfort. More ergonomic features include:*

ORS (Operator Restraint System) Full-Suspension Vinyl Seat
Retractable Seat Belt
Heavy-Duty, non-slip floor mat
Memory tilt steering column

According to demands, can be matched with different accessories

In the realm of industrial efficiency, the MYZG CPD40-B electric forklift stands tall as a beacon of innovation and reliability. Engineered to redefine standards, this forklift is the epitome of precision and performance in material handling.

1. Cutting-Edge Technology

At its core, the MYZG CPD40-B integrates cutting-edge technology that optimizes every aspect of operation. From its advanced electric motor to its intelligent control systems, this forklift ensures seamless functionality, reducing downtime and enhancing productivity.

2. Eco-Friendly Operation

Gone are the days of emissions and noise pollution. The MYZG CPD40-B embraces eco-friendly practices with its electric powertrain, making it a responsible choice for sustainable operations. It not only saves costs but also reduces your carbon footprint.

3. Robust Design, Reliable Performance

Built to endure the rigors of industrial environments, the CPD40-B boasts a robust design that guarantees reliability under pressure. Whether indoors or outdoors, in warehouses or distribution centers, this forklift delivers consistent performance without compromise.

4. Operator-Focused Ergonomics

Prioritizing operator comfort and safety, the CPD40-B features ergonomic design elements that enhance user experience. From adjustable seating to intuitive controls, every detail is crafted to ensure efficiency and minimize fatigue during long shifts.

5. Versatility in Application

Versatility is key in modern logistics. The CPD40-B excels in diverse applications, handling a wide range of loads with precision and ease. Whether stacking pallets or navigating tight spaces, its maneuverability and agility shine through.

6. Comprehensive Support and Service

Choosing the MYZG CPD40-B means choosing a partner in success. With a commitment to customer satisfaction, MYZG offers comprehensive support and service, ensuring that your operations run smoothly and your investment is maximized.

Conclusion

In conclusion, the MYZG CPD40-B electric forklift is not just a machine; it's a strategic investment in efficiency, sustainability, and operational excellence. Experience the future of material handling with MYZG, where innovation meets reliability.

The documented CPD40 configuration uses a 154 V / 150 Ah lithium battery, a 13.1 kW traction motor and a 16.5 kW hydraulic pump motor. A standard 3000 mm lift height supports common industrial work, while mast, fork, pneumatic tyre and attachment options can be discussed for a confirmed application. Runtime and charging depend on load, travel, lift frequency, floor, slope, temperature, charger and duty cycle.

Before ordering a CPD40 electric forklift, provide pallet size, maximum load, lift height, aisle width, door height, ramps, working hours, indoor or outdoor conditions, electrical supply and destination port. Use trained operators, inspect forks, mast, chains, tyres, brakes, steering, alarms, battery and charger daily, and follow the approved operation and maintenance manual.
