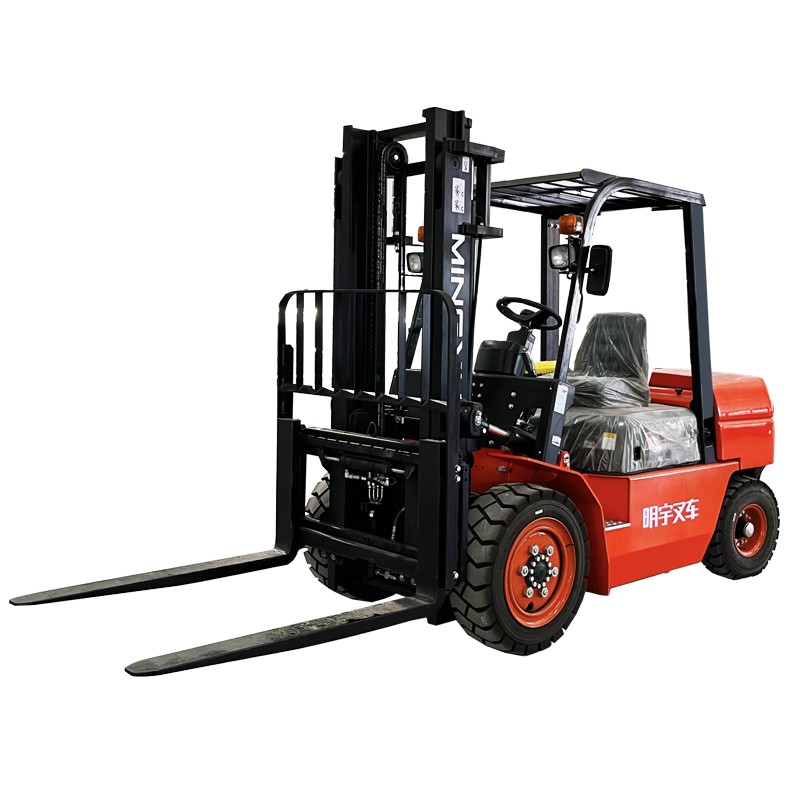

CPC40 diesel forklift
Product Feature
CPC40 is a special equipment for material handling and stacking, with a maximum lifting capacity of 4T and a maximum lifting height of 3m, which can also be increased. The product is flexible, efficient and widely used
·Flexible and efficient operation
·Safe and reliable, easy to use
·Economic and environmental protection, cost saving
·People-oriented, comfortable driving
Parameter
| Model | CPC(D)40 | |
| Power Type | diesel | |
| rated load lifting capacity | 4000kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 4128mm |
| without fork | 3008mm | |
| wideth | 1228mm | |
| height | Do not raise the mast height | 2204mm |
| Overhead guard height | 2100mm | |
| Max height at working | 4262mm | |
| Distance from seat surface to top guard frame | 970mm | |
| wheel base | 1710mm | |
| front overhang | 457mm | |
| rear overhang | 550mm | |
| front wheel track | 1000mm | |
| rear wheel track | 980mm | |
| minimum ground clearance | 165mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 70mm | |
| Fork adjustment range | 260-1100mm | |
| minimum turning radius | 2550mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4300mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 400mm/s | |
| Maximum lifting speed with full load | 360mm/s | |
| Maximum operating speed without load | 20Km/h | |
| Maximum operating speed with full load | 20Km/h | |
| Max gradeability with full loading | 20% | |
| Weight unladen | 4900kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 28x9-15 | |
| tyre size(rear) | 6.50-10 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Engine |
quanchai/xinchai/
Mitsbishi / Isuzu/Cummins |
|
| rated power | 39/40kw | |
| Oil pump motor power | 2500r/min | |
| fork length | 1220mm | |
Appearance
With the newest appearance design method, the whole forklift has smooth profile lines, presents the dynamic effect, and meets the newest appearance design fashion.
Safety
With the long axle base design, the whole forklift has better longitudinal stability. At the same lifting height, compared with the original forklifts, the lifting capacity is improved by great degree. Meanwhile, the rear axle load is reduced, and the life of the steering tyres is extended.
Comfortability
With the man-machine engineering technology same to that for R series, the space for legs and boarding is larger, the operating vision is extended. The operating comfortability is greatly improved, and the fatigue strength of the operator is reduced.
Reliability
With the thicker rear leg of the overhead guard, the engine air admission quantity is increased, the air admission resistance is reduced. The engine can conduct more sufficient combustion, and the engine life is extended.

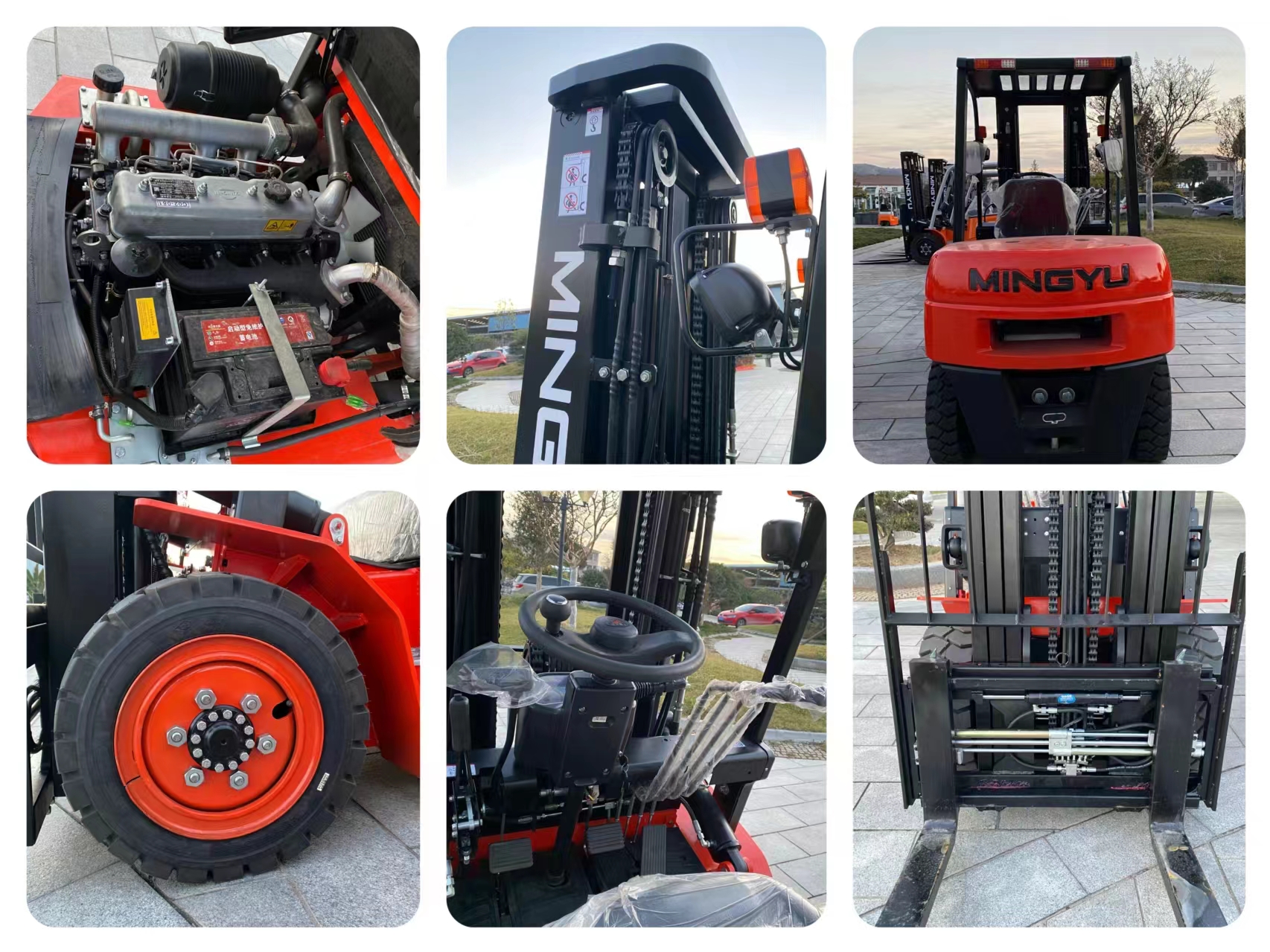

Detail
According to demands, can be matched with different accessories
