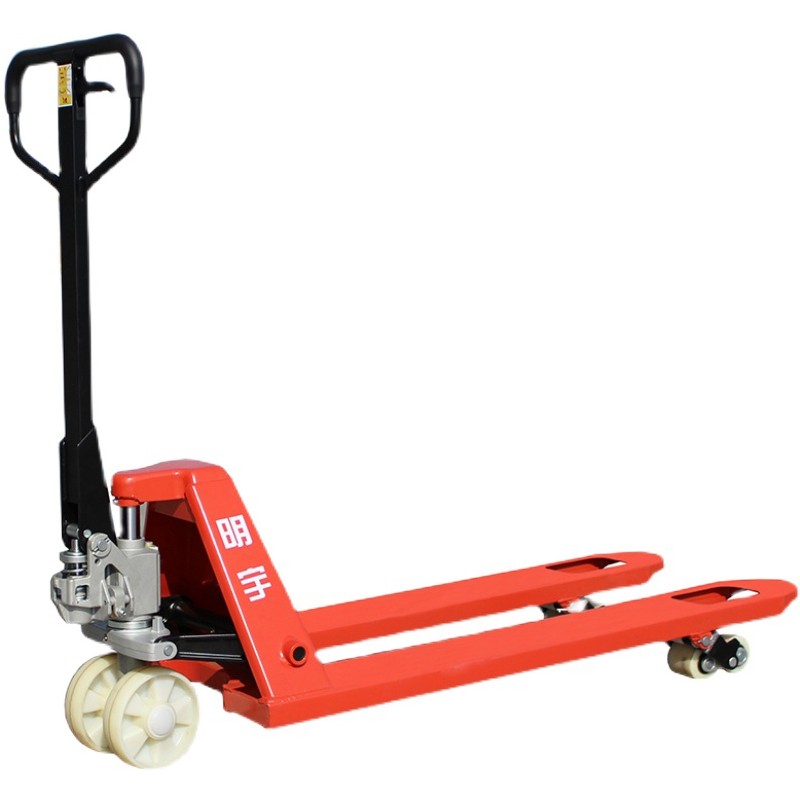

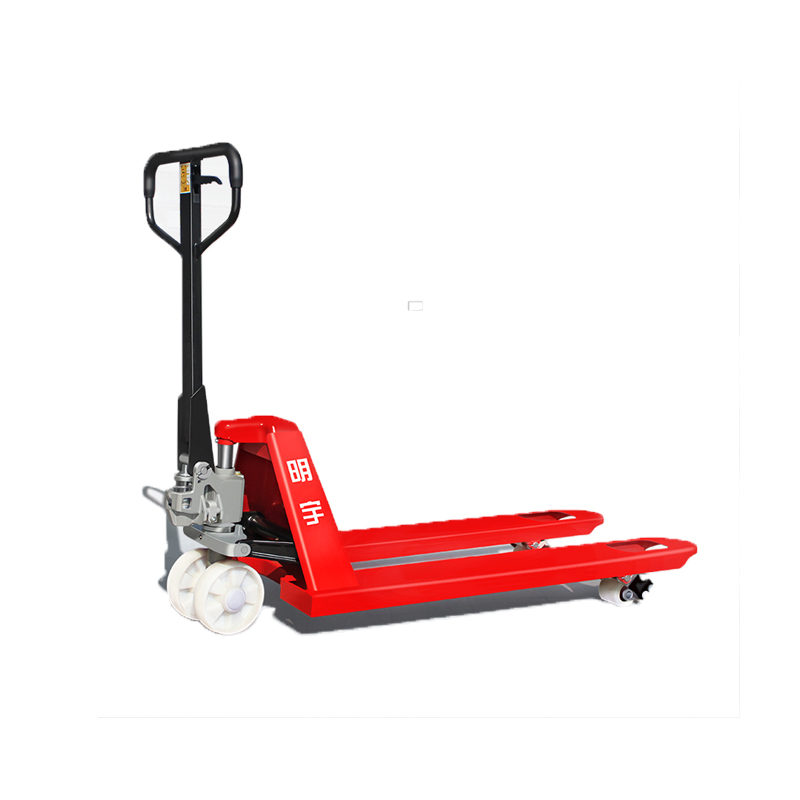

1.6-3T Hand Pallet Truck
THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY

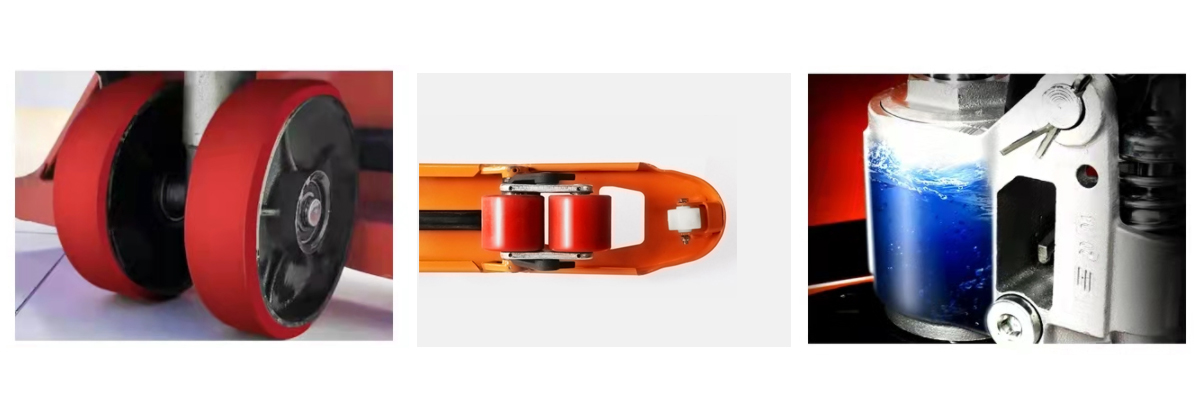

PRODUCT FEATURE
Small turning radius.
Built-in charger.
Easy maintenance.
Emergent reversing device.
2000/2500/3000KG
Top class range of pallet trucks with excellentdesigns.
Professional and ideal storage aid for all variety ofmanual transport tasks over short distances in storesand warehouses as well as factory plants
Top class range of pallet trucks with excellent designs
Professional and ideal storage aid for all variety of manual transport tasks overshort distances in stores and warehouse as well as factory plants.
Reliable, sturdy, torsion-resistant due to its extremely strong high quality steeprofile Germany standard WAGNER painting system ensures best powder coatingand painting quality
All pivots points are greased ensures excellent maneuverability with effortlesssteering The chromed bearing bushes and joints ensure quiet running propertiesand particularly long service life.
THE MAIN PARAMETER
| UNITS | DF1.68 | DF2.0 | DF2.5 | DF3.0 | AC2.5 | AC3.0 | |
| RATED LOAD CAPACITY | kg | 1680 | 2000 | 2500 | 3000 | 2500 | 3000 |
| FORK LOWING HEIGHT | mm | 75 | 75 | 75 | 75 | 85 | 85 |
| FORK LIFTING HEIGHT | mm | 195 | 95 | 195 | 195 | 200 | 200 |
| STEERING WHEEL | mm | 180*50 | 180*50 | 180*50 | 180*50 | 180*50 | 180*50 |
| BEARING WHEEL | mm | 74*55 | 74*55 | 74*70 | 74*70 | 80*70 | 80*70 |
| SINGLE FORK SIZE（WIDTH*THICKNESS) | mm | 150*50 | 150*50 | 160*60 | 160*60 | 160*60 | 160*60 |
| FORK OUTSIDE WIDTH | mm | 550 |
550
685
|
550
685
|
550
685
|
540
685
|
540
685
|
| FORK INSIDE WIDTH | mm | 250 |
250
385
|
230
365
|
230
365
|
220
365
|
220
365
|
| WEIGHT UNLADEN | mm | 1150 |
1150
1220
|
1150
1220
|
1150
1220
|
1150
1220
|
1150
1220
|
