Excavador cargador 388
Características del producto

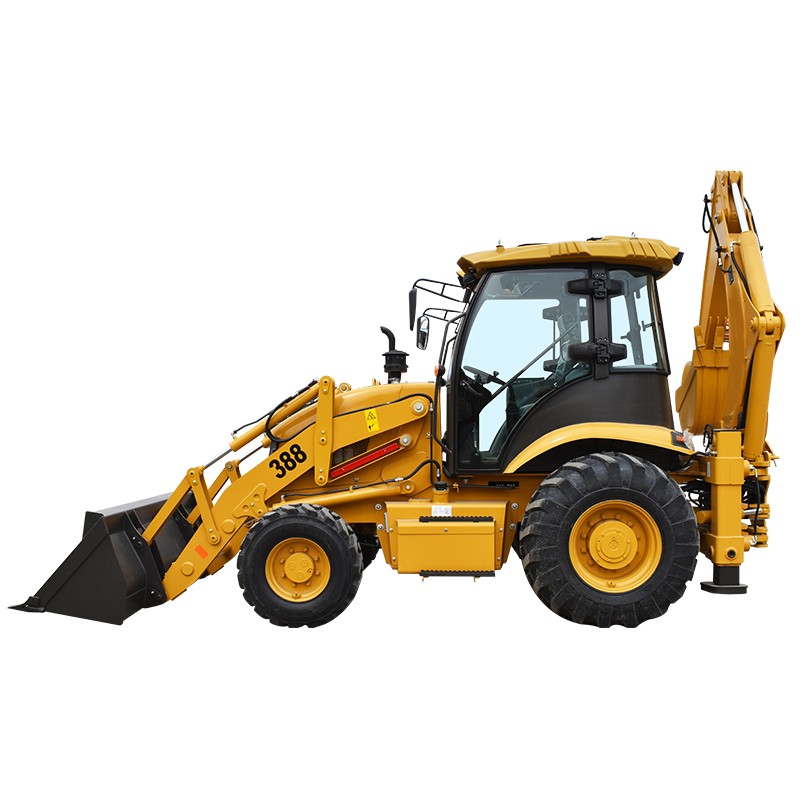

388 Excavador cargador
THE mingyu 388 backhoe is a compact machine that combines a low centre of gravity with good ground clearance for versatile performance.
La retroexcavadora mingyu 388 es una máquina compacta que combina un centro de gravedad bajo con una buena distancia al suelo para un rendimiento versátil.
Un motor de 75KW es perfectamente adecuado para este tamaño de retroexcavadora, proporcionando mucha potencia con una excelente economía de combustible.
A 75KW engine is perfectly suited to this size of backhoe loader, providing plenty of power with excellent fuel economy.
parámetro
Cargador de eje
Peso operativo total
8200KG
dimensions
6100×2365×3752mm
Base de rueda
2200mm
Altura del depósito del cubo
2742mm
Distancia de inmersión por cubo
925mm
Diámetro interior del cilindro * carrera
4-108×132
Min.Consumo de combustible
≤230g/km.h
Max.Torque
≥400N.M
El desplazamiento
4.837L
8/18.5t
Capacidad de retroexcav
0.3 m3
Capacidad de carga
1.0m3
Los neumáticos
14-17.5/19.5L-24
El impulso
PRODUCT FEATURE
(1)EFFICIENCY
The mingyu 388 is an entry-level backhoe loader that boasts ultimate efficiency courtesy of its frugal low-horsepower engine.
A 75kw diesel engine on the 388 backhoe loader combines excellent performance with optimised efficiency for this size of machine.
(2)COST OF OWNERSHIP
So that you can get the very most from your mingyu 388, it’s designed with long service intervals (400hrs).
Unlike on most tractor policies, MYZG Insurance covers every part of a backhoe loader like the 388.
You can trust a MYZG backhoe loader – the 388 is covered by a standard 1 year / 2000hr warranty.
We’ve fitted a water separator to the MYZG 388 backhoe. This increases fuel pump life and provides even greater reliability.
(3)QUALITY, RELIABILITY AND DURABILITY
To achieve the very highest levels of build quality, reliability and finish, we manufacture the 388backhoe using DEA, strain gauging, advanced in-house manufacturing processes, robot machining, precision paint technology and innovative assembly techniques.
Our durable loader arm design, meanwhile, has high breakout forces and lift capacity.
The 388 backhoe loader’s raised front and rear lights reduce the risk of damage and improve visibility.
Detail
About us
Las máquinas MYZG se exportan por todo el mundo, about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG tiene un servicio after-sales perfecto, and provide warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
